Manufacture |
Bently Nevada |
|
Model |
3500/92-04-01-00 |
| PN No. |
136180-01 |
|
Catalog |
3500 |
|
Description |
Communication Gateway module |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
24*2.4*9.91 (CM) |
| Weight | 0.44 kg |

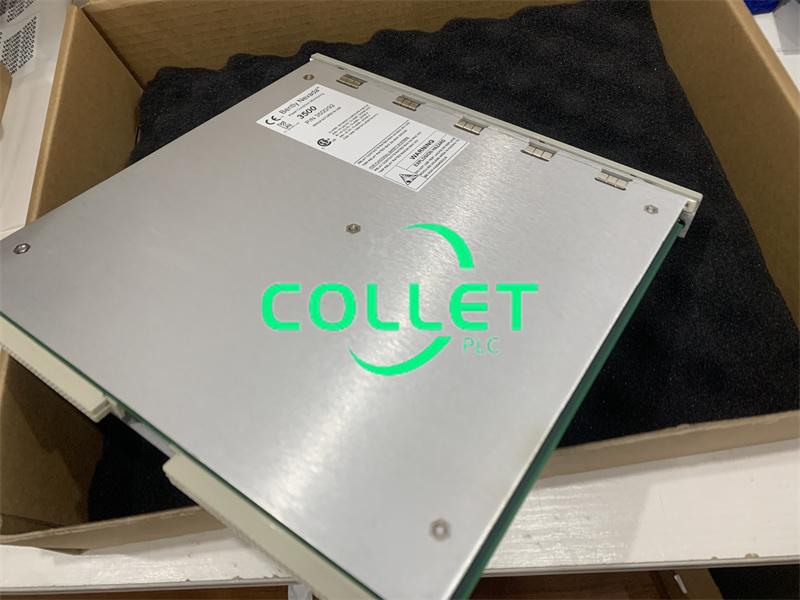

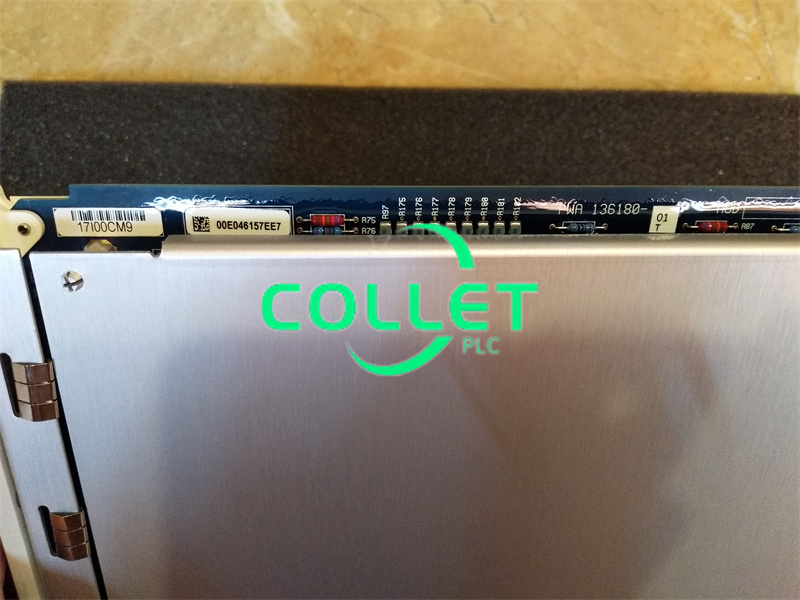

Description:
The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.
Supported protocols include:
Modicon Modbus protocol (via serial communications)
Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)
The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks.
The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.
Frequently Asked Questions:
1.What is Power Consumption of 3500/92-04-01-00 136180-01?
5.0 watts typical with ModbusRS232/ RS422 I/O Module
5.6 watts typical with Modbus RS485 I/O Module
2.What is LED Indicates of 3500/92-04-01-00 136180-01?
OK LED--Indicates when the 3500/92 is operating properly.
TX/RX LED--Indicates when the 3500/92 is communicating with other modules in the 3500 rack
3.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
3500/92-04-01-00 136180-01 Bently Nevada,Communication Gateway module PDF Datasheet
