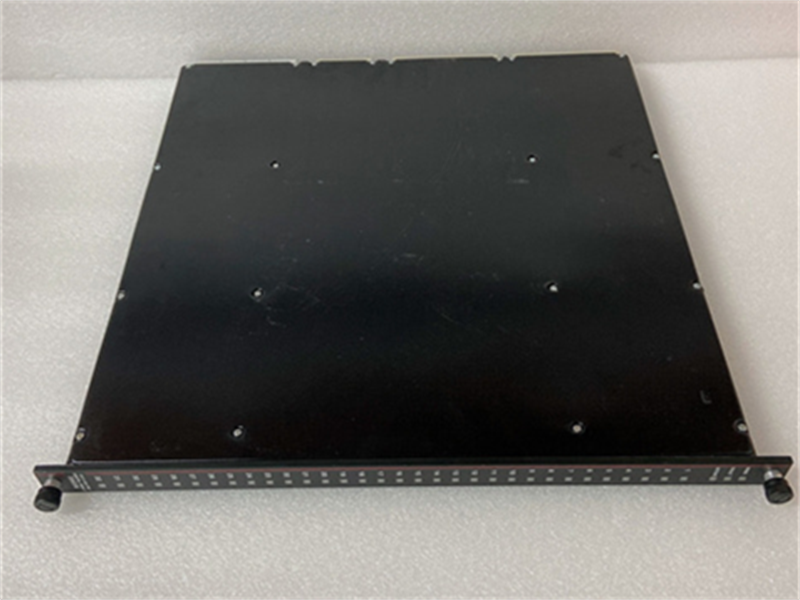

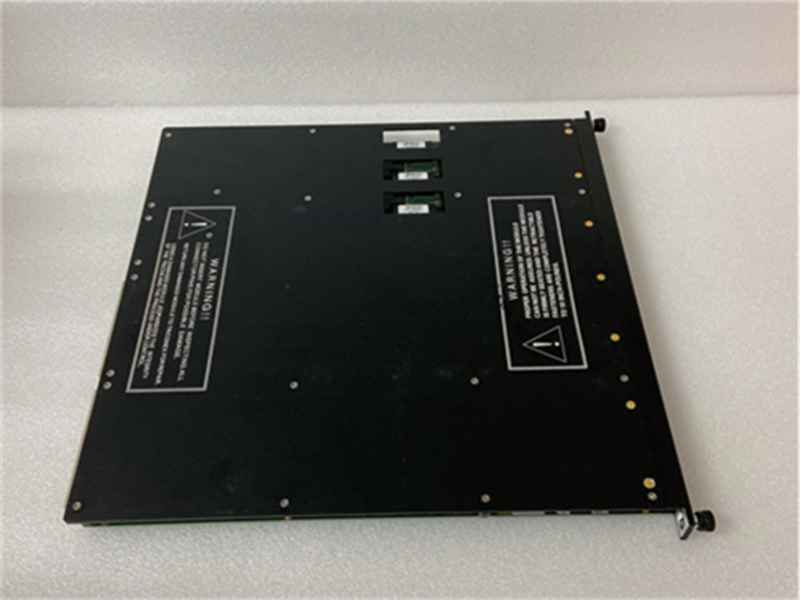

Manufacture |
TRICONEX |
|
Model |
3503E |
| PN No. | 3503E |
|
Catalog |
Tricon v9–v10 Systems |
|
Description |
Digital Input Module |
| Origin | Mexico |
| HS CODE |
85389091 |
| Dimension |
12*8*6 (CM) |
| Weight | 4 kg |
Description:
The Model 3503E is a Triple Modular Redundant (TMR) digital input module designed to ensure high reliability and safety for industrial applications. It is specifically designed to detect stuck-ON conditions where the circuitry cannot tell whether a point has gone to the OFF state, which is crucial for safety systems that operate with a de-energize-to-trip capability.
Specifications:
Input Voltage: 24VDC
Number of Inputs: 16 discrete inputs
Output Type: Relay output
Communication Protocol: Modbus, Ethernet/IP
Operating Temperature Range: -20℃~ 60℃
AC Range: 20-42.5 VAC/VDC
Frequency Range: DC or 47-63 Hz
Maximum Voltage: 42.5 VAC/VDC
Switching Level:
OFF to ON: > 18 VAC/VDC
ON to OFF: < 6 VAC/VDC
Features:
- High Reliability
The TRICONEX 3503E is designed for security applications and features a fault-tolerant architecture.
- Scalability
It can be easily integrated with other I/O modules to extend system functionality.
- User-Friendly Interface
The TRICONEX 3503E simplifies configuration and programming through intuitive software tools.
- Robust Communication Options
Supports multiple communication protocols for versatile connectivity.
- Optical Isolation
Provides isolation between the field and the Tricon.
- Self-Testing Capability
Detects stuck-ON conditions and ensures accurate OFF state detection.
- Hot-Spare Capability
Allows for on-the-fly replacement without system shutdown.
- Ongoing Diagnostics
Constant monitoring of each channel with fault indicators for rapid issue identification.
Datasheet Link:
3503E TRICONEX TMR Digital Input Module PDF Datasheet
