Manufacture |
TRICONEX/WEIDMüLLER |
|
Model |
9662-810 |
| PN No. | 9662-810 |
|
Catalog |
Tricon v9–v10 Systems |
|
Description |
Termination panel |
| Origin | Mexico |
| HS CODE |
85389091 |
| Dimension |
12*8*6 (CM) |
| Weight | 0.4 kg |

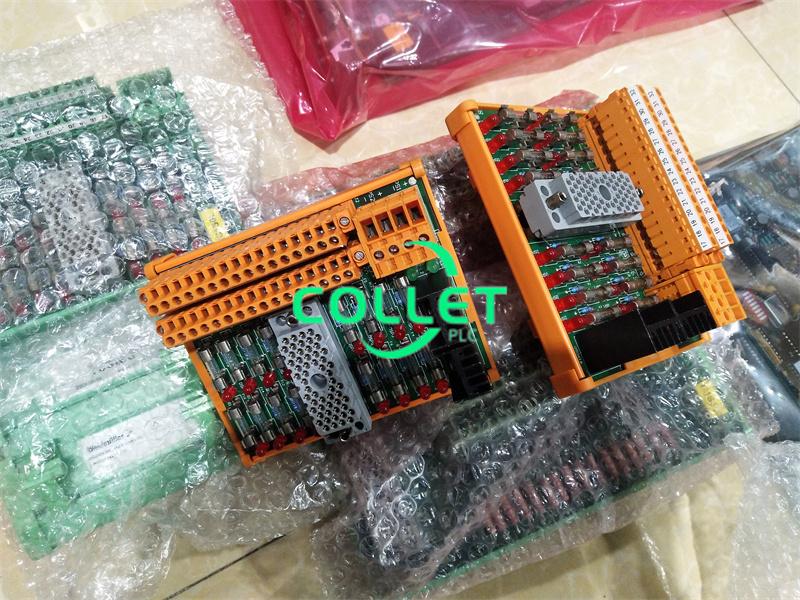

Description:
Termination panel 9662–810 is compatible with 24 VDC digital output modules and has 16 load terminals and commoned power terminals (PWR+ and PWR–). Each output point is protected by a fuse with a blown-fuse indicator.
Specifications
This table describes specifications for 9662–810.
Compatible Modules
This table describes digital output modules compatible with 9662–810.
Table 69 Specifications for Term Panel 9662–810
Feature Description
Panel type Commoned
Points 16
Maximum total current 16 amps
3604E 16 24 VDC, non-commoned, opto-isolated, TMR 2.5A, fast

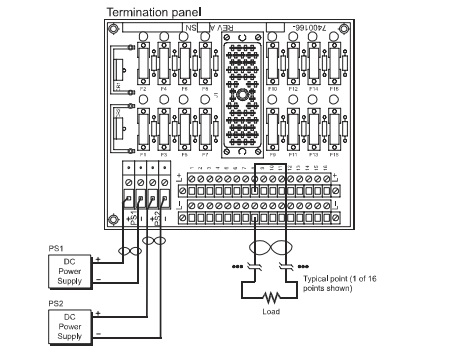

Field Wiring Diagrams
This figure illustrates how to connect the 16-point DC digital output module 3604E and a 9662-810 to the field (1 of 16 points shown)
Datasheet Link:
TRICONEX/WEIDMüLLER 9662-810 Termination panel PDF Datasheet
