Manufacture |
Triconex |
|
Model |
3604E |
| PN No. |
3604E |
|
Catalog |
TMR |
|
Description |
TMR Digital Input Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
12*8*3(CM) |
| Weight | 1.8 kg |
Description:

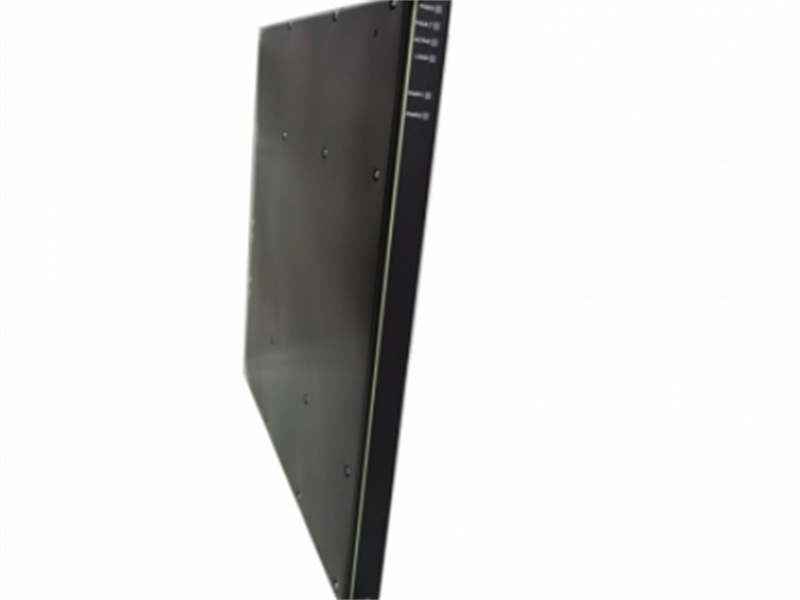

The Triconex 3604E is a high-reliability digital output module in Schneider Electric's Safety Instrumented Systems (SIS) series, designed for industrial control scenarios requiring high safety and reliability. It processes output signals from the main processor through three channels and employs a four-way voting circuit to ensure a single, reliable output signal to field devices. The module supports quick interchange and requires an external terminal block (ETP) with a cable interface to connect to the Tricon backplane. Mechanical keying ensures correct installation. Its core function is to implement Triple Module Tolerance (TMR) control, supporting real-time data acquisition, logic operations, and safety outputs. This module is primarily used to convert digital signals from the control system into actual physical outputs to control field devices such as valves and motors, thereby achieving process safety monitoring.
Parameters:
Model Number: 3604E
Type: TMR
Nominal Voltage: 24 VDC
Voltage Range: 22-45 VDC
Voltage Drop: < 4V, typical
Output Signals: 16, non-commoned
Current Ratings
- Maximum: 2A per point
- Surge: 10A for 10 ms
Chassis Leakage: n/a
Fuses (on Field Termination): 1 per output, 2.5A fast-acting
Point Isolation: 1500 VDC
FEATURES:
- High Reliability
Employs a triple modular redundancy (TMR) design to ensure system safety and availability.
- High-Density Output
Provides multiple independent digital output channels, enhancing system flexibility.
- Diagnostic Functions
Features comprehensive self-diagnostic capabilities for timely fault detection.
- Fault Tolerance
The TRICONEX 3604E offers high fault tolerance, supporting triple modular fault tolerance (TMR). This means the system has three identical controller modules that can monitor and compare results, ensuring reliable operation even in fault conditions.
- Safety
Designed for safety systems, this controller ensures the safety of industrial processes. It supports SIL 2 (Safety Integrity Level 2) and SIL 3 applications.
- Multiple Communication Interfaces
Supports multiple communication interfaces, including Modbus, DNP3, and OPC, facilitating easy integration with other devices and systems.
- Real-Time Monitoring and Diagnostics
The TRICONEX 3604E features real-time monitoring and diagnostic capabilities, helping users identify and resolve problems promptly, thereby improving system availability. Flexibility: This controller supports a variety of input/output modules, allowing for configuration and expansion to meet specific application needs.
-Voltage loopback circuit for independent switch verification and potential fault detection.
-Field connection requires an external terminal block (ETP).
-Mechanical keying ensures correct installation.
-Load and fuse monitoring with load/fuse alarm indicators.
Datasheet Link:
3604E Triconex TMR Digital Input Module PDF Datasheet
