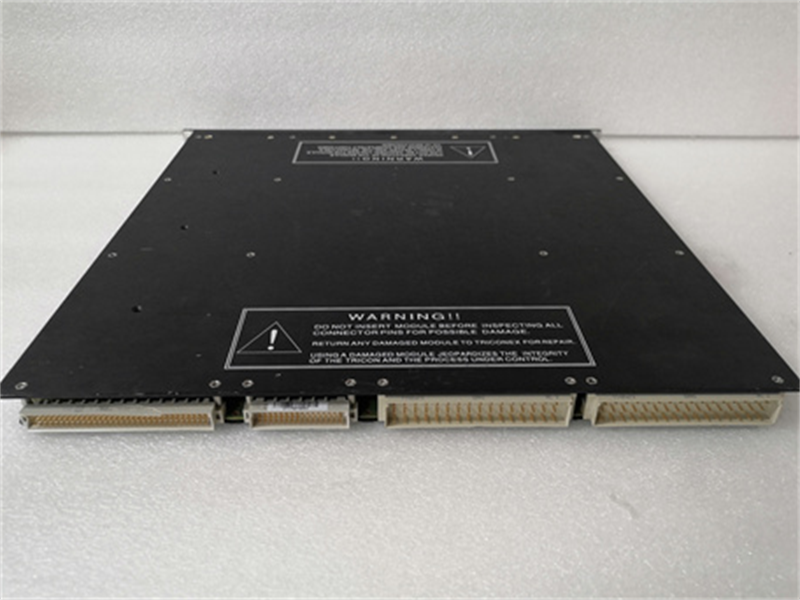

3625 Triconex Digital 24V DC Output Module

Description:

The TRICONEX 3625 digital 24V DC output module, a core component in industrial automation, is a vital part of Honeywell's TiconeX Safety Instrumented System (SIS), designed specifically for high-precision control requirements under harsh operating conditions. Employing a triplex architecture, this module ensures absolute reliability of signal output through an independent three-channel voting mechanism, making it particularly suitable for scenarios with extremely high safety requirements, such as oil refining and nuclear power generation. Its 24V DC output directly drives terminal devices such as solenoid valves and relays, enabling millisecond-level fault response in conjunction with the Triconex system, effectively avoiding the risk of production interruptions. The module also features a built-in intelligent diagnostic system, supporting real-time status monitoring and fault prediction, significantly reducing maintenance costs.

Parameters:

System: Tricon v10 / v11 Triple Modular Redundant (TMR) Fault-Tolerant Control System
Number of Output Channels: 16, Tripled (each signal is output in parallel via three independent channels)
Output Signal Type: 4–20 mA (active output), supports HART overlay communication
Output Accuracy: ±0.1% of full scale (typical, 25°C)
Maximum Load Capacity: 750 Ω @ 20 mA (per channel)
Electrical Isolation: >500 Vrms between channels and to ground (compliant with industrial safety requirements)
Operating Temperature: 0°C to +60°C (Storage: -40°C to +85°C)
Installation: Insert into Tricon rack (e.g., 8310/8311), supports hot-swapping (Swap)
Output Signal: 32
Common Voltage Range: 16~32VDC
Maximum Voltage: 36VDC
Voltage Drop: <2.8VDC@1.7A
Typical Power Module Load: <13W
Rated Current: 7A per point per 10ms
Maximum/Minimum Surge: 1.7A/10mA
Maximum Load Leakage: 4mA
Fuse: None (on field terminal)
Self-Protective Point Isolation: 1500VDC
Diagnostic Indicator: On or Off Status 1/Point

FEATURES:

• Highly Integrated and Modular Design

The TRICONEX 3625 module features a compact, modular design for easy installation and configuration, while also providing high integration, reducing the complexity of system hardware and wiring.

• Versatility
