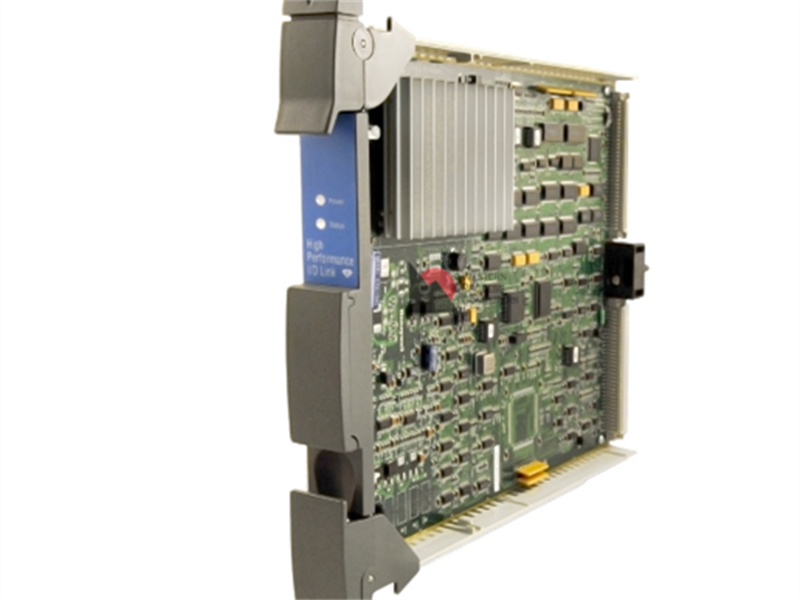

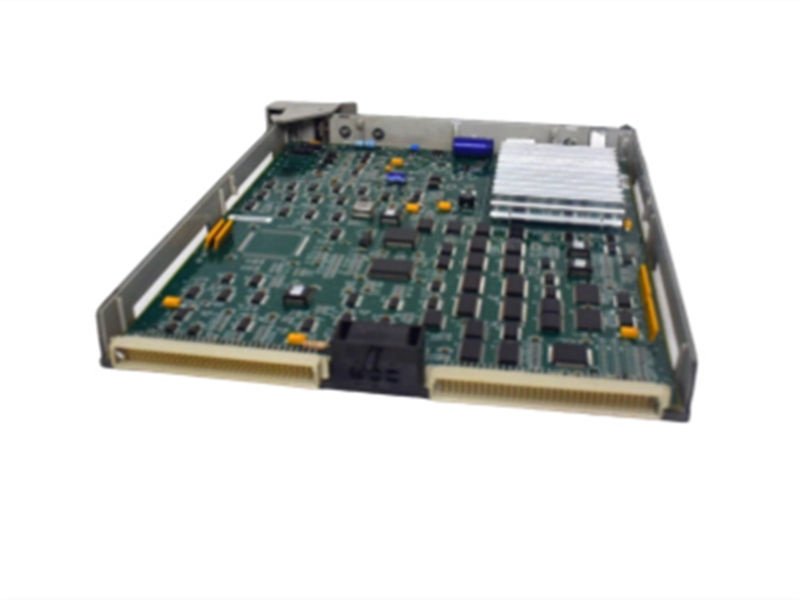

51309276-150 Honeywell High Performance I/O Link Module

Description:

The Honeywell 51309276-150 is a high-performance I/O link card for Honeywell High Performance Process Manager (HPM). This module serves as a critical interface between the HPM and its I/O subsystem, facilitating efficient data acquisition and control in industrial automation environments. Its rugged design ensures reliable operation, making it suitable for applications requiring high-speed data transmission and precise control. It enables fast and reliable communication between the HPM controller and distributed I/O modules, forming the core of real-time process control.

The HPM card slots are available in 7-slot or 15-slot configurations, housing HPMM card sets. The HPM I/O link module is the interface between the HPM and its I/O subsystem. This I/O subsystem includes redundant I/O links and up to 40 IOPs.

Specifications:

Module Type: High-Performance I/O Link Card
 Part Number: 51309276-150
 I/O Capacity: Supports up to 40 I/O processors (IOPs)·
Installation Slot: Occupies one of the two left-most slots in the HPM card file
Communication: Redundant I/O Link for fault-tolerant operation
Memory: Includes SRAM for processor communication
Mounting: Card file-based installation
Operating Voltage 24 V DC
Current Consumption ≤ 20 mA
Signal Type RS-485
Data Transfer Rate 1 Mbps
Communication Protocol Supports various fieldbus protocols
Temperature Range -25°C to +85°C
Power Consumption Less than 20 mA

Features:

• High-Speed Data Exchange

Enables rapid communication between controller and I/O modules

• Redundant Architecture

Supports dual I/O links for increased system reliability

• Modular Integration

Designed to fit seamlessly into Honeywell HPM card files

• Real-Time Performance

Ensures deterministic control in critical process environments

• Legacy System Support

Compatible with TDC 3000 and Experion PKS platforms

• Field Proven

-Widely used in refining, chemical, and power generation industries
-Enables high-bandwidth data transmission for real-time control.
-Supports redundant communication paths for system reliability.
-Facilitates connection to multiple I/O link segments.
-Ensures robust noise immunity in industrial environments.

Datasheet Link:

51309276-150 Honeywell High Performance I/O Link Module PDF Datasheet
