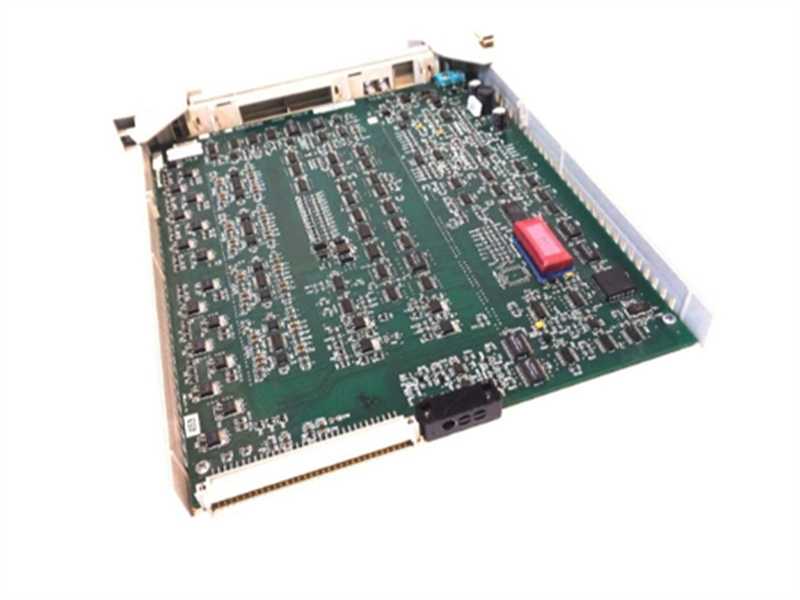

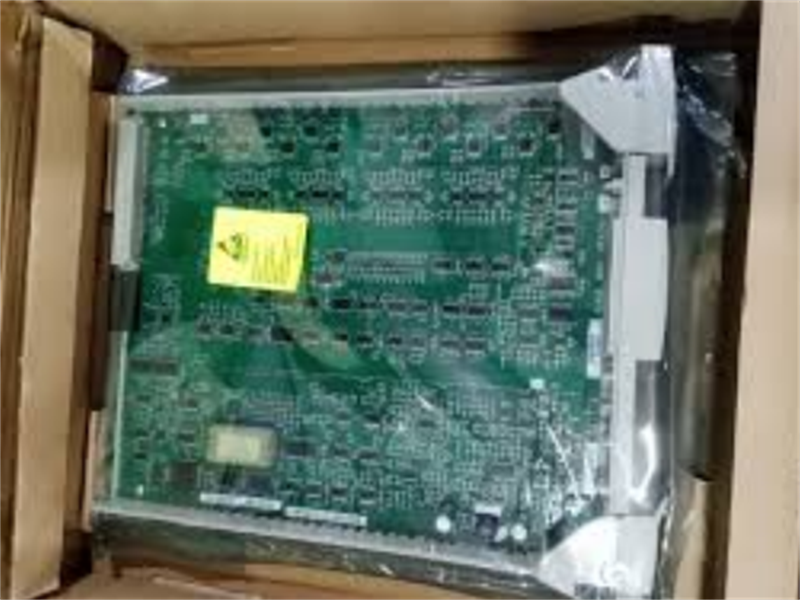

80363969-150 Honeywell MC-PAOY22 Analog Output Module

Description:

The Honeywell 80363969-150 MC-PA0Y22 is a powerful 16-channel analog output module designed for integration into Honeywell Universal Control Network (UCN) systems. Offering 16 isolated channels, it outputs accurate and reliable 4-20 mA signals, making it ideal for a wide range of industrial control applications. It features a wide output voltage range (0-10 VDC or 4-20 mA), excellent accuracy (0.5%), and extremely low noise (10 μVrms).

It serves as a reliable interface for transmitting analog signals to various control systems, ensuring precise and efficient operation.
Furthermore, the module supports field configuration, easily adapting to changing needs.

The module incorporates a processor for efficient signal management and features a protective coating to effectively resist environmental factors.

Specifications:

Number of Channels: 16
Output Type: Analog Voltage or Current
Output Range: 4-20mA
Accuracy: 0.2%
Linearity: 0.02%
Output Impedance: 2000Ω
Response Time: 0.5 seconds
Isolation: 2500V RMS between channel and power supply
Power Supply: 24VDC
Power Consumption: 10W
Operating Temperature: -40°C to 70°C
Storage Temperature: -55°C to 85°C
Humidity: 0% to 95% (non-condensing)
Vibration: 0.05g RMS, 5Hz to 500Hz
Shock: 5g, 20ms
Mounting Method: DIN Rail Mount
Number of Channels: 16
Output Type: 4-20mA
Output Voltage Range: 0V to 10V, -10V to +10V (optional)
Resolution: 12-bit

Features:

• High-Speed Data Exchange

Enables rapid communication between controller and I/O modules

• Redundant Architecture

Supports dual I/O links for increased system reliability

• Modular Integration

Designed to fit seamlessly into Honeywell HPM card files

• Real-Time Performance

Ensures deterministic control in critical process environments

• Legacy System Support

Compatible with TDC 3000 and Experion PKS platforms

• Field Proven

-Widely used in refining, chemical, and power generation industries
-Enables high-bandwidth data transmission for real-time control.
-Supports redundant communication paths for system reliability.
-Facilitates connection to multiple I/O link segments.
-Ensures robust noise immunity in industrial environments.

Datasheet Link:

80363969-150 Honeywell MC-PAOY22 Analog Output Module PDF Datasheet
