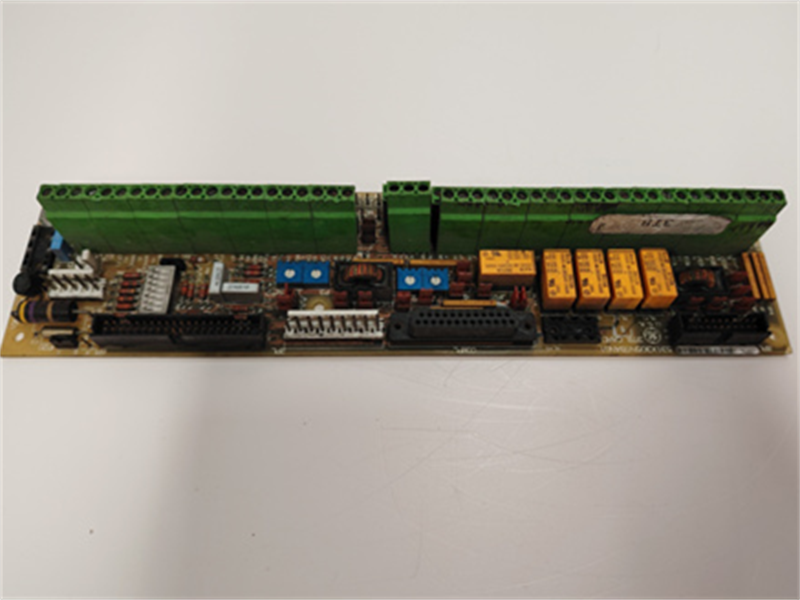

531X305NTBANG1 GE NTB/3TB Terminal Board

Description:

The 531X305NTBANG1 is an NTB/3TB terminal block designed for the EX2000 excitation system. It provides isolated and non-isolated exciter communication input directions, as well as a programming module keypad and display. The core software contains a complex system program called Independent Control System. A simulator simulates the behavior of the field and generator, and a microprocessor application card simulates the feedback signals from the field and generator, then provides these signals to the conversion algorithm to replace the actual feedback.

The main CPU and LAN communication card are integral components of the EX2000 system, serving as the primary interface for low-level signal input/output, encoder connections, relay control, and power distribution. This terminal block is designed to support complex control and protection schemes and is widely used in power generation and industrial automation systems.

SPECIFICATIONS:
Part Number: 531X305NTBANG1
Series: EX2000
Operating System: OS9 Real-Time Operating System
Power Supply: 24VDC (Non-Redundant)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -25 to 85°C (-13 to 185°F)

• I/O Capabilities

Features:

• Connection Terminals

Provides multiple terminal blocks for connecting motors, transformers, sensors, and other devices.

• Signal Transmission

Transmits control signals, status signals, and power signals.

• Protection Functions

Provides overcurrent and overvoltage protection to ensure equipment safety.

• Monitoring Functions

Monitors equipment operating status and provides alarm signals.
QA:

1.What is 531X305NTBANG1?
531X305NTBANG1 is an NTB/3TB terminal board designed to be a part of EX2000 excitation system.
2.How to Obtain this terminal board?
World of Controls provides EX2000 as well as other turbine control products. Contact WOC.

Datasheet Link:

531X305NTBANG1 GE NTB/3TB Terminal Board PDF Datasheet
