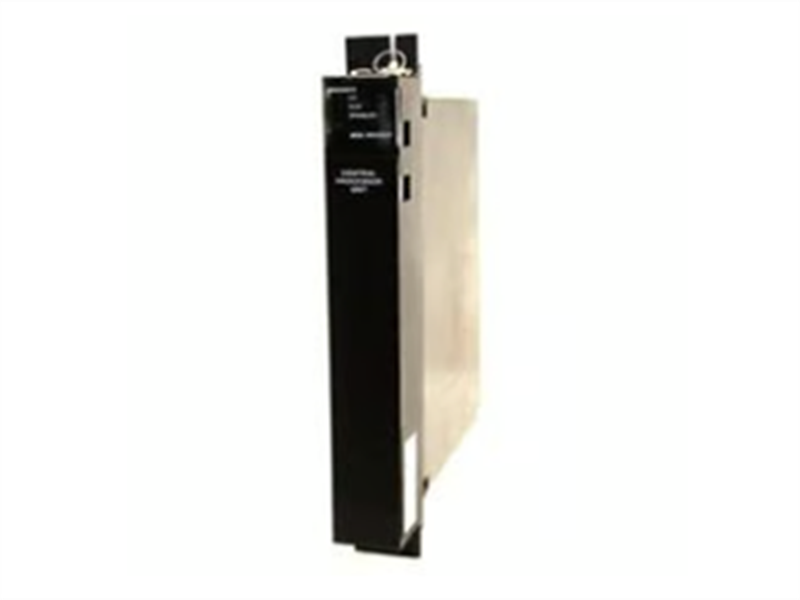

IC697CPX928 GE Fanuc Series 90-70 CPU Module

Description:

The GE IC697CPX928 is a Central Processing Unit (CPU) module designed for use with the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) system. The module is a high-performance CPU with a clock speed of up to 200 MHz and a built-in Floating Point Unit (FPU) for enhanced processing capabilities.

 It is designed to fit into a single rack slot and comes with three built-in serial ports. A backplane mounted on the rack allows this device to communicate with several different modules. A run/stop control switch with three positions or specific software running from an attached computer is used to control the IC697CPX928. Seven on-board LED lights display operational status.

The module integrates seamlessly with Series 90-70 racks and allows communication with serial devices via its RS-232 and RS-485 interfaces. Typical applications include large-scale industrial control, data processing, and system coordination where precise scan performance and VME-standard compatibility are required.
Features

-Floating point calculation capabilities.
-Three built-in serial ports for communication.
-Supports multiple 1/O and interface modules for flexibility.
-80486DX4 Processor: Provides 96MHz processing for efficient control and logic execution.
-Battery-Backed RAM: 6 MB of memory ensures retention of user data during power loss.
-Integrated Flash Storage: 256 KB of non-volatile memory for permanent program storage.
-Multiple Serial Interfaces: Includes RS-232 and RS-485 ports for device communication and programming.
-Environmental Resilience: Operates in temperatures from O to 60C with forced air cooling when required.
-Clock Accuracy Functions: Includes time-of-day and elapsed-time clocks for system event tracking.

Parameters:

Part Number: IC697CPX928
Processor Speed: O.4 microseconds per Boolean function.
Memory: 6 MB RAM, backed up by a lithium CMOS battery.
Optional Flash Memory: Up to 256 KB NVRAM.
I/O Capacity: 12K mixed, 8K analog.
Serial Ports: 3 integrated.
Operating Voltage: 5VDC.
Current:3.1A nominal.
Cooling: Requires 70 CFM forced air.
Temperature Range with Cooling: 32F to 140F (0C to 60C).
Temperature Range without Cooling:32F to122F(OC to 50C).
Battery Life: Up to 6 months (with IC697ACC701 battery).
Microprocessor:80486DX4,96 MHz.

Datasheet Link:

IC697CPX928 GE Fanuc Series 90-70 CPU Module PDF Datasheet
