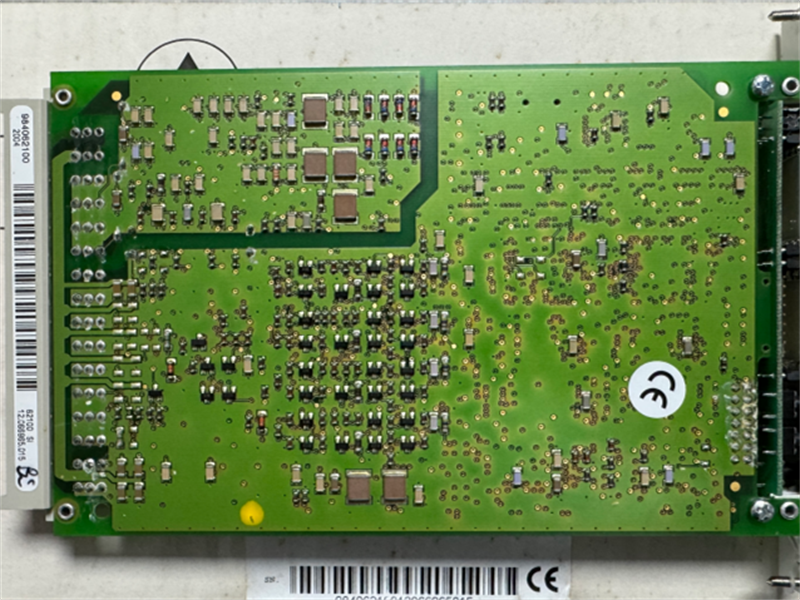

62100 HIMA 2-Channel Limit Monitor Module

The HIMA 62100 is a limit monitoring module for analog signals in PLANAR4 safety systems. It is a dual-input module designed for safety-related applications. It provides reliable signal acquisition and monitoring for systems requiring a high Safety Integrity Level (SIL). The module supports various types of sensors and switches, ensuring safe operation in critical environments. SIL 4 certified, the module can monitor over-limit, under-limit, and range limits for up to two analog signals. The 62100 module is designed for safety-critical applications such as process control, power generation, and transportation.

Parameters:

Input signal: 0/4-20mA
Output signal: Relay contactAccuracy: +0.1%
Response time: <10ms
Operating temperature: -20°C to +70°C
Resolution: 12 Bit
Filter Constant: 10 ms
Switching Time: < 250 ms.
Current Limit: 0.11 A + 10%.
Internal Voltage Drop: 2.5 V at max load
Minimum Load: 12 k$2 (no lamp load).
Maximum Inductivity: 1 H.
Safety Time: 250 ms.
Operating Data: 24 V DC / 170 mA, plus load.
Space Requirement: 3 U high, 4 SU.

Features:

• Safety Integrity Level

Suitable for SIL applications

• Input Channels

Four independent input channels

• Fail-Safe Operation

Ensures safe operation in critical environments

• Compact Design

Space-efficient module for easy integration

• Overvoltage Protection

Protects against voltage spikes

• Line Monitoring

Detects short circuits and line breaks

Datasheet Link:

62100 HIMA 2-Channel Limit Monitor Module PDF Datasheet
