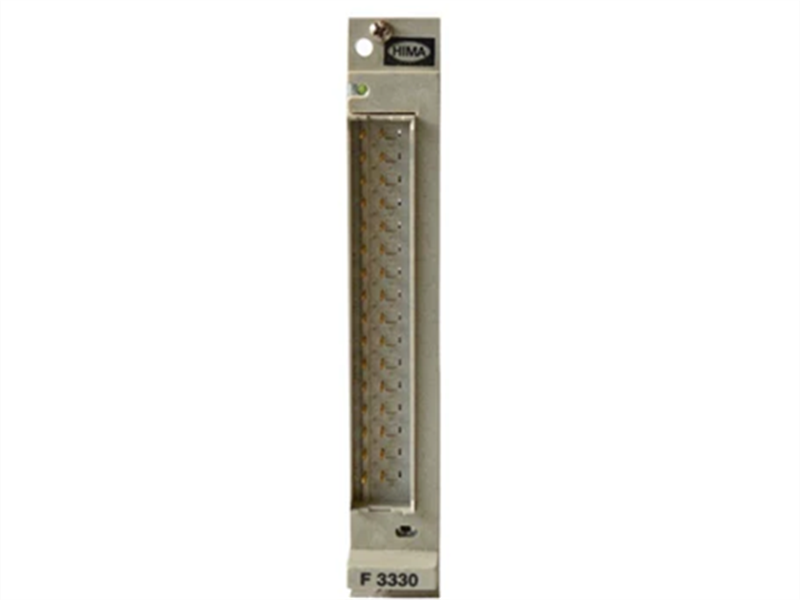

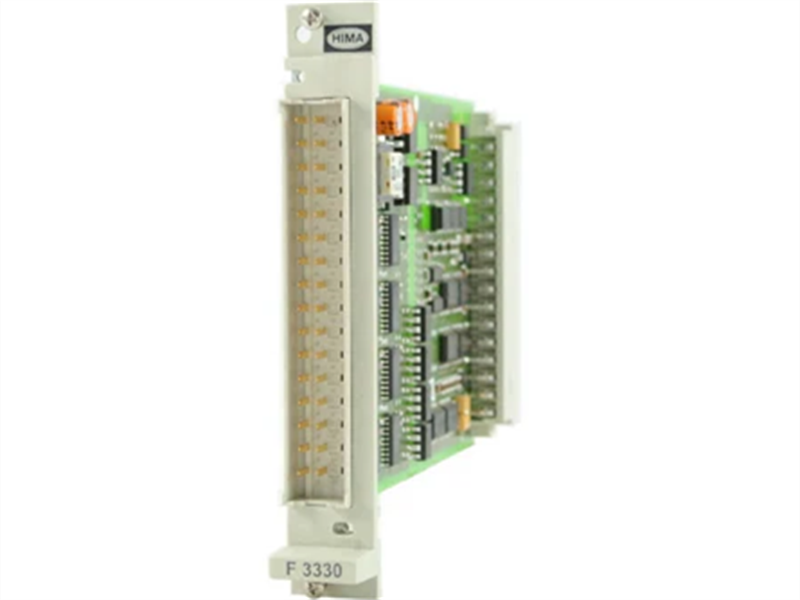

F3330 HIMA 8-Channel Output Module

The HIMA F3330 module is an 8-output module designed for safety applications, offering high reliability and versatility. It provides robust and reliable output control for resistive or inductive loads and integrates safety shutdown and isolation functions to ensure high operational safety. It converts digital signals from the control system into control signals for external devices such as valves, relays, and motor starters, enabling precise control of various industrial processes.

The F3330's 5V DC power supply does not require separate wiring, as it is installed as part of the subrack. The F3330's 5V DC power supply is provided by a 24V/5V DC clock power supply module with the F7130A designation. The CPU, interface control, and I/O module data registers all require a 5V DC power supply. The central unit monitors the 5V DC output voltage of the power module (which powers the CPU, I/O, and interfaces) to detect undervoltage or faults.

If the F3330 power module fails, the operating system provides this information to the user program via system variables. If the 5V DC system power supply is interrupted, the hardware clock and SRAM on the central module will be buffered by the lithium battery located on the module.

Parameters:

Input Voltage: 24V DC.
Operating Temperature Range: -40°C to +70°C.
Communication Interface: Ethernet, RS485.
Number of Output Channels: 8.
Output Current: 2A maximum per channel.
Protection Rating: IP67.
Internal Voltage Drop Max: 2 V at 500 mA load;
Admissible Line Resistance (in + out): max. 11 Ohm
Undervoltage Tripping: at 16 V
Space Requirement: 4TE
Operating Data:

• 5VDC = 110mA
• 24V DC = 180 mA in additional load.

Features:

• High Reliability

Utilizes high-quality materials and advanced manufacturing processes to ensure stable operation in harsh industrial environments.

• Versatility

Supports various load types, such as relays, valves, and motor starters.

• Diagnostic Capabilities

Built-in diagnostic functions facilitate troubleshooting and maintenance.

• Safety Features

Complies with IEC 61508 standards, achieving SIL 3 safety integrity level.
