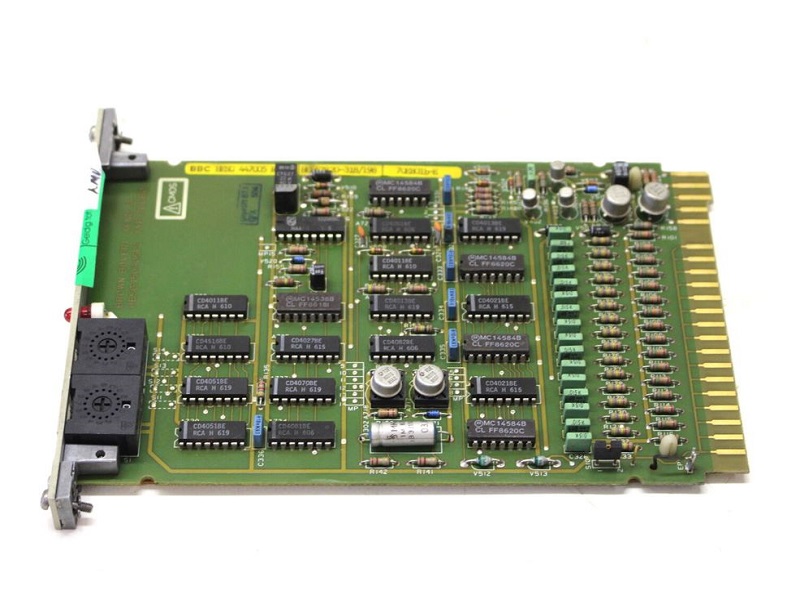

70EB02c-ES ABB HESG447220R4 PROCONTROL P Binary Input Module

Description:

This module can be plugged into any multi ---purpose processing station of the PROCONTROL bus system. It requires a space of 2 divisions.

It uses:
--- One SS standard interface for the station bus,
--- One SEA standard interface for the PROCONTROL ---PS bus,
--- Connections provided for hardware inputs.
As with all the other station bus modules, the station bus address of this module is related to its place of installation.

However, the module may only be plugged onto even ---numbered module addresses. The next higher (uneven) module address will be used automatically by the module, and needs not be wired. However, it must not be assigned to another station bus module.

It transfers data from PROCONTROL ---PS station modules to the station bus.

It transfers data received from the station bus to modules connected to the PROCONTROL ---PS bus.

The connected PROCONTROL ---PS modules are monitored for proper functioning.

Disturbances are signalled to the PROCONTROL system in the form of diagnosis telegrams. They are annunciated additionally on the module front by means of light ---emitting diodes (see ”Annunciation functions”).

The module is able to simulate output data destined for the PROCONTROL ---PS bus (only admissible for servicing).

The module merely requires a 24V supply (voltages needed additionally, are generated inside the module itself).

With the help of the PDDS, user lists are loaded into an EEPROM.
