Manufacture |
ABB |
|
Model |

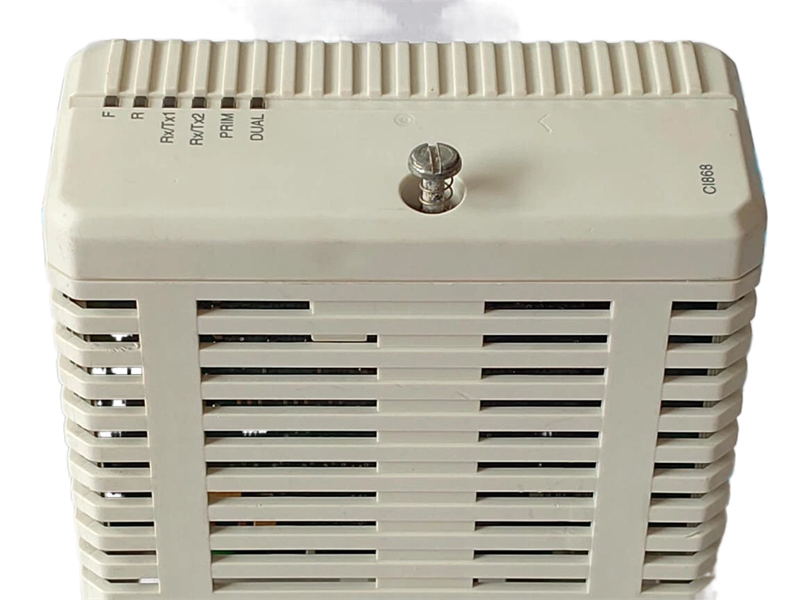

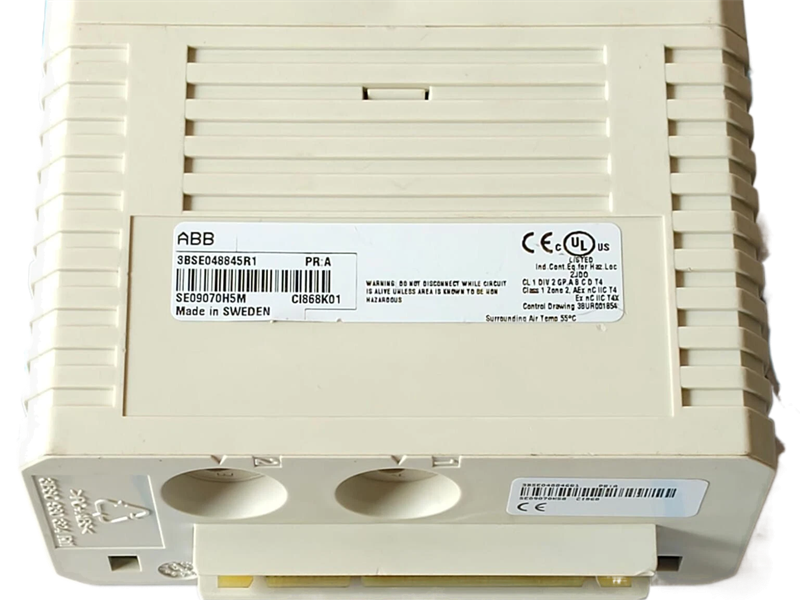

CI868AK01 |
| PN No. |
3BSE092691R1 |
|
Catalog |
S800 |
|
Description |
IEC 61850 Interface Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
12*18*5.9 (CM) |
| Weight | 0.7 kg |
Description:
The CI868A can be used to connect an AC 800M controller to external Ethernet devices using IEC 61850 – Edition 2 standard. Since this is a standard for Substation Automation, this allows the combination of Process Automation and Electrical Control in the same controller.

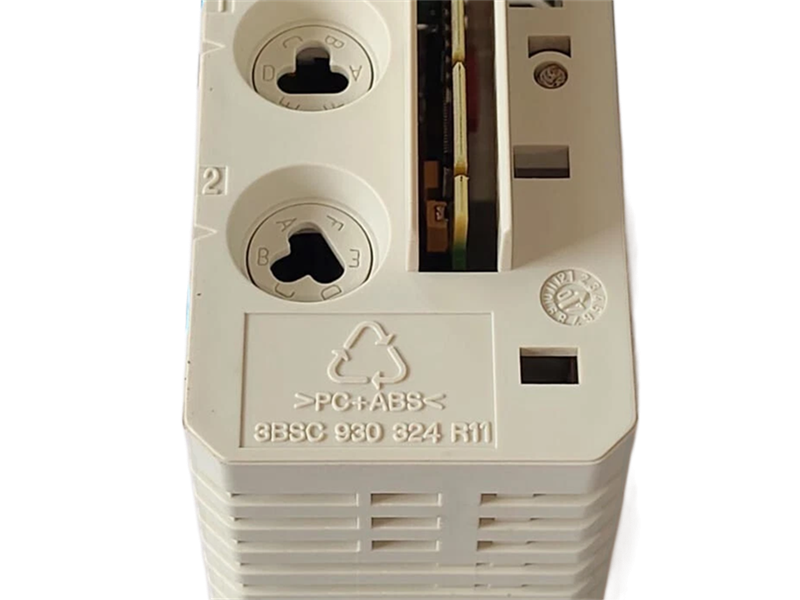

The TP868 Baseplate has two RJ45 Ethernet connectors, where CH1 connector can use 10Mbps or 100Mbps (Mega bits/sec.).The baseplate has a code lock that prevents the installation of an incorrect type of unit onto the TP867 Baseplate.
The CI868 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. The Ethernet cable must be connected to the main network through an Ethernet switch.
The CI868A module will only work with System 800xA 6.0.3.3, 6.1.1 and subsequent versions
Package including:
-CI868A, Communication Interface
-TP867, Baseplate
Features and benefits
- Allows communication via both protocols defined by IEC 61850 standard: MMS (client) and GOOSE
- A maximum of 120 IEDs (GOOSE) and 40 IEDs (MMS) is allowed per CI868A. The combination of both protocols in the same module is allowed. (40IEDs /CI868A)
- Up to 12 modules can be used in one AC 800M Controller
Frequently Asked Questions:
1.What are Power dissipation of CI868AK01?
3.8W
2.What is Temperature, Storage of CI868AK01?
-40 to +70 °C (-40 to +158 °F)
sheet Link:
CI868AK01 ABB 3BSE092691R1 IEC 61850 Interface Module PDF Datasheet
