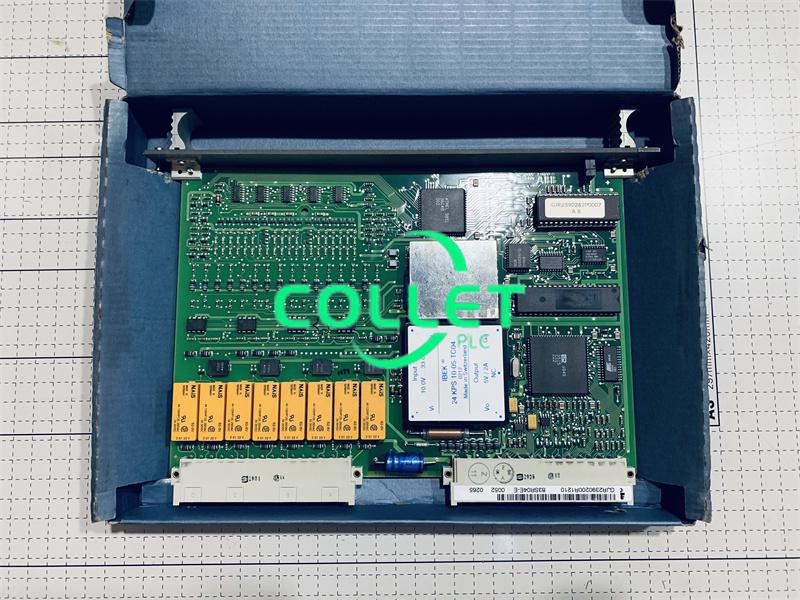

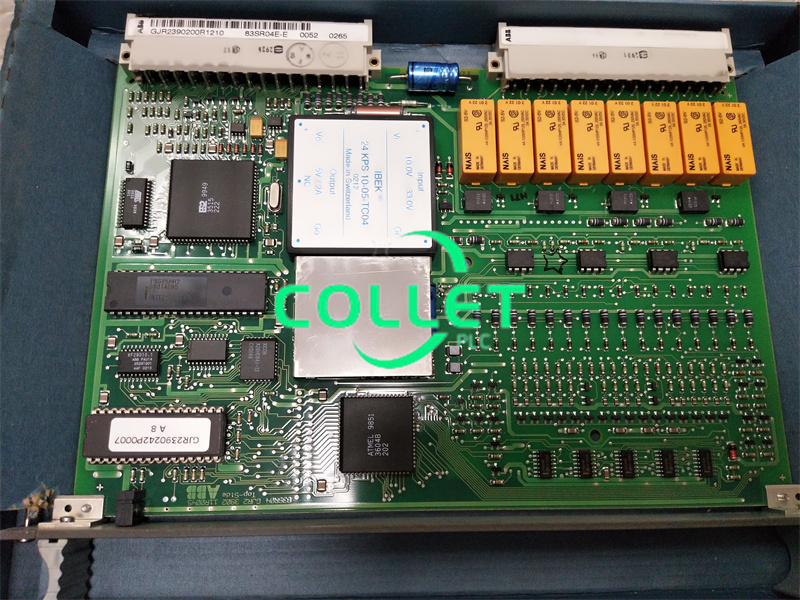

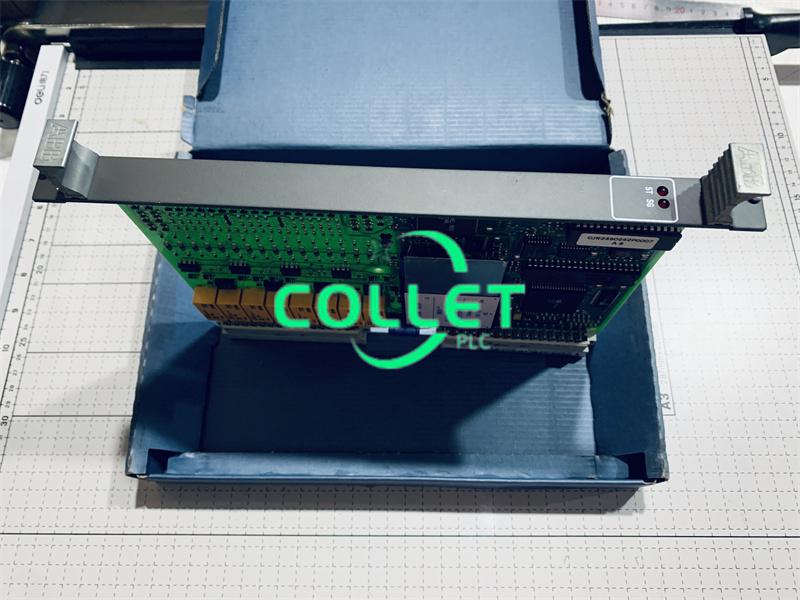

83SR04E-E ABB GJR2390200R1210 Control Module

Description:

The 83SR04 ABB GJR2390200R1210 module is used for stored-program binary and analogcontrol tasks on the drive, group and unit control levels. lt canbe used for the following applications:
-Drive control of unidirectional drives
-Drive control of actuators
-Drive control of solenoid valves
Binary function group control(sequential and logic)3-step controlSignal conditioning
The module is intended for use in connection with the multi-purpose processing slation.
The module can be operated in three different modes.
Binary control mode
(and analog basic functions)
with variable cycle time
Analog control mode
(and binary control)
with fixed, selectable cycle time
Signal conditioning mode
with fixed cycle time and disturbance bit output
The operating mode is selected by means of function blockTXT1. which is the first to appear in the structure.In the binary control mode, up to 4 binary function groupcontrols or 4 drive controls,or combinations of drive andbinary function group controls can be implemented for eachmodule (noting the module cycle time).
In the analog control mode, a maximum of 4 analog controlloops in the form of 3-step controllers -depending on theregulating time of the actuator - can be implemented for eachmodule (see "Operating modes").
The module incorporates 4 hardware interfaces to the switch-gear and the process.
