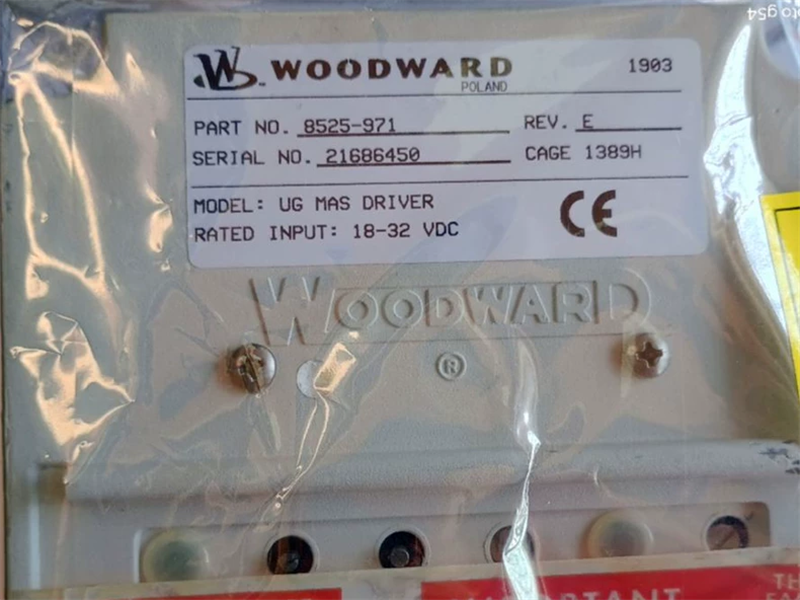

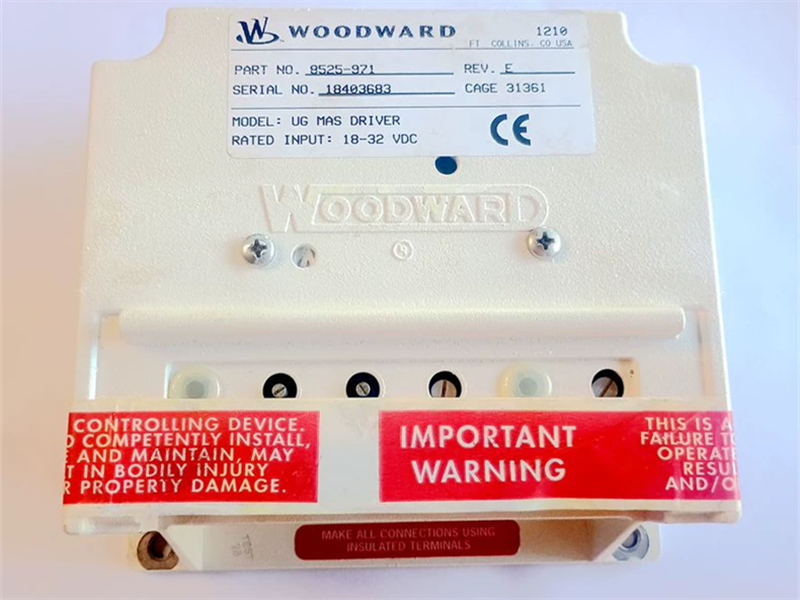

8525-971 Woodward UG MAS Driver Speed Control Module

Description:

Pressure-compensated WOODWARD 8525-971 speed regulator SERIAL NO. 20651685 MODEL: UG MAS

The UG MAS is a pressure-compensated hydraulic speed governor designed to accept standard 4-20 milliampere current signals to set the governor speed.

The internal pump, safety valve and accumulator system maintain the working pressure of the governor. An independent oil tank stores the oil, thereby reducing the possibility of external contamination.

The oil flow entering and exiting the power cylinder assembly of the governor is controlled by the ball head and the pilot valve assembly. The power cylinder positions the fuel rack, fuel engine or turbine's valves or steam valves. The stability of the governor is ensured by the adjustable needle valve and the spring buffer compensation system.

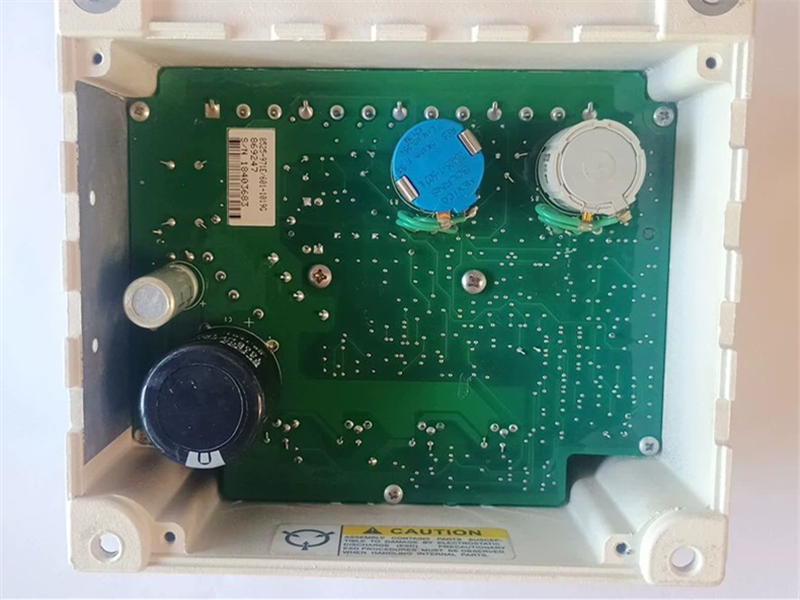

The separate UG MAS electronic driver box receives a 4-20 milliampere speed signal. This input signal is set to correspond to the desired speed range and is achieved using two potentiometers. The driver drives a stepper motor to move the speed lever.
The position of the speed lever determines the compression of the speed spring.

Wood Electronic Drive WOODWARD Part 247-007 - Speed Regulator Made in the USA

Pharameters:

Product Model: 8525-971
Product Type: Netcon CPU-040 Module
Operating Voltage:24 V DC
Operating Temperature: -40°C to +105°C
Signal Compatibility: Supports analog and discrete I/O for field device connectivity
Isolation: Built-in electrical isolation for enhanced noise immunity
Mounting: DIN rail or panel mount for flexible installation
Construction: Industrial-grade housing with shock and vibration resistance
Certifications: Compliant with industrial safety and EMC standards
Features:

• Advanced generator control with flexible breaker configuration
• Real-time monitoring with interactive LCD display
• Remote control capability via digital signals and interface
• Robust event logging for operational tracking and diagnostics

Frequently Asked Questions:
1.Does the customer arrange for the inspection before the goods are shipped?
Confirmed acceppted this issue

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods

Datasheet Link:

8525-971 Woodward UG MAS Driver Speed Control Module PDF Datasheet
