Manufacture |
ABB |
| Model |
87TS51 |
| PN No. |
GKWE858300R1210 |
|
Catalog |
BBC |
|
Description |
PCB Board |
| Origin | Sweden/Malta/India |
| HS CODE |
85389081 |
| Dimension |
20*26*2 (CM) |
| Weight | 0.55 kg |
Description:

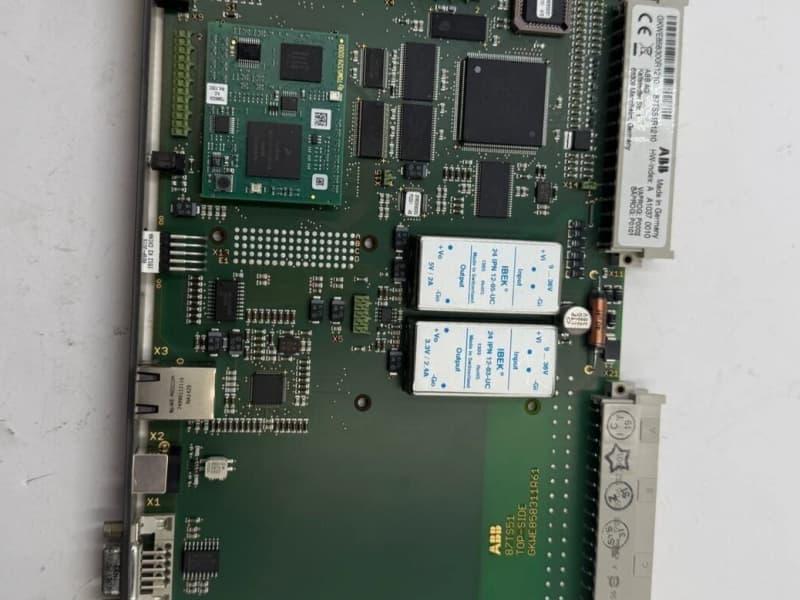

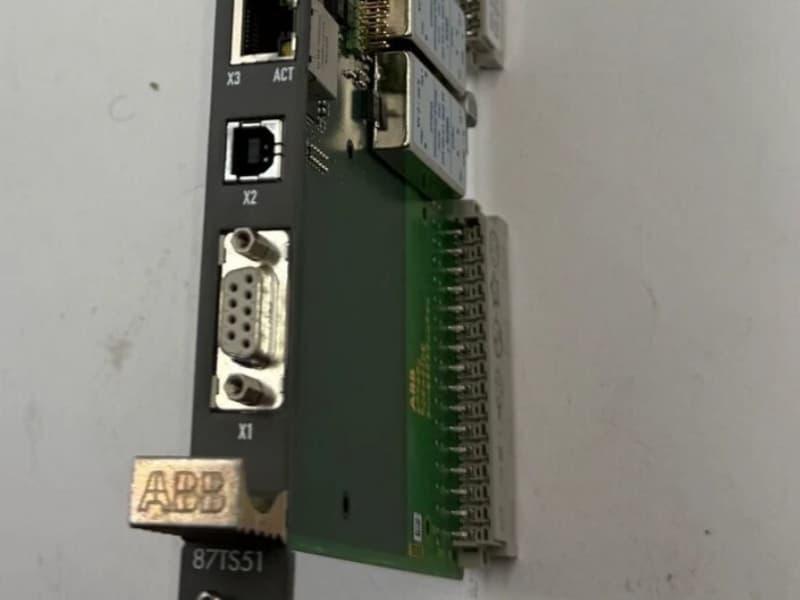

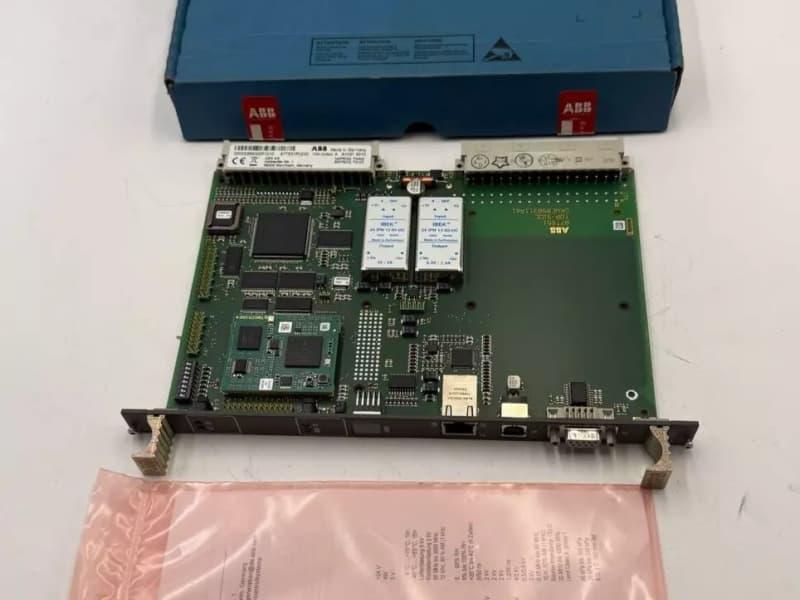

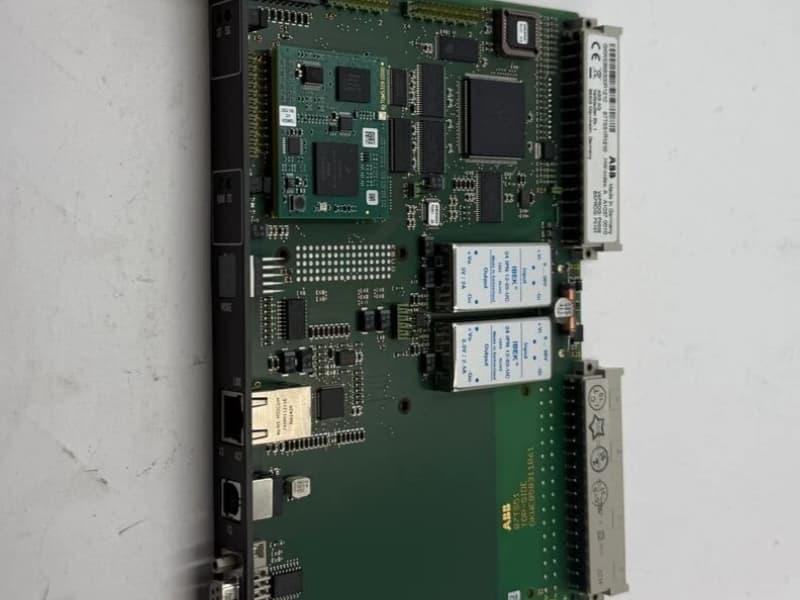

ABB GKWE858300R1210 87TS51R1210 PCB Board
ABB 87TS51-R1210 GKWE858300R1210 is a coupling module from ABB for connecting different types of systems. According to the available information, the module is mainly used to connect ABB's HMI (Human Machine Interface) system and FDDI (Fiber Distributed Data Interface) network.
Main functions
1.Coupling HMI systems and FDDI networks:The main function of this module is to connect ABB HMI systems, such as POS30, S+Operations or 800xA, to FDDI networks via Ethernet.
2.Data transfer: Transfers data between the HMI system and the FDDI network, enabling communication and data exchange between the different systems.
3.Protocol Conversion:May have protocol conversion function to convert data of different protocols to fit the communication needs of different devices.
Potential Application Scenarios
1.Industrial Automation:Used to integrate HMI system into industrial automation system based on FDDI network to realize monitoring and control of process.
2.Data Acquisition:Data from field devices can be transmitted to HMI system through FDDI network for data acquisition and analysis.
Technical features
1.Multiple interfaces:With Ethernet and FDDI interfaces, it can be connected to different network devices.
2.Flexible Configuration: It can be flexibly configured through the configuration software to adapt to different application scenarios.
3.High Reliability:Adopting industrial grade design, it has high reliability and stability.
Datasheet Link:
ABB GKWE858300R1210 87TS51R1210 PCB Board PDF Datasheet
