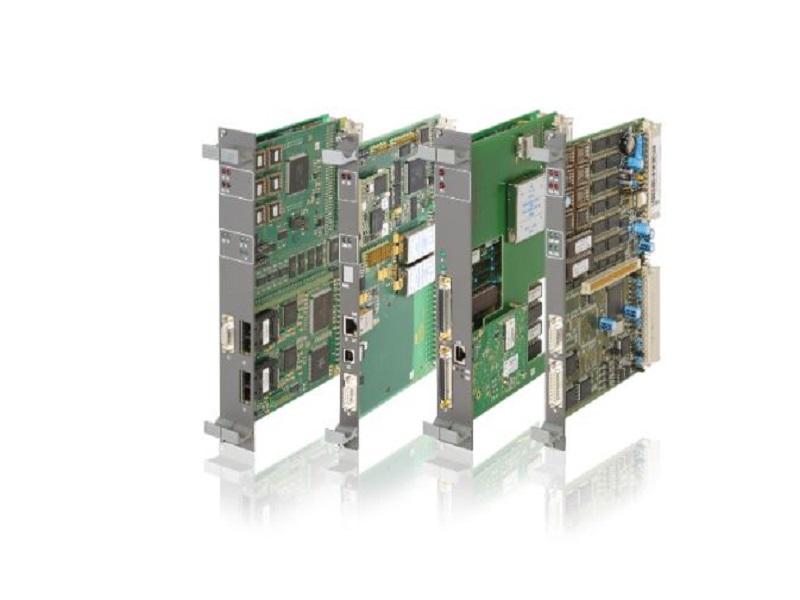

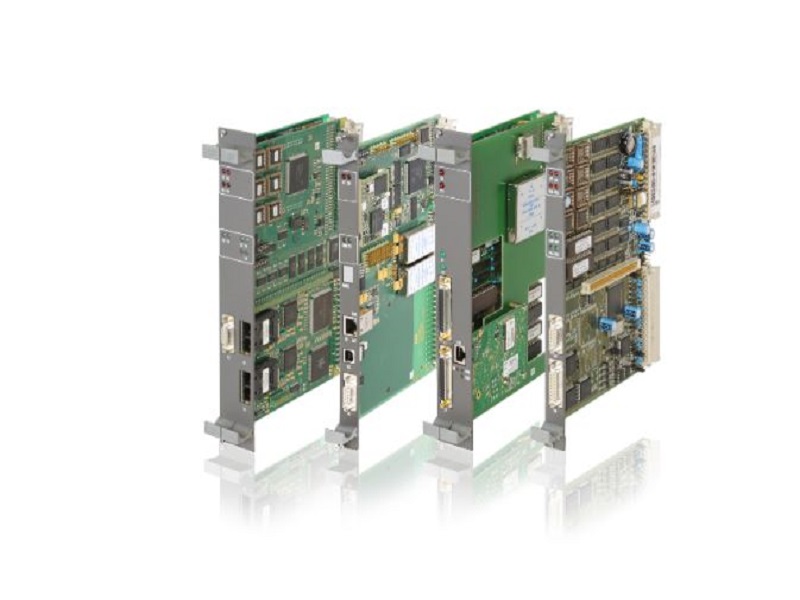

Manufacture |
ABB |
|
Model |
89IL07A-E |
| PN No. |
GJR2394300R0100 |
|
Catalog |
Advant OCS with Master SW |
|
Description |
Remote Bus Coupling Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
Description:
In the PROCONTROL system, the 89IL07 station-bus PCB is responsible for setting the module addresses of each electronic module through jumpers SRA and GTA5, which are determined by the module's mounting location in each sub-rack, as illustrated in Figure 5.
sheet Link:
ABB 89IL07A-E GJR2394300R0100 Remote Bus Coupling Module PDF Datasheet
