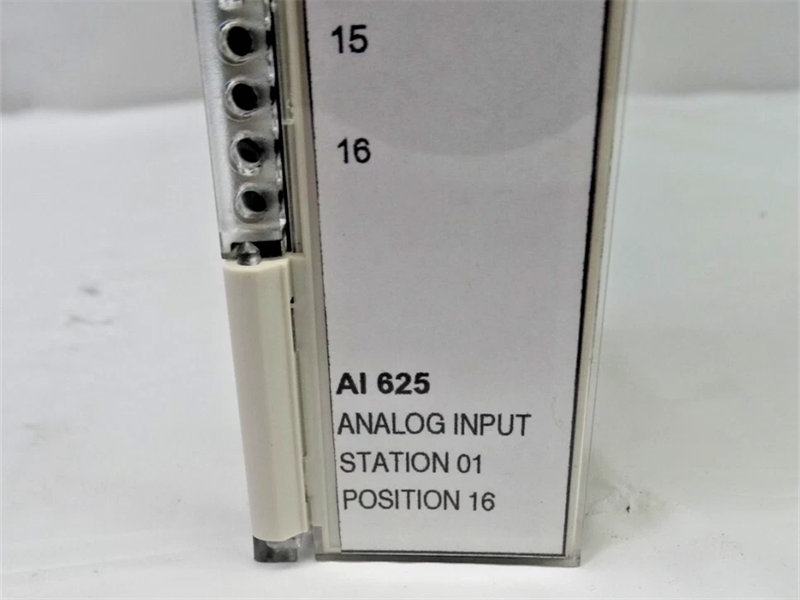

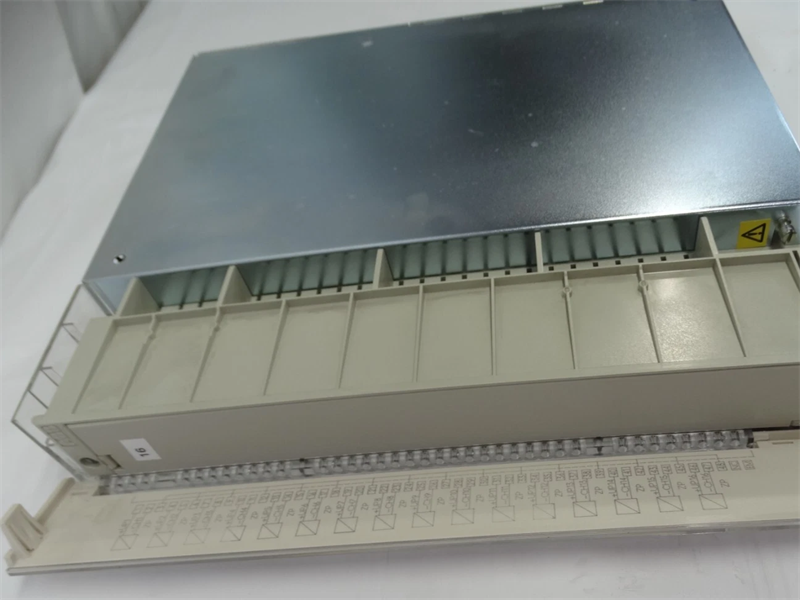

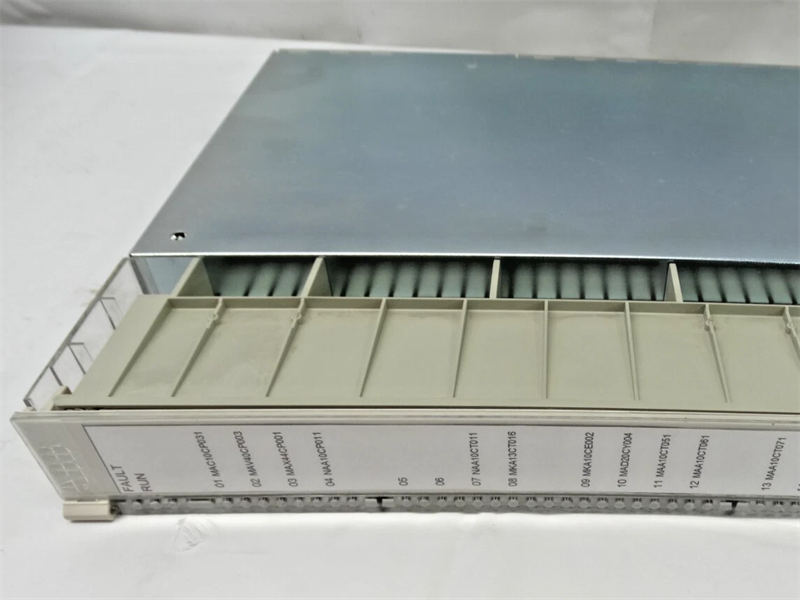

AI625 ABB 3BHT300036R0001 S600 I/O Analog Input Module

Description:

S600 I/O Analog Input Module. 16 channels, 12 bits resolution, galvanic isolated as one group, 0-20 mA, CMV 50 V, CMRR> 100 dB, Shunt 100 Ω

Note! This part is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f) and (j) therein
(ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY- ABB Advant Master Process Control System)

853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts suitable for use solely or principally with the apparatus of heading|8535, 8536|or 8537;Other

Features and benefits

• Input Current / Voltage: ±13 mA; 24 V DC or 5 V DC
• Key Functions: Direction detection using a secondary speed input and built-in overspeed trip logic.
• Outputs: Solid-state (24 V DC) and dry contact (60 V DC) trip signal outputs.
• Isolation: Individually opto-isolated speed inputs and solid-state outputs.
