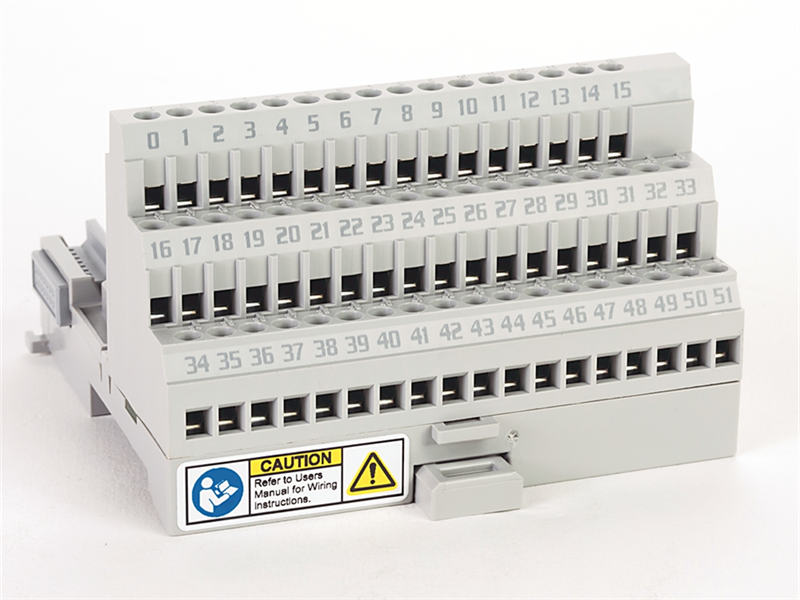

Allen-Bradley 1440-TB-B Terminal Base Unit for XM-220

Description:

The Allen-Bradley 1440-TB-B Terminal Base Unit is designed specifically for the XM-220 Dual Speed Module (catalog number 1440-SPD02-01RB). It provides all necessary field wiring terminations, including power supply connections, relay outputs, tachometer inputs, DeviceNet communication, and buffered outputs. The base unit mounts on a standard 35 mm DIN rail or directly onto a panel/wall. It features a side connector that allows interconnection with adjacent XM modules, simplifying external wiring and sharing power and communication signals. The 1440-TB-B is conformally coated and certified for use in Class I Division 2 hazardous locations and ATEX Zone 2 environments.

Key capabilities

• Designed exclusively for the XM-220 Dual Speed Module

• DIN rail (35 × 7.5 mm) or panel/wall mounting options

• Side connector for daisy-chaining power (24V DC, up to 3 A) and DeviceNet signals (300 mA max) to adjacent XM modules

• Terminal block assignments:

  • 24V DC power input (terminals 0, 1)

  • Reset relay switch input (terminal 2)

  • Four DPDT relay terminals (Relays 1–4) with N.O., N.C., and common contacts

  • Two tachometer inputs with buffered outputs

  • DeviceNet connections (CAN_H, CAN_L, DNet V+, DNet V–, shield)

  • Serial port (TxD, RxD, RTN) for local configuration

  • Chassis ground terminals

• Operating temperature range: –20…+65 °C (–4…+149 °F)

• Storage temperature: –40…+85 °C (–40…+185 °F)

• Humidity: 5…95% noncondensing

• Conformally coated circuit boards (IPC-A-610C)

• UL, c-UL, ATEX, IECEx, CE, RCM, KC, CCC certifications for hazardous locations

• Terminal screw torque: 0.8 N·m (7 lb·in)

Applications

• Mounting and wiring the XM-220 Dual Speed Module in machine condition monitoring systems

• Speed monitoring for pumps, fans, compressors, turbines, generators

• Zero speed detection, locked rotor protection, reverse rotation detection

• Electronic Overspeed Detection Systems (EODS) when combined with XM-442 voted relay module

• Integration into DeviceNet networks via the terminal base’s communication ports

• Use in hazardous locations (Class I Division 2, ATEX Zone 2) with proper enclosure

Quality Assurance

100% brand new original. 1-year warranty. In stock for fast delivery (1-3 days).
