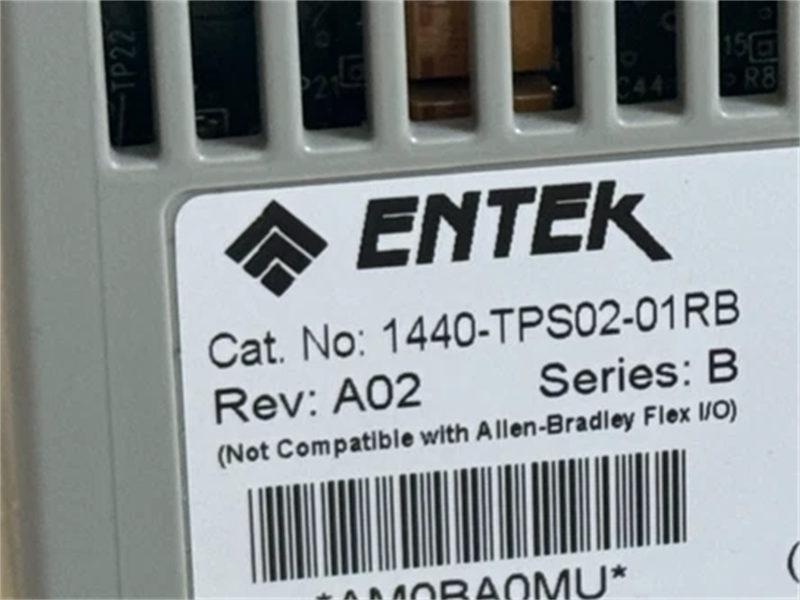

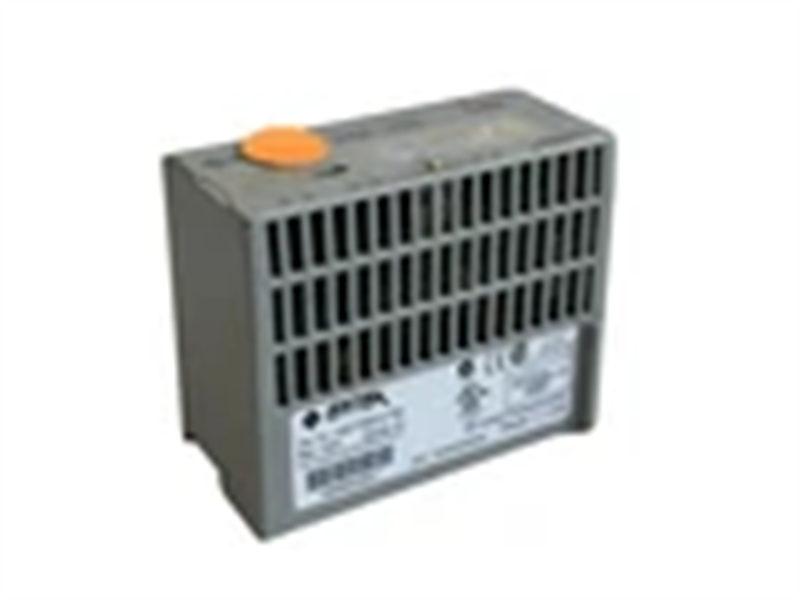

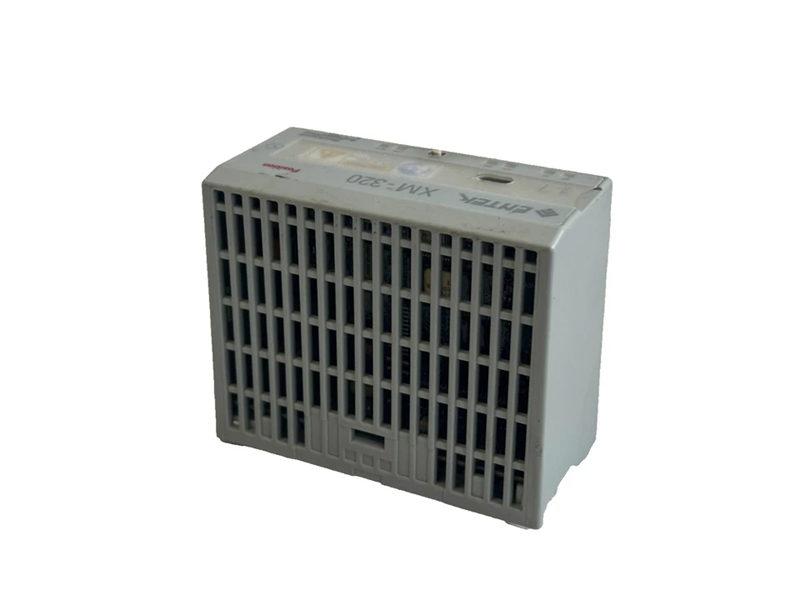

Allen-Bradley 1440-TPS02-01RB XM-124 Standard Dynamic

The Allen-Bradley 1440-TPS02-01RB is an XM‑124 Standard Dynamic Measurement Module.

Item NO.:
1440-TPS02-01RB
Payment:
T/T
Market Price:
$1500
Product Origin:
USA
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
5
Product weight:
0.26kg

Inquiry now

product introduction

Manufacture	Rockwell Allen‑Bradley
Model	1440-TPS02-01RB
PN No.	1440-TPS02-01RB
Catalog	XM-124
Description	Standard Dynamic Measurement Module
Origin	USA
HS CODE	85389091
Dimension	97mm × 94mm × 94 mm
Weight	0.26kg

Description:

Description

The Rockwell Allen-Bradley 1440-TPS02-01RB (XM-124) Standard Dynamic Measurement Module is a two‑channel general‑purpose monitor designed for dynamic input measurements such as vibration, pressure, strain, and position. It is part of the Allen‑Bradley XM® series, a family of distributed machine condition monitoring and protection devices.

The module accepts signals from non‑contact eddy current probes, standard IEPE accelerometers, velocity transducers, AC voltage output, or DC voltage output measurement devices. It also includes a tachometer input for speed measurement and order analysis, working with most tachometer signal sources including eddy current probes, unpowered magnetic probes, and other powered/unpowered sensors.

Key features:

Two independent channels for dynamic measurements
Built‑in signal processing: DC bias (gap), overall vibration, FFT, time waveform, band measurements, vector measurements (1X, 2X, 3X), sum harmonics, and more
Advanced alarm and relay logic with configurable alert and danger thresholds
Onboard relay (Form C) and two isolated 4‑20 mA analog outputs
DeviceNet communication for integration with PLC/DCS systems
Buffered outputs for each vibration input and tachometer
Field‑configurable via XM Serial Configuration Utility software

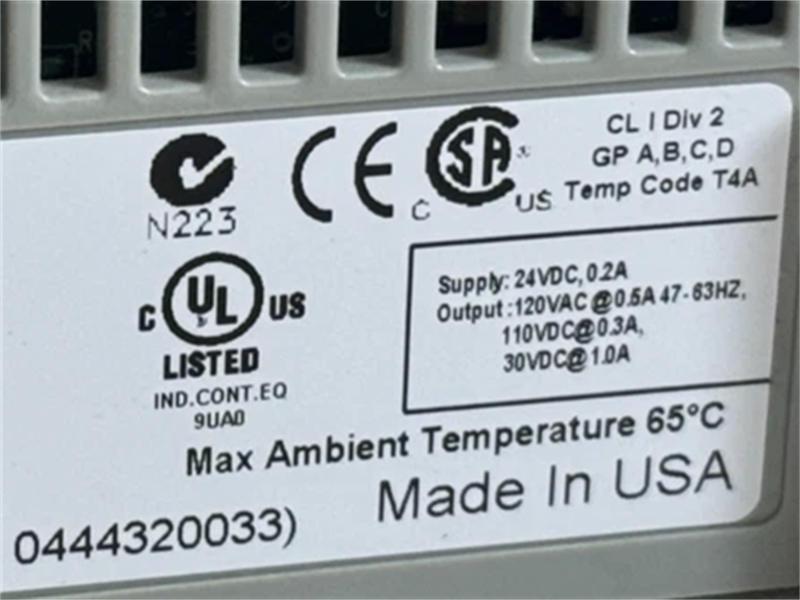

Suitable for hazardous locations: Class I, Division 2, Groups A, B, C, D; ATEX Zone 2 certified
Operating temperature: -40°C to +70°C
Power supply: 24V DC ±10%, Class 2 rated

Applications:

Vibration monitoring for pumps, fans, compressors, turbines, and generators
Shaft, casing, and pedestal vibration measurement in rotating equipment
Condition monitoring and predictive maintenance in power generation, oil & gas, petrochemical, and heavy manufacturing
Replacement for legacy XM‑120 / XM‑121 modules with enhanced performance

Quality Assurance:
100% brand new original. 1‑year warranty. In stock for fast delivery (1-3 days).

Frequently Asked Questions:

Q1: What is the main function of the XM-124 module (1440-TPS02-01RB)?
A1: The XM-124 is a 2‑channel standard dynamic measurement module used for monitoring vibration, pressure, strain, and position on rotating machinery. It supports eddy current probes, IEPE accelerometers, velocity transducers, and AC/DC voltage inputs, and provides onboard processing of critical vibration parameters, alarm and relay logic, and DeviceNet communication.

Q2: What types of sensors can be connected to the XM-124?
A2: The module accepts non-contact eddy current probes, standard IEPE accelerometers, velocity transducers, AC voltage output, or DC voltage output measurement devices. It also includes a tachometer input compatible with eddy current probes, magnetic pickups, Hall effect sensors, and other powered/unpowered tachometer sensors.

Q3: Does the XM-124 support redundant or dual-channel configuration?
A3: The XM-124 is a two‑channel monitor that can be used independently or as part of a distributed XM system. It does not itself provide module‑level redundancy, but multiple XM modules can be networked via DeviceNet to achieve system‑level redundancy when combined with an XM‑440 Master Relay module or a controller.

Q4: What communication protocols does the XM-124 support?
A4: The XM-124 uses DeviceNet as its primary fieldbus for communication with PLCs (e.g., ControlLogix) and DCS systems. It supports Poll, Change of State (COS), and Bit‑Strobe I/O messages. A serial port (RS‑232) is also available for local configuration via the XM Serial Configuration Utility software.

Q5: What output signals does the module provide?
A5: The XM-124 provides two isolated 4‑20 mA analog outputs (programmable to track any measured parameter), one onboard relay (Form C), and buffered outputs for each vibration input and the tachometer signal for connection to portable data collectors or online systems.

Datasheet Link:

Allen-Bradley 1440-TPS02-01RB XM-124 Standard Dynamic--Manual PDF Datasheet
