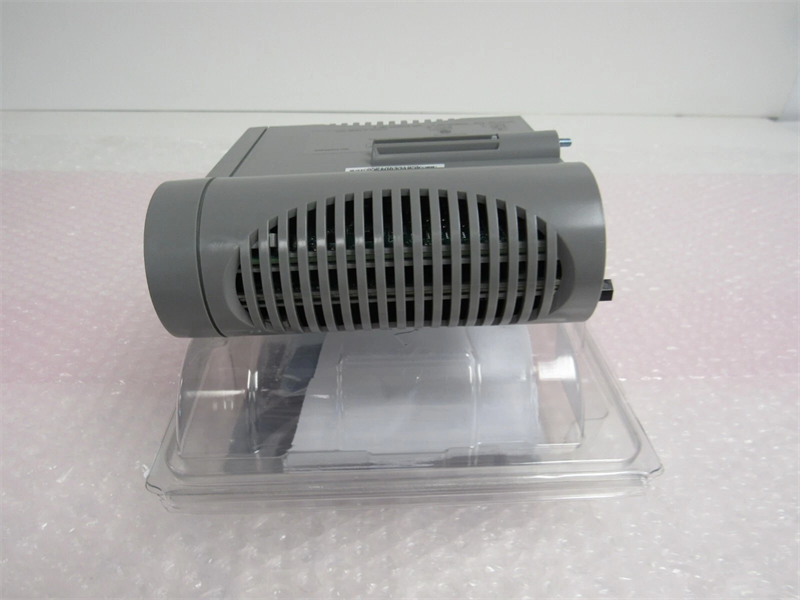

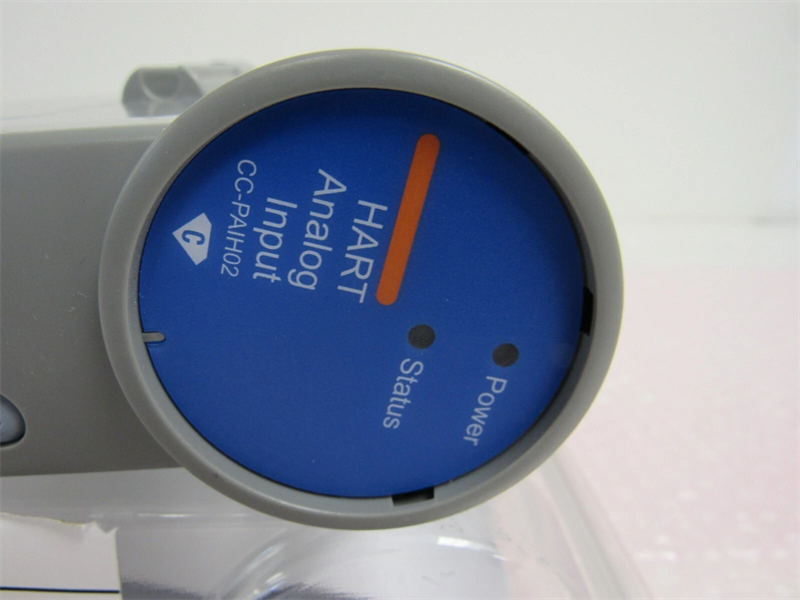

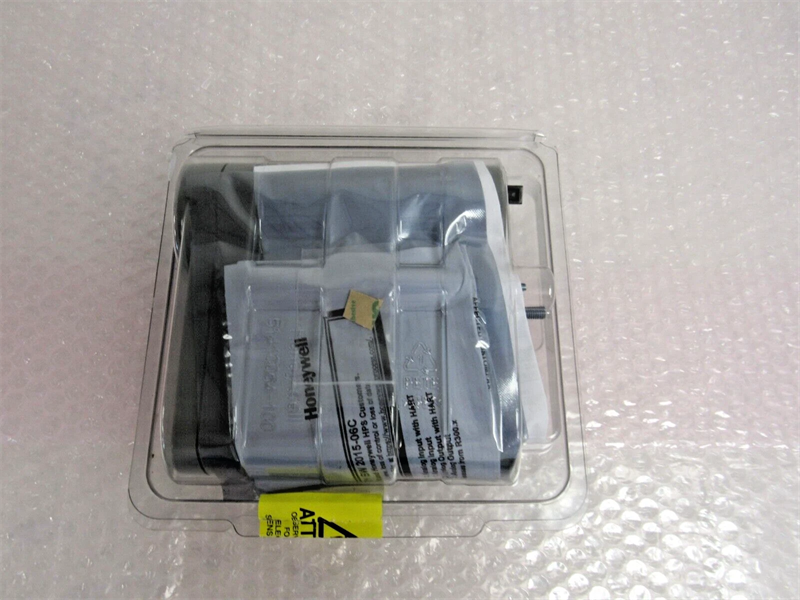

CC-PAIH02 Honeywell 51405038-375 Analog Input with HART

Description:

CC-PAIH02 Honeywell 51405038-375 is High Level Analog Input with HART

Series C I/O is attached to an IOLINK that is being mastered by a C300 controller. It is important to note that:
• IOLINK - Serves as data repository for IOM function blocks in Control Builder to provide communications
interface with Series C I/O.
• Series C I/O cannot reside on an IOLINK mastered by an IOLIM or xPM.

NOTES:
1. There are two models of High Level Analog Input such as, CU-PAIX01 and CU-PAIN01. The Module
Hardware and the corresponding IOTAs are different and CU-PAIN01 is a new model. From the perspective
of configuration and implementation, both High Level Analog Input models use the same IOM Block such
as, AI-HL. It must be noted that the two models utilize the same configuration; online migration is not
possible as mixed redundant pair is not possible. There are two models of Analog Output such as, CUPAOX01 and CU-PAON01. Hence, similarly configuration, implementation, and interoperability constraints
apply and CU-PAON01 is the new model.

2. Two new models of AI-HART (CC-PAIH02) and AI-HL (CC-PAIX02) modules are introduced to replace
the older models of the AI-HART (CC-PAIH01) and AI-HL (CC-PAIX01) modules. The new models
support both single-ended and differential inputs.

3. With R410, a new model of HART Analog Input CC-PAIH51 is introduced. The HART Analog Input CCPAIH51 and Cx-PAIH01 use the same IOM block, that is, AI-HART. The configuration and implementation
mentioned in note 1 applies to the HART Analog Input module.

4. With R410, a new model of HART Analog Output CC-PAOH51 is introduced. The HART Analog Output
CC-PAOH51 and Cx-PAOH01 use the same IOM block, that is., AO-HART. The configuration and
implementation mentioned in note 1 applies to the HART Analog Output module.

5. With R410, a new model of Digital Input 24V DC CC-PDIL51 is introduced. The Digital Input 24V DC CCPDIL51 and Cx-PDIL01 use the same IOM block, that is, DI-24. The configuration and implementation
mentioned in note 1 applies to the Digital Input 24V module.

6. With R410, a new model of Digital Output 24V DC CC-PDOD51 is introduced. The Digital Output 24V DC
CC-PDOD51 and Cx-PDOB01 use the same IOM block, that is, DO-24B. . The configuration and
implementation mentioned in note 1 applies to the Digital Output 24V module.

7. Starting with R430, a new model of Low Level Analog Input Mux CC-PAIM51 is introduced.

8. The UIO (CC-PUIO01) has 32 configurable input or output channels. Each channel can be configured as
one of the following:
• Analog Input (0-20mA or 4-20mA active)
• Analog Output (4-20mA active)
• Digital Input (with or without line monitoring)
• Digital Output (with or without line monitoring)

9. The UIO (CC-PUIO31) module is introduced with R432 and has 32 configurable input or output channels
that are identical to the UIO (CC-PUIO01) module.

Specifications:

Product Name:CC-PAIH02

Input Channels: 16
A/D Converter Resolution: 16 bits
Common Mode Rejection Ratio: 70 dB (DC to 60 Hz)
Common Mode Voltage: -6 to +5 V peak (DC to 60 Hz)
Normal Mode Rejection Ratio: 19 dB
Input lmpedance: > 10 MQ
Scan Rate: 50 ms
Hardware Accuracy:

• ±0.075% of full-scale (23.5°± 2°C)
• ±0.15% of full-scale (0 to 60°C)

Frequently Asked Questions:
1.What is the Redundant IOTA  for CC-PAIH02?
   CC-TAID11
2. What is replacement for CC-PAIH01?
    CC-PAIH02

Datasheet Link:

CC-PAIH02 Honeywell 51405038-375 Analog Input with HART PDF Datasheet
