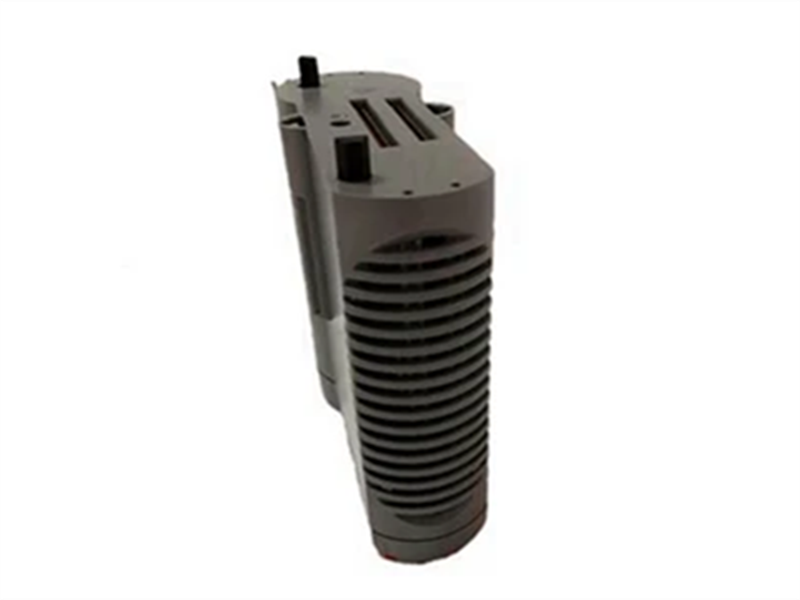

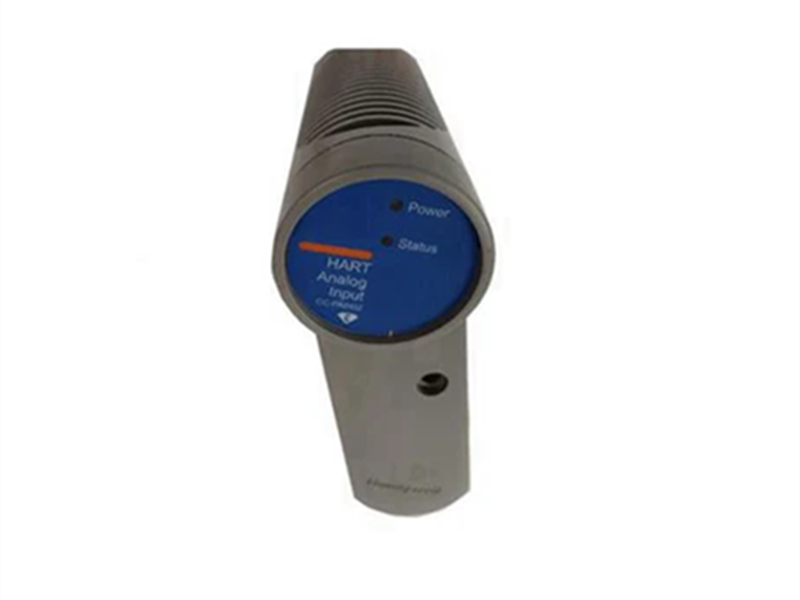

CC-PAIM01 Honeywell 51405045-175 Low Level Input Multiplexer

Description:

The Honeywell CC-PAIM01 is a 16-channel low-level analog input module designed for the Experion Series C Distributed Control System (DCS). With a PMIO(Process Manager Input/Output) interface, supporting up to 64 input points. It iscapable of handling both thermocouple and RTD input signals and offers featuressuch as cold junction compensation and OTD (Open Thermocouple Detection)protection.

This module facilitates the integration of low-level analog signals, such as those from thermocouples and RTDs, into the control system, enabling precise monitoring of temperature and other process variables.

Parameters:

Model Name:CC-PAIM01

Product No:51405045-175

Number of Channels: Up to 64 channels
Input Voltage: 24 V DC
Input Current: 10 mA per channel
Input Range: -50 to 1500°C (-58 to 3022°F)
Accuracy:+0.5°C (+1°F)
Resolution: 0.1°C (0.2°F)
Common Mode Voltage (CMV): +/-250 VDC or VAC RMS
Common Mode Rejection Ratio (CMRR): 120 dB min
Voltage, Channel-to-Channel, DC to 60 Hz: +/-250 VDC or VAC RMS
Crosstalk, DC to 60 Hz: 80 dB
NMRR at 50/60 Hz: 60 dB min

Features:

• Fast 1-second PV scanning for efficient data acquisition.
• Configurable OTD protection to safeguard against open thermocouples.
• Fully isolated channels to prevent interference.
• Low error rate with a 0.05% full-scale gain error.
• Excellent temperature stability at +/-20 ppm/°C.
• Long-term drift of 500 ppm for reliability.

Datasheet Link:

CC-PAIM01 Honeywell 51405045-175 Low Level Input Multiplexer Pdf Datasheet
