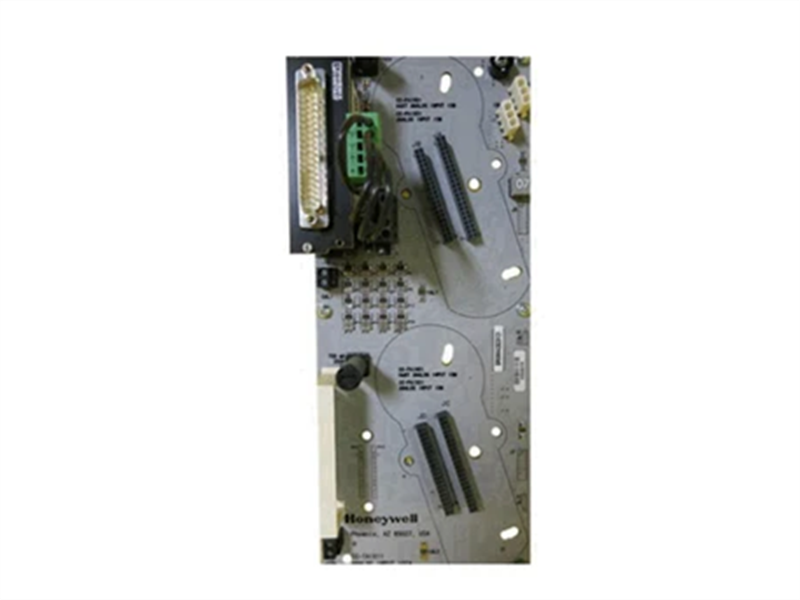

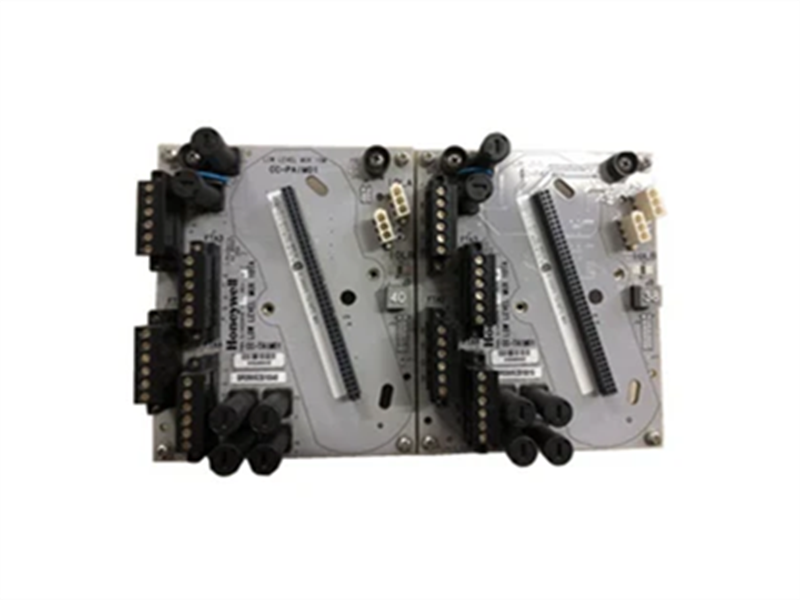

CC-TAIM01 Honeywell 51305959-175 Low Level MUX IOTA Module

Description:

The Honeywell CC-TAIMo1 (51305959-175)is a lowlevel analog input multiplexer(MUX) module from the lOTA Series. It is designed to interface wih a wide range of sensors and transducers, delivering high-density signal acquisition for process control systems.This module efficiently switches between multiple analog input signals, providing flexible measurementcapabilities.

Specifications:

Module Name. : CC-TAIM01

Input Channels: 64 fully isolated analog inputs
Input Type: Low-level analog signals
Scan Rate: Up to 64 channels per second
Isolation: Channel-to-channel and channel-to-system
Input Channels: 8
Input Voltage Range: 0-10V or 0-20mA
ADC Resolution: 16-bit
Scan Rate: 1 kHz per channel
Accuracy: +0.1% of full scale
Input Impedance:

• Voltage: >1 MO
• Current: 2500 Q

Features:

• High Channel Density

Supports 64 isolated analog inputs for compact signal acquisition.

• Fast Data Acquisition

High scan rate ensures real-time responsiveness in control systems.

• Low Noise Design

Engineered to minimize electrical interference and signal distortion.

• Reliable Isolation

Prevents crosstalk and enhances system safety.

• Modular Integration

Compatible with Honeywell's IOTA and Series C platforms.

• Industrial Durability

Built for continuous operation in harsh process environments.

Datasheet Link:

CC-TAIM01 Honeywell 51305959-175 Low Level MUX IOTA Module PDF Datasheet
