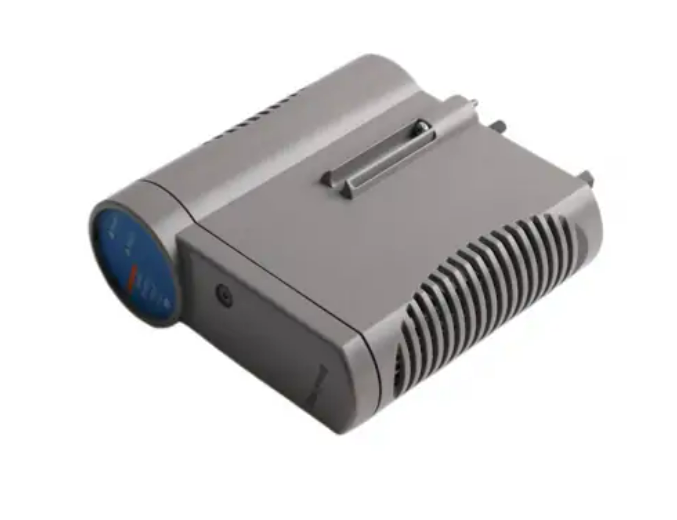

CC-PAOH01 Honeywell 51405039-175 HART Analog Output Module

Description:

The CC-PAOH01 51405039-175 is a HART Analog Output Module fromHoneywell.

It is a versatile and reliable module that can be used in a widevariety of applications. It is a valuable asset for any control system thatrequires accurate and reliable measurement of analog signals.

The module offers robust, high-accuracy performance for critical automationsystems, ensuring smooth and efficient operation in challenging industrial environme.

Specifications:

Product No. : CC-PAOH01

Output Type:4-20 mA
Output Channels: 16
Output Ripple: < 100mVpeak-to-peak at power line frequency, across 250 Q load
Output Temperature Drift: 0.005% of Full Scale/C
Output Readback Accuracy: t4% of Full Scale
Output Current Linearity:  O.O5% of Full Scale nominal
Resolution:  0.05% of Full Scale
Calibrated Accuracy:  0.35% of Full Scale (25C)including linearity
Directly Settable Output Current Range: O mA,2.9 mA to 21.1 mA
Maximum Resistive Load: 800 ohms (24 Vsupply= 22 VDC through28VDC)
Maximum Output Compliant Voltage: 16 V
Maximum Open Circuit Voltage: 22 V
Response Time (DAC input code to output): Settles to within 1% of final value within 80 ms
Gap (0 mA) of Output to Field on Switchover: 10 ms maximum (applies to Redundancy only)

Features:

• Extensive self-diagnostics
• Optional redundancy
• HART-capable, multivariable instruments
• Multiple modems for fast collection of control variables
• Safe-state(FAlLOPT)behaviors configurable on a per-channel basis
• Output read-back and alarm on discrepancy
• Non-incendive output
