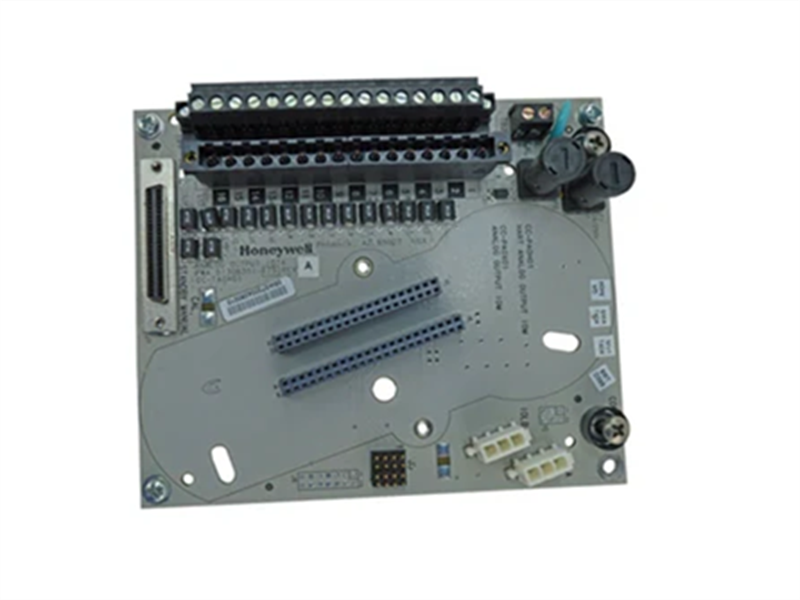

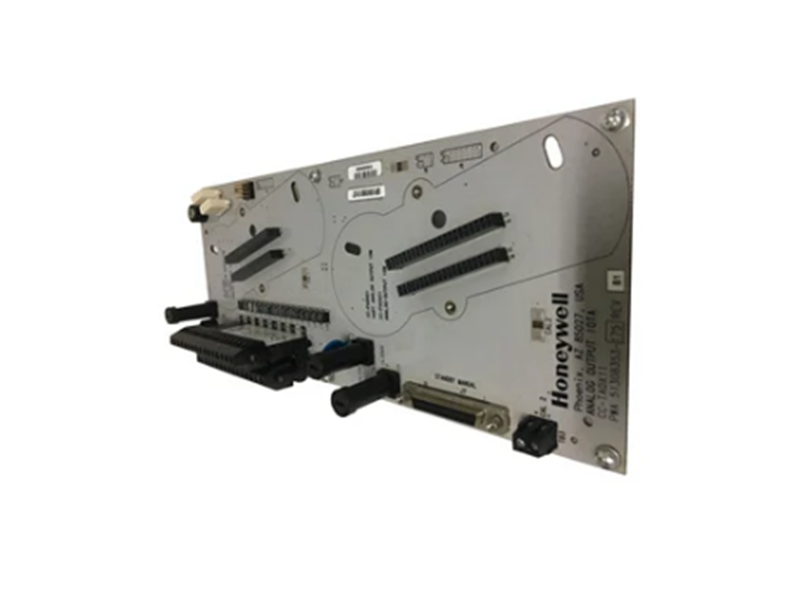

CC-TAOX11 Honeywell 51308353-175 Analog Output Module

Description:

The Honeywell CC-TAOX11 Analog Output Module is a key component in Honeywells Experion and TDC 3000control systems, it supports 16 channels of 4-20 mA output, making it suitable forcontrolling various actuators, valves, and other analog devices requiring accurate signaltransmission.

designed to provide accurate and stable analog signals for industrial process control.Itefficiently converts digital controller commands into precise analog outputs, ensuring smooth and reliable plant
operation.

The Honeywell CC-TAOx11 Analog Output Module is designed to provide precise analog signal outputs inindustrial automation applications.

Specifications:

Product No. : CC-TAOX11

Output Channels: 8 isolated channels
Signal Range : 4–20 mA DC
Load Resistance: 0–600 Ω
Resolution:12-bit
Accuracy:±0.1% of span
Update Rate:10 ms per channel
Isolation Voltage:500 VDC channel-to-channel
Power Consumption:5 W typical
Operating Temperature: 0°C to +60°C
Mounting Type:DIN-rail or chassis mount
Certifications:CE, UL, RoHS compliant
Output Readback Accuracy: ±4% of Full Scale
Output Current Linearity:± 0.05% of Full Scale nominal
Resolution:± 0.05% of Full Scale

Features:

• Analog Output Channels

Provides 16 channels of 4-20 mA analog output

• Output Type

4-20 mA for compatibility with standard analog devices

• Low Output Ripple

Less than 100 mV peak-to-peak at power line frequency, across a 250 S2 1oad.

• Compatibility

Designed to integrate seamlessly with Honeywell control systems

• High Accuracy

Ensures precise control and monitoring of analog devices

• Diagnostic Capabilities

Supports diagnostic features for enhanced system monitoring and maintenance.

Datasheet Link:

CC-TAOX11 Honeywell 51308353-175 Analog Output Module PDF Datasheet
