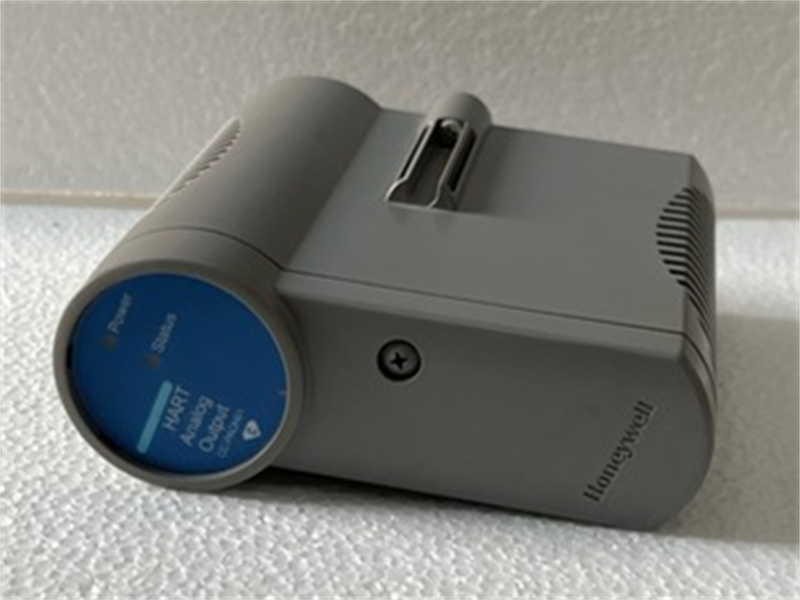

CC-PAOH01 Honeywell 51405039-175 HART Analog Output Module

Description:

The Honeywell CC-PAOH01 is a high-performance analog output module designed for Experion PKS systems and C300 controllers. This module provides eight independently isolated output channels, primarily for driving control valves, inverter actuators, and other process equipment requiring 4-20mA current signals. It is an invaluable asset for any control system that requires accurate and reliable measurement of analog signals.

Integrated HART functionality supports bidirectional digital communication with intelligent field devices, enabling remote configuration, advanced diagnostics, and instrumentation status monitoring directly from the control room.

Its unique "high-current" design ensures signal stability during long-distance transmission or driving high-impedance loads, effectively reducing control errors caused by signal attenuation. As an I/O component of the C300 series, the CC-PAOH01 supports in-line hot-swapping and redundant configuration, significantly improving system availability. The module has built-in diagnostics that monitor open circuits, short circuits, and power anomalies in real time, and uploads alarm information to the operator station via the controller.

Parameters:

Efficiency: ≥85%
Operating Temperature: -20℃~+70℃
Resolution: 16-bit (including sign bit)
Input Voltage Range: -10V to +10V
Input Current Range: 4mA to 20mA
Accuracy: ±0.25% of full scale
Resolution: 12-bit
Update Rate: 100ms
Number of Channels: 16 analog outputs
Output Type: 4-20mA, 0-20mA, 1-5V
HART Communication: Supported
Power Supply: 24VDC
Protection Rating: IP66
Max Resistive Load: 800 Ω
Max Compliant Voltage: 16 V

Features:

• High Efficiency and Energy Saving

Honeywell power adapters employ advanced circuit design, achieving high conversion efficiency and low energy loss.

• High Reliability

Utilizing high-quality components and undergoing rigorous testing ensures high reliability and stability.

• Safety Protection

Equipped with multiple protection functions including overcurrent, overvoltage, and short-circuit protection, ensuring equipment and personnel safety.

• Wide Compatibility

Suitable for various electronic devices, such as PLCs, sensors, and actuators.

• Enhanced Connectivity

Supports the HART communication protocol, enabling remote configuration and diagnostic access to connected HART devices.

• Multi-Channel Functionality

Provides 16 analog output channels to meet various signal processing needs.

• High Precision

Offers superior signal conversion accuracy, ensuring precise process control.

• Rugged and Durable

Constructed with a robust IP66-rated enclosure, it can withstand harsh industrial environments, ensuring reliable operation under extreme conditions.

• Simplified Configuration

Easy-to-use configuration software simplifies setup and maintenance, minimizing downtime.

• HART Communication Support

This module complies with the HART protocol and enables bidirectional communication with HART-enabled field instruments.

Frequently Asked Questions:

Q1.Is there stock available or how long is the lead time?
Lead time: In stock

Datasheet Link:

CC-PAOH01 Honeywell 51405039-175 HART Analog Output Module  PDF Datasheet
