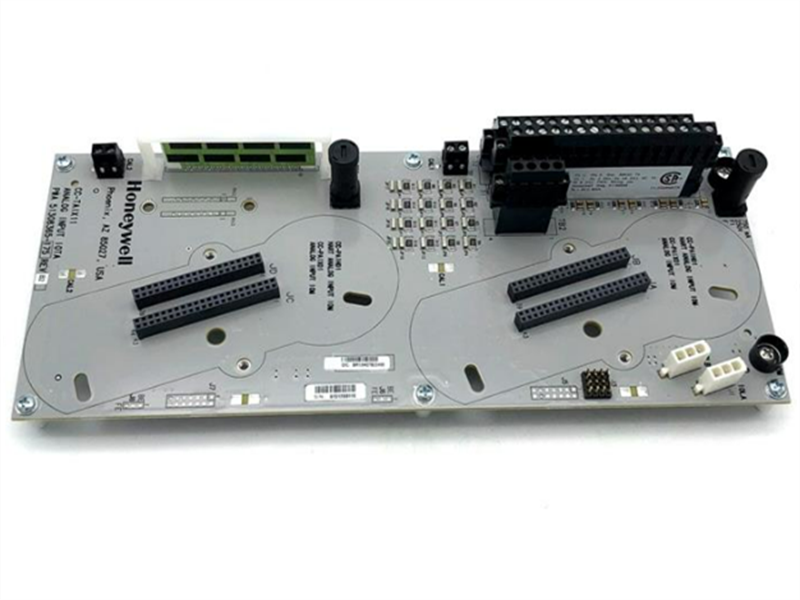

CC-TAIX11 Honeywell 51308365-175 Redundant Analog Input IOTA

Description:

The Honeywell CC-TAIX11 is a single-channel HART analog output module. Designed for connection to HART transmitters and sensors, it provides a 4-20mA output signal. It offers connectivity and redundancy support, ensuring high availability for process control systems.

By providing redundant analog input channels, it ensures continuous data acquisition, preventing signal loss or module failure.

Specifications:

Model Number: CC-TAlX11
Type: Analog Input IOTA Redundant Module Channels: 16 redundant analog input channels Signal Range: 0-10 V, +10 V, 0-20 mA, 4-20 mA
Resolution: 16-bit high precision
 Input Impedance: > 250 kO (voltage input)
Compatibility: Works with CC-PAlX01 analog input module
Mounting: DIN rail installation
 Connection Type: Screw terminals, cable to lOM
Output type: 4-20mA
Output current: 195mA
Output voltage: 24Vdc
Output impedance: <100
Accuracy:+0.1%
Linearity: +0.05%
Temperature range: -20 to 60 degrees Celsius
Storage temperature range: -40 to 85 degrees Celsius.
Humidity: 0 to 95% RH, non-condensing

Features:

• Redundancy

Ensures failover readiness for uninterrupted analog input acquisition

• Reliability

Maintains accurate data even if one input path fails

• Integration

Seamless with Honeywell Experion C300 systems

• Ease of Use

Compact design simplifies installation and maintenance

• High Fidelity

16-bit resolution for precise analog signal measurement

• Scalability

Supports multiple modules for expanded control system capacity

• HART support

The module supports the HART protocol, allowing for two-way communication between the module and the HART transmitter or sensor. This allows for the configuration andmonitoring of the HART device, as well as the retrieval of diagnostic information.

• High accuracy

The module has an accuracy of 0.1%, making it ideal for applications where
precise measurement is required.

• Rugged construction

The module is constructed from rugged materials that can withstand harshenvironmental conditions.

• Easy to use

The module is easy to install and configure, with a simple plug-and-play design.

Datasheet Link:

CC-TAIX11 Honeywell 51308365-175 Redundant Analog Input IOTA PDF Datasheet
