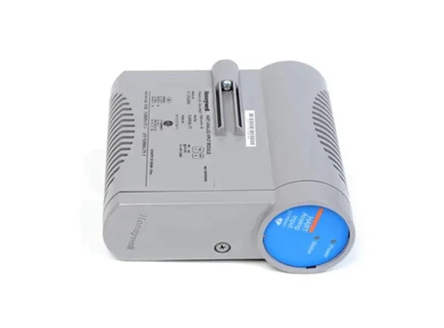

CC-PDOB01 Honeywell 51405043-175 Digital output 24V Module

Description:

The Honeywell CC-PDOB01 is a high-performance Digital Output Module designed for the Experion PKS C300 controller system. It provides 32 channels of 24 VDC digital outputs, offering reliable and precise control for a wide range of industrial process applications.

As part of Honeywell’s Series C I/O, this module is engineered for seamless integration, featuring a bussed power design that simplifies wiring and installation.

With robust on-board diagnostics and a wide operating temperature range, the CC-PDOB01 ensures high availability and dependable performance in demanding industrial environments, making it an essential component for actuating field devices such as solenoids, relays, and indicators within a distributed control system (DCS).

Specifications:

Product No. : CC-PDOB01

Output Channels: 32
Load Voltage: 30VDC
MaximumGalvanic Isolation: 1500 VAC RMS or 1500 VDC
On-State Voltage: 24 V(typ), load current @0.5A
Off-State Voltage: OV VDC (max), 3.3 VDC (max)under no-load condition
Off-State Leak Current: O.5 uA (max)
Turn-On/Turn-Off Time: 10ms (max)
Voltage Range:15-30 VDC
Current Capacity: 0.5A/channel6A/module
Response Time:10 ms max

Features:

-Galvanic isolation
-Socketed relays
-Isolated Dry Contact
-Jumper selection between NO and NC contacts
-Counter EMF Snubbing Circuit
-LED indication for each channel ON condition

Datasheet Link:

CC-PDOB01 Honeywell 51405043-175 Digital output 24V Module PDF Datasheet
