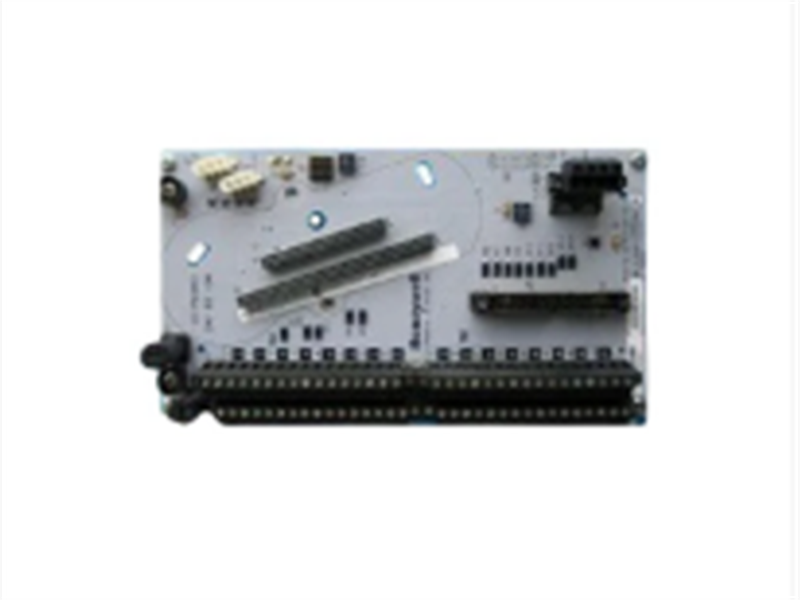

CC-TAIX11 ABB 51308365-175 Redundant Analog Input Module

Description:

The Honeywell CC-TAIX11 Analog Input IOTA (Input/Output Terminal Component) Redundancy Module is designed to provide reliable analog signal input functionality and redundancy support. It ensures continuous data acquisition and prevents signal loss or module failure by providing redundant analog input channels. It is a crucial component of industrial control systems, providing robust performance and redundancy for critical applications, with enhanced fault tolerance and high availability. This module can acquire various analog signals, such as temperature, pressure, and flow, providing accurate, reliable, and continuous monitoring of critical industrial processes.

Specifications:
Model Number: CC-TAlX11
Type: Analog Input IOTA Redundant Module
Channels: 16 redundant analog input channels
Signal Range: 0-10 V, +10 V, 0-20 mA, 4-20 mA
Resolution: 16-bit high precision
Input Impedance: > 250 kO (voltage input)
Compatibility: Works with CC-PAIX01 analog input module
Mounting: DIN rail installation
Connection Type: Screw terminals, cable to IOM
Accuracy: +0.1%Repeatability: +0.02%
Common Mode Rejection Ratio: 70 dB (dc to 60 Hz, 500 Ω source imbalance)
Common Mode Voltage: -6 to +5 V peak (dc to 60 Hz)
A/D Converter Resolution: 16 bits

FEATURES:

• Redundancy

Ensures failover readiness for uninterrupted analog input acquisition

• Reliability

Maintains accurate data even if one input path fails

• Integration

Seamless with Honeywell Experion C300 systems

• Ease of Use

Compact design simplifies installation and maintenance

• High Fidelity

16-bit resolution for precise analog signal measurement

• Scalability

Supports multiple modules for expanded control system capacity

• Analog Input Channels

Provides 16 analog input circuits

• Compatibility

Designed to integrate seamlessly with Honeywell control systemsHigh

• Compact Size

12" size footprint suitable for installation in control cabinets or racks
