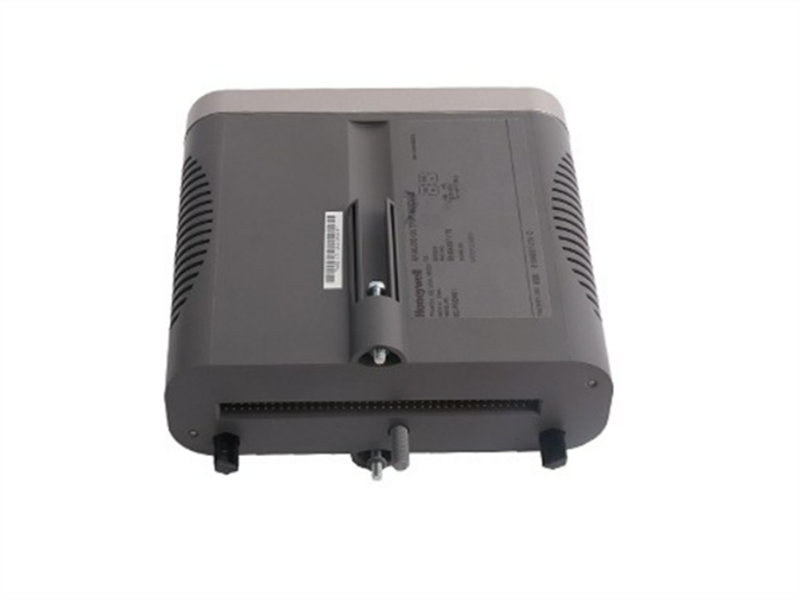

CC-TAON01 HONEYWELL 16-point high level Analog Output

Description:

The Honeywell CC-PAON01 is a 16-point analog output module designed to deliver high-level constant current to actuators and recording/indicating devices in industrial automation systems. It delivers constant current (4-20 mA) to actuators and recording/indicating devices, offeringextensive self -diagnostics, optional redundancy, and safe-state (FAILOPT) behaviors configurable per channel.It ensures precise control of analog signals, making it essential for applications requiring accurate and reliable signal conversion.

Specifications:

Module name: CC-TAON01

Output Channels: 16 channels
Resolution: 16-bit DAC for fine output granularity
Output Range: ±10 V typical, configurable per channel
Output Current: Up to 20 mA per channel
Power Supply: 24V DC ±10%
Output Ripple: <100 mV peak-to-peak
Output Temperature Drift: 0.005% of Full Scale/°C
Output Readback Accuracy: +4% of Full Scale
Output Current Linearity: +0.05% of Full Scale
Resolution: +0.05% of Full Scale
Calibrated Accuracy: +0.35% of Full Scale at 25°C
Settable Output Range: 0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load: 800 O
Maximum Output Compliant Voltage: 16 V
Maximum Open Circuit Voltage: 22 V
Response Time: <80 ms to settle within 1% of final value
Switchover Gap: <10 ms

Features:

• Precise Control

16-bit DAC ensures accurate analog signal generation

• Flexible Output

Supports both voltage and current outputs for diverse applications

• Fast Response

Sub-millisecond update speed for real-time control

• Noise Reduction

Isolation minimizes interference between channels

• Compact Build

Lightweight and space-efficient for easy installation

• Scalable Architecture

Expandable for larger automation systems

• Extensive Self-Diagnostics

Comprehensive diagnostics for reliable operation.

• Safe -State Configurations (FAILOPT)

Per-channel configuration to either HOLD LAST VALUE or SHEDO a SAFE VALUE.

• Output Read-Back and Alarm

Detects and alarms on output discrepancies.

• Open-Wire Detection

Detects and indicates open field wires with a Channel Soft Failure signal.

Datasheet Link:

CC-TAON01 HONEYWELL 16-point high level Analog Output PDF Datasheet
