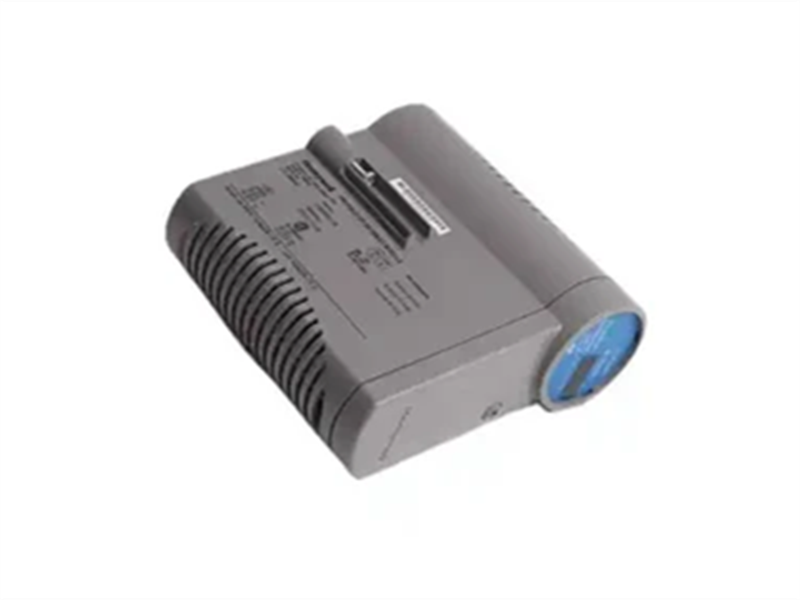

CC-PAON01 HONEYWELL 51410070-175 C300 Analog Output Module

Description:

The Honeywell CC-PAON01 51410070-175 is a high-level analog output module designed for the Experion C300 control system. It provides 16 channels of 4–20 mA output, enabling precise control of field devices such as actuators and valves.

It delivers constant current (4-20 mA) to actuators and recording/indicating devices, offeringextensive self-diagnostics, optional redundancy, and safe-state (FAILOPT) behaviors configurable per channel.

This module is ideal for applications requiring accurate analog signal transmission and robust diagnostics.

Specifications:

Product No. : 51410070-175

Module name: CC-PAON01

Output Channels: 16 channels
Signal Type: Voltage and current outputs
Resolution: 16-bit DAC for fine output granularity
Output Range: ±10 V typical, configurable per channel
Output Current: Up to 20 mA per channel
Isolation: Channel-to-channel isolation for safe operation
Response Time: <1 ms output update speed
Power Supply: 24V DC ±10%
Output Type: 4-20 mA
Output Ripple: <100 mV
Output Temperature Drift: 0.005% of Full Scale/°C
Output Readback Accuracy: +4% of Full Scale
Output Current Linearity: +0.05% of Full Scale (nominal)
Resolution: +0.05% of Full Scale
Calibrated Accuracy: 0.35% of Full Scale at 25°C

Features:

• Precise Control

16-bit DAC ensures accurate analog signal generation

• Flexible Output

Supports both voltage and current outputs for diverse applications

• Fast Response

Sub-millisecond update speed for real-time control

• Noise Reduction

Isolation minimizes interference between channels

• Compact Build

Lightweight and space-efficient for easy installation

• Scalable Architecture

Expandable for larger automation systems

• Extensive Self-Diagnostics

Comprehensive diagnostics for reliable operation.

• Safe -State Configurations (FAILOPT)

Per-channel configuration to either HOLD LAST VALUE or SHEDO a SAFE VALUE.

• Output Read-Back and Alarm

Detects and alarms on output discrepancies.

• Open-Wire Detection

Detects and indicates open field wires with a Channel Soft Failure signal.

Datasheet Link:

CC-PAON01 HONEYWELL 51410070-175 C300 Analog Output Module PDF Datasheet
