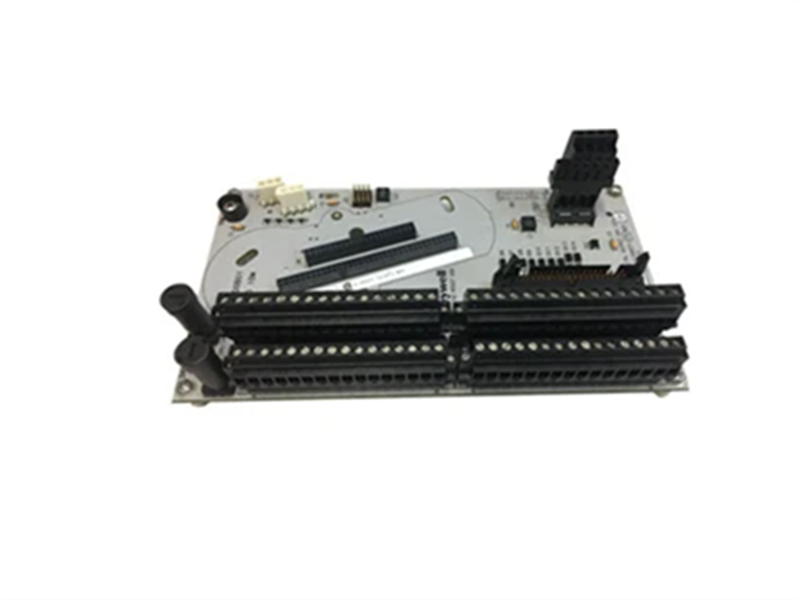

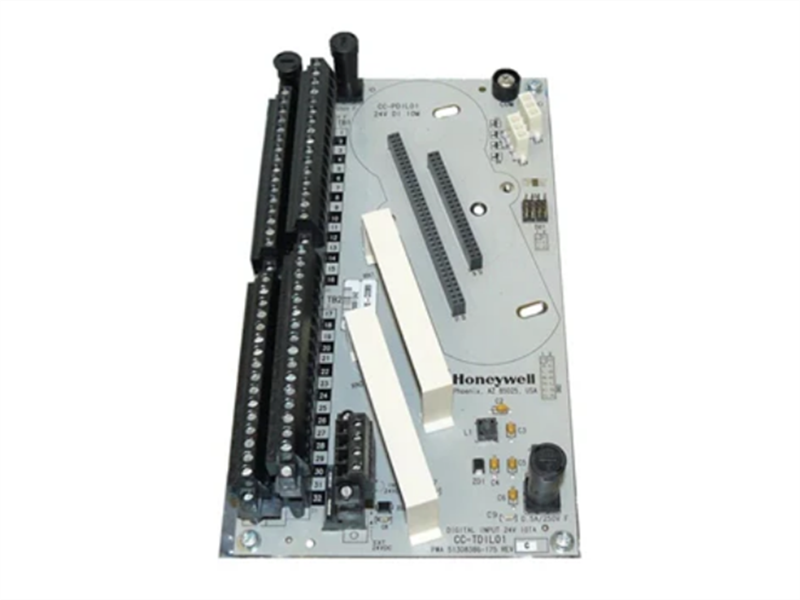

CC-TDIL01 Honeywell Digital Input Module

Description:

The Honeywell Cc-TDlL01 51308386-175 is a digital input 1OTA (Input/OutputTermination Assembly) board that is part of the Honeywell Experion PKSC300 process control system. It is a high-performance 1OTA board that isdesigned for demanding applications.

It providesreliable and high-performance input capabilities for monitoring discrete signals.It supports a variety of 1/0 types,including analog, discrete, and thermocouple.It facilitates theintegration and monitoring of digital signals from various sensors and devices, ensuring accurate and responsive input processing. It captures discrete 24VDC signals from field devices with high reliability and isolation.

Specifications:

Product No. : CC-TDIL01

Operating temperature range: -40C to 85C
Power supply:24 VDC
Number of 1/O points: 8
I/O type: Analog, discrete, thermocouple
Communication protocols: HART, Modbus, Profibus
Input voltage range:l0V, 0-20mA, 4-20mA
Output voltage range: 0-l0V, 4-20mA
Accuracy:t0.l% of full scale
Isolation:2500V AC
Input Channels: 32 channels
Input Channel Scanning(PV): Normal =20ms, Fast = 5ms
Digital Input Resolution for Sequence of Events (SOE): 1 ms
Galvanic Isolation: 1500 VAC RMS or 1500 VDC

Features:

• 24VDC input

Accepts industry-standard 24V DC signals

• Extensive diagnostics

Ensures data integrity and quick troubleshooting.

• Open wire detection

Identifies faulty wiring for preventative maintenance.
Optional redundancy. Enhances system uptime with backup modules (available in select models).

• Flexible power options

Supports internal or external field power for versatile installation.

• Non-incendive field power

Intrinsically safe for hazardous environments.

• Galvanic isolation

Protects against electrical noise and ground loops.

• 16 digital output channels
• Isolation between channels
• Fast response time
• Wide operating temperature range
• High humidity tolerance
• Hot-swappable

Datasheet Link:

CC-TDIL01 Honeywell Digital Input Module PDF Datasheet
