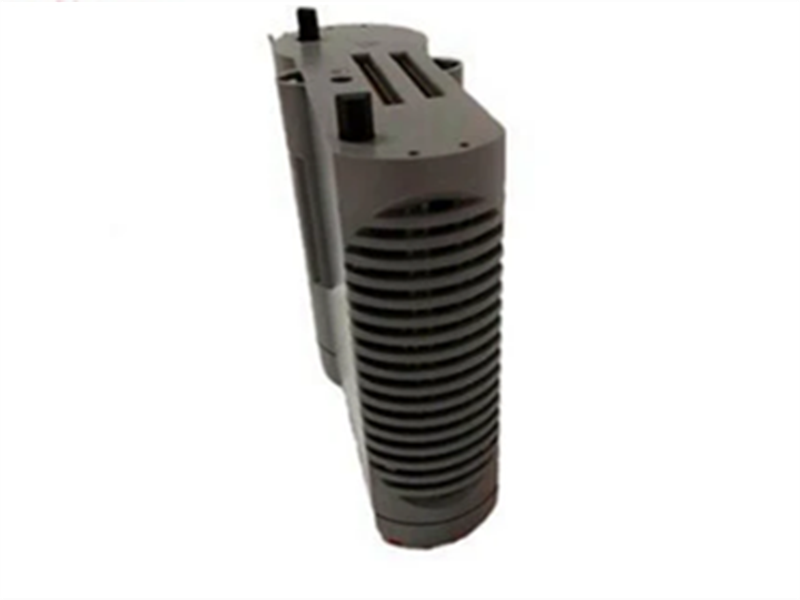

CC-PDIL01 Honeywell Digital Input Module

Description:

The HONEYWElL.Cc-PDILO1is a high-performance enhonced digital input module designed specificlly for Honeywel (C-series industriolautomation systems,inclusingContro Edga pLC on 'Experon Pks DCs.

As a key dato aeauistoncomponent in harsh indostral contro lenvronmens,  specialzesineollecting reaL-fime switching signals
from on-site devices suchas proximily sensors, limit switches,emergency stop buttons, and photoelectric sensors,then converting these signolsinto digital formatsrecognizoble by the system controller, This modulefeatures g robust circouit design with enhanced aonti-interference copobility, enoblingifto mointain acurate signoal acquisitioneven in environments with srong electromosnetic radiation ond severe vologe fluctuotions. Equipped with muttiple independent input chonnels,i supports simutoneousignogcollection for multiple devices, meeting the requirements of complex control systems.

Specifications:

Product No. : CC-PDIL01

Number of input channels: 32
Input voltage: 24VDC
Operating temperature: -40°C to +70°C
Input Channels: 1 channel
Form Factor: 9-inch module
Input Voltage Range: 18VDC to 30VDC
Input Current: <2 mA

Features:

• 24VDC input

Accepts industry-standard 24V DC signals

• Extensive diagnostics

Ensures data integrity and quick troubleshooting.

• Open wire detection

Identifies faulty wiring for preventative maintenance.
Optional redundancy. Enhances system uptime with backup modules (available in select models).

• Flexible power options

Supports internal or external field power for versatile installation.

• Non-incendive field power

Intrinsically safe for hazardous environments.

• Galvanic isolation

Protects against electrical noise and ground loops.

• 16 digital output channels
• Isolation between channels
• Fast response time
• Wide operating temperature range
• High humidity tolerance
• Hot-swappable

Datasheet Link:

CC-PDIL01 Honeywell Digital Input Module PDF Datasheet
