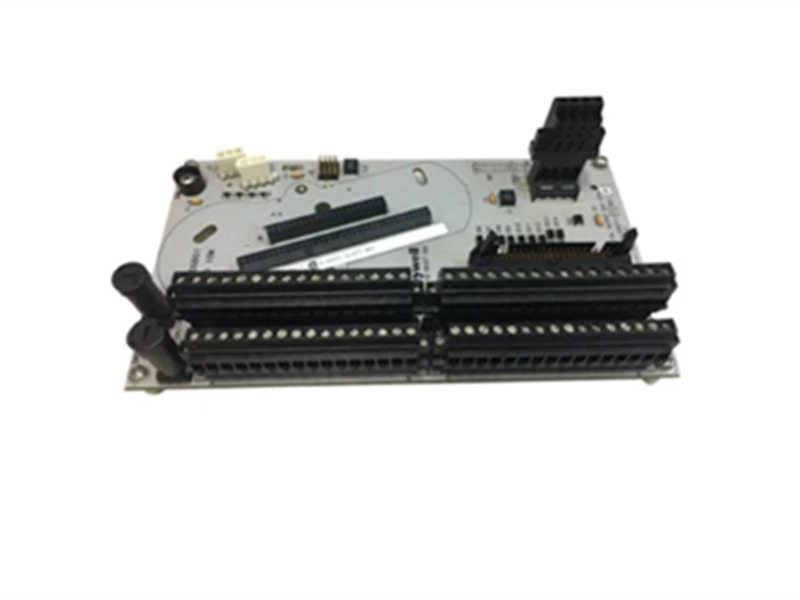

CC-TDIL01 Honeywell Digital Input Module

Description:

The Honeywell CC-TDIL01 is a 32-channel digital input module for the Experion Pks/8 series systems, providing reliable status monitoring and robust isolation for industrial automation. As part of the Honeywell Experion product line, the CC-TDIL01 offers reliable digital signal acquisition capabilities, connecting to a wide range of switches, sensors, and other digital devices.

This module plays a crucial role in automation systems, monitoring and acquiring device switch status, alarm signals, and other digital signals, and transmitting these signals to the control system for processing and analysis. Through precise signal acquisition, the CC-TDIL01 enhances the monitoring capabilities and response speed of automation systems. It facilitates the integration and monitoring of digital signals from various sensors and devices, ensuring accurate and rapid input processing.

Specifications:

Input Voltage: 24V DC
Input Current: 0.190A
Heat Dissipation: 4.22W
Operating Temperature Range: -40°C to +70°C
Storage Temperature Range: -40°C to +85°C
Response Time: Less than 10ms
Isolation Voltage: 1500V AC
Product Type: Digital Input Module
System Compatibility: Experion PKS / Series 8 I/O
Input Channels: 32 digital inputs
Input Type: Dry-contact or voltage-type (system dependent)
Isolation: High-isolation field-to-logic protection
Signal Conditioning: Built-in debounce and noise filtering

Features:

• High-density inputs

32 digital input channels for efficient panel utilization.

• Strong electrical isolation

Protects controller logic from field interference.

• Precise status detection

Filtering ensures clear and reliable digital signal acquisition.

• Industrial-grade durability

Coated circuitry resists dust, moisture, and electrical noise.

• Hot-swappable

Supports hot-swappable modules in the 8 Series system.

• High reliability

Industrial-grade design ensures stable operation in harsh industrial environments, guaranteeing control system reliability.

• Flexible input types

The CC-TDIL01 supports multiple input types, interfacing with various digital devices to meet diverse application needs.

• Strong anti-interference capability

Isolation design effectively suppresses electromagnetic interference, ensuring stable and reliable signal transmission.

• Easy integration and maintenance

Standard I/O module size facilitates installation and replacement. Honeywell provides comprehensive technical support and maintenance services to ensure users fully utilize the module's performance.

Datasheet Link:

CC-TDIL01 Honeywell Digital Input Module PDF Datasheet
