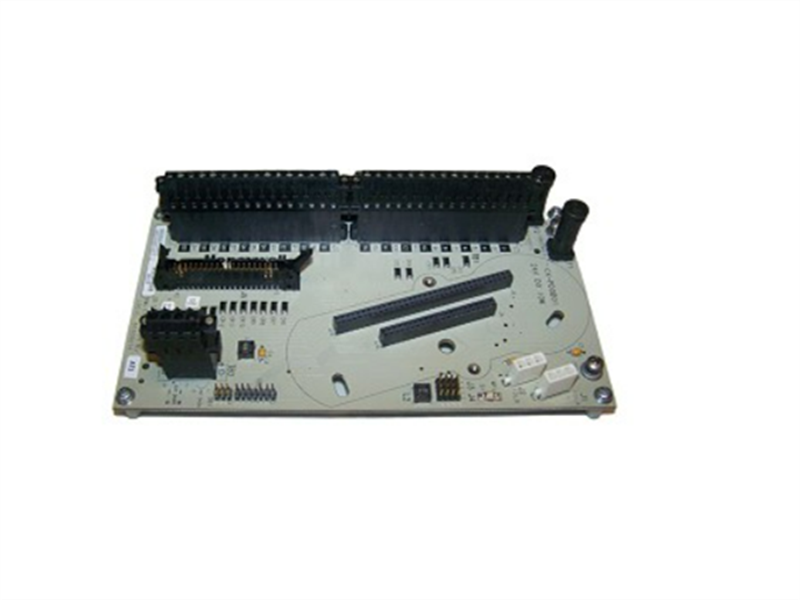

CC-TDOB01 Honeywell 51308371-175 Digital Output Module

Description:

The Honeywell CC-TDoBo1 is a robust digital output (D0) module designed for seamless integrationwithin Honeywell's Experion@ Series C I/0 system. This module provides reliable control capabilitiesfor a wide range of industrial devices such as valves, pumps, and alarms, catering to diverseindustrial applications.

This module efficiently converts digital signals intophysical actions, controlling devices like valves, motors, and lights in process and machine automation applications.It provides 16 high-speed, isolated digital outputs, suitable for controlling various fielddevices in industrial automation applications. The module supports efficient and reliable operation in harshenvironments.

It is used to interface digital output signals to the TPS DCS, such as those for turningon or off motors, solenoids, and contactors.

Specifications:

Product No. : CC-TDOB01

Part Number: 51308371-175

Product Type:Digital Output Module
Output Channels: 16 or 32 channels (depending on
configuration)
Output Voltage:24 VDC
Output Current: Typically 100mA per channel
Hold State Feature: Retains the output state during faults or CPU instruction loss
Output Channels:16
Type: Isolated, sinking/source (PNP/NPN)o
Maximum Current per Channel: 2 A
Maximum Voltage per Channel: 30 V DC
Voltage: 24V DC
Current Consumption: 50mA(max)
Operating Temperature:o Range:-40C to +70C
Storage Temperature:o Range:-40C to+85C

Features:

-16 digital output channels
-High output current
-Isolation between channels
-Fast response time
-Wide operating temperature range
-High humidity tolerance
-Hot-swappable

Datasheet Link:

CC-TDOB01 Honeywell 51308371-175 Digital Output Module PDF Datasheet
