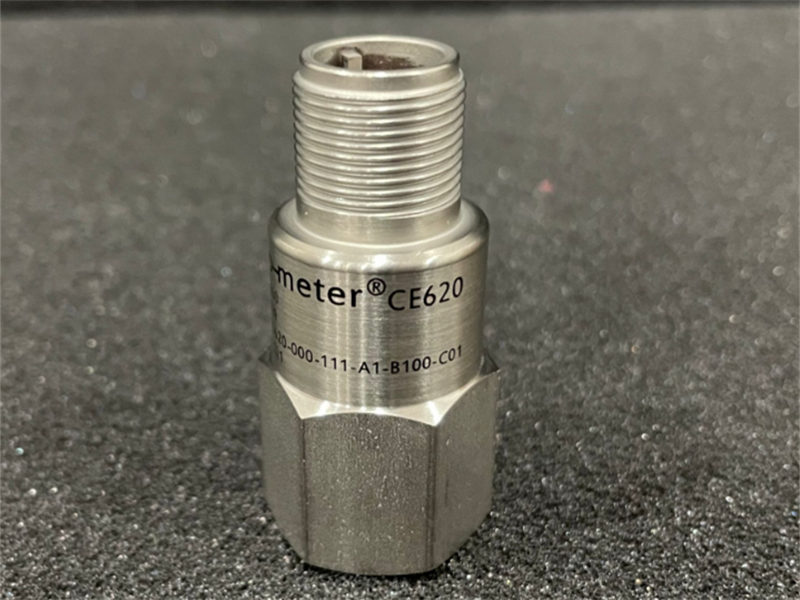

CE620 Vibration 444-620-000-111 Piezoelectric Accelerometer

Description:

The CE620 piezoelectric accelerometer with integrated electronics from Meggitt's vibro-meter® product line is a general-purpose vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments.

The CE620 is an industry standard IEPE (integrated electronics piezo electric) vibration sensor that requires a constant current power supply and provides a dynamic vibration output signal (AC voltage) on a bias level (DC voltage).

It is available with a sensitivity of either 100 or 500 mV/g.

The CE620 is available as a sensor only or fitted with an integral cable that is protected by a stainless-steel overbraid. Sensor only versions allow one of a range of different cable assemblies to be used to connect the sensor to the monitoring system, depending on the application and environment.

Parameters:

Output Type: Voltage (Two-wire)
Sensitivity: 100 or 500 mV/g
Operating Temperature Range:
-55 to 120°C (-67 to 248°F) or -55 to 90°C (-67 to 194°F)
Frequency Response:
0.5 to 14000 Hz or 0.2 to 3700 Hz
Sensitivity Tolerance: ±5%
Dynamic Measurement Range: ±80 g or ±16 g
Linearity: ±1%
Lateral Sensitivity: <5%
Resonant Frequency: 25 or 16 kHz
Electronic Component Type: Integrated
Hazardous Area Certification: Ex ia
