Manufacture |
Vibration |
|

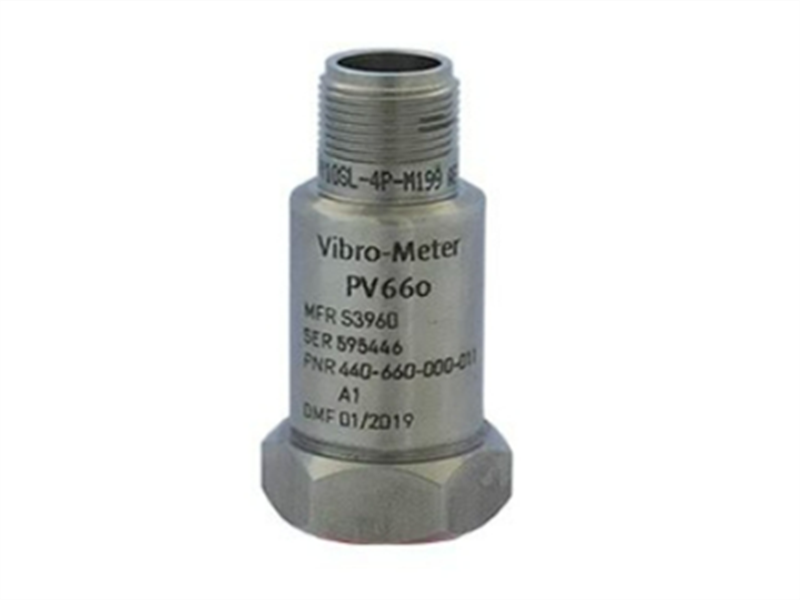

Model |
PV660 |
| PN No. |
440-660-000-011-A1 |
|
Catalog |
NIL |
|
Description |
Piezoelectric Accelerometer |
| Origin |
Switzerland |
| HS CODE |
85389091 |
| Dimension |
12*11*8 (CM) |
| Weight | 0.65 kg |
Description:
The PV660 440-660-000-011-A1 piezoelectric velocity sensor is an industry-standard IEPE velocity sensor. It utilizes a piezoelectric sensing element, integrated electronics, and voltage output. Its sensitivity is 4 mV/mm/s, and it is available in a standard (non-explosion-proof) version. It is specifically designed for monitoring and protecting mechanical equipment in harsh industrial environments.
Suitable for vibration measurement of auxiliary equipment such as compressors, gearboxes, motors, pumps, and fans. Sensor body only.
Parameters:
Power Supply Voltage: Universal 18-30VDC
Operating Temperature: -30°C to +100°C
Protection Rating: IP67/IP68
Output Type: Voltage (Two-wire)
Sensitivity: 4mV/mm/s
Operating Temperature Range: -13 to 284°F | -25 to 140°C
Frequency Response: 5 to 4000 Hz
Sensitivity Tolerance: +5%
Dynamic Measurement Range: To be determined
Linearity: <1% within full scale
Resonant Frequency: 18 kHz
Features
Designed for genera purpose vibraton measurement, typicaly balance of plant (OP)machinery such as compresors, gearboxes, motors, pumps and fansIndustry standard IEPE (integrated electronics piezo electric) vibration sensor
Dynamic voltage output signal (4 mV/mm/s) suitable for spectral analysis
Typically connected to a machinery monitoring system for protection and/or condition monitoring applicationsIP67 protection rating
Datasheet Link:
PV660 Vibration 440-660-000-011-A1 Piezoelectric Accelerometer PDF Datasheet
