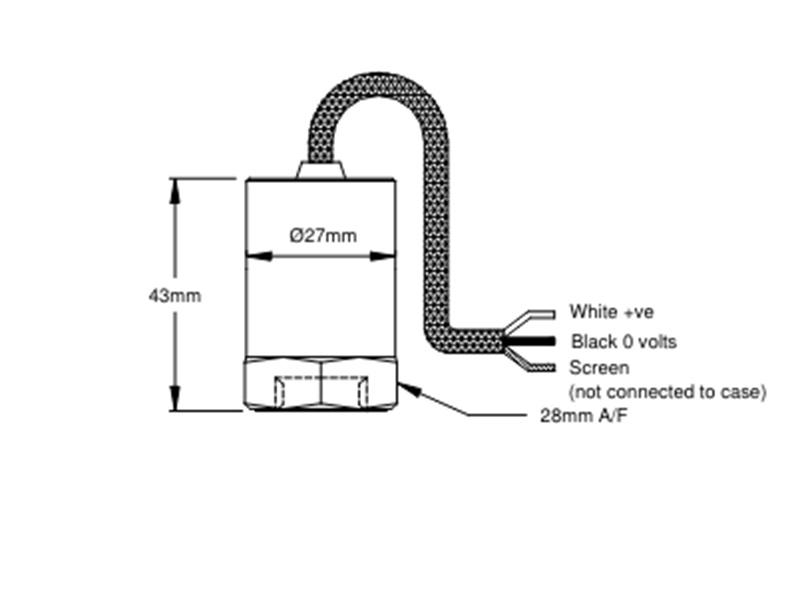

CI185 185-020-AT-CA-M001 Vibration Acceleration sensor

Description:

Output Current 4-20mA DC proportional to RMS velocity (mm/s)
Velocity Range See table below
Frequency Response 2 Hz to 1 kHz ±10 %
Dynamic Range 50g peak
Mounted Resonance 5 kHz min
Isolation Base isolated
Operating Temp Range -30 to 90 ºC
Temperature Sensitivity 0.08 %/ºC
Transverse Sensitivity Less than 5%
Supply Voltage 12-32 Volts DC (4-20 mA) Loop powered
Standard Cable length 5 meters armoured PTFE for AT and EX versions
Maximum Cable length 1000 meter, for EX version see ATX009
Mating Connector 2 pin MS for CT version
Case Material Stainless steel
Weight 150 gms (nominal)
Sealing IP67
Mounting Torque 8 Nm

Certificate Details: Group I EEx ia I Baseefa02ATEX0245
 Group II EEx ia IIC T6 BAS02ATEX1057
System Connection Drawing ATX009
Barrier MTL 787S, BAS01ATEX7202 or P&F Z787, BAS01ATEX7005 or
any other barrier that conforms to Note 4 of ATX009.
Options Ranges, side exit cable, filters,
mounting threads, other cable length,
