Manufacture |
ABB |
|
Model |
CI873AK01 |
| PN No. |
SPHSS13 |
| Catalog | AC 800M |
| Description |
3BSE092695R1 |
| Origin | Sweden |
| HS CODE |
8537101190 |
| Dimension |
5.9*18.5*12.7 (CM) |
| Weight | 0.7 kg |

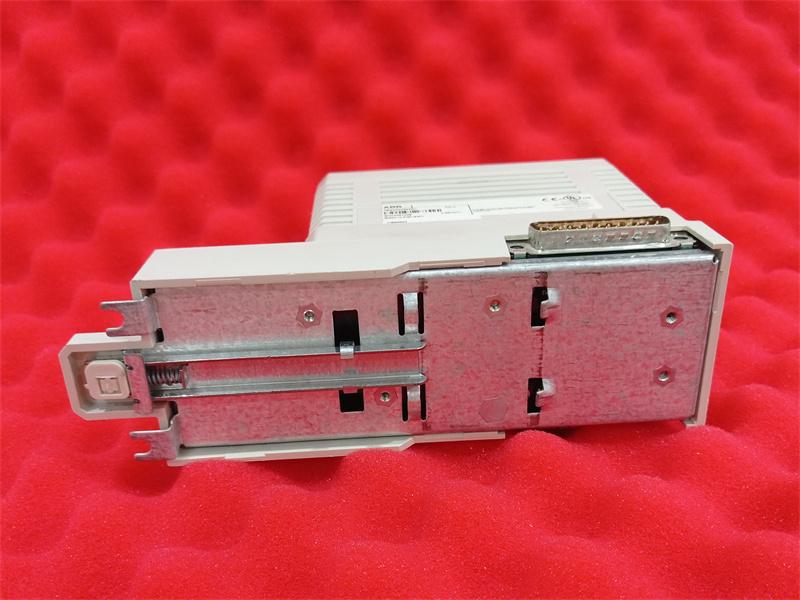

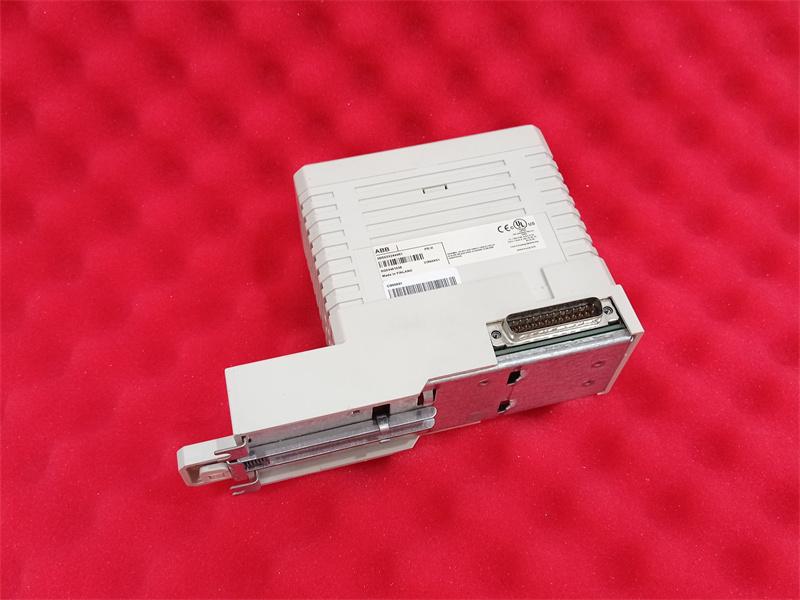

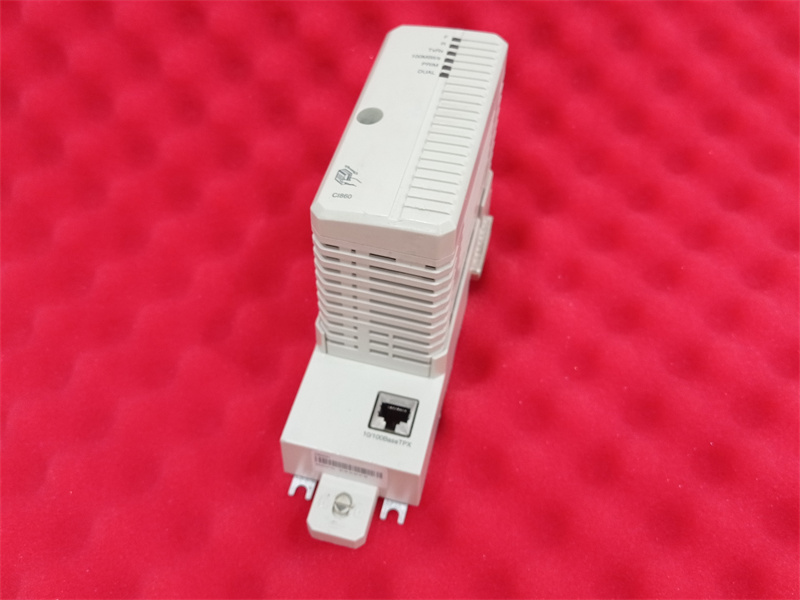

Description:
The CI873A is an AC 800M communication interface that connects to external Ethernet devices using the EtherNet/IP protocol. The TP867 Baseplate has two RJ45 Ethernet connectors, but only the CH1 connector that supports 100Mbps is used. The CI873 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required voltage from +24 V supply through the CEX-Bus.
The CI873A module will only work with System 800xA 6.0.3.3, 6.1.1 and subsequent versions. The CI873A support 6 redundant pairs of CI873A from 5.1 FP4.
Features and benefits
- Supports Ethernet/IP and Device Net protocols
- Support 6 redundant pairs of CI873A from 5.1 FP4
General info
Article number 3BSE092695R1
Communication protocol EtherNet IP / DeviceNet
Master or slave Master
Transmission speed 10/100 Mbit/s
Line redundancy No
Module redundancy Yes
Hot Swap Yes
Used together with HI Controller Yes
Detailed data
Max units on CEX bus 12
Connector RJ-45 female (8-pin)
24 V consumption typ. typ 160 mA
Temperature, Operating 0 to +55 °C (+32 to +131 °F)
Temperature, Storage -40 to +70 °C (-40 to +158 °F)
Altitude 2000 m according to IEC/EN 61131-2
Pollution degree Degree 2 according to IEC/EN 61131-2
Corrosion protection G3 compliant to ISA 71.04
Relative humidity 5 to 95 %, non-condensing
Protection class IP20 according to EN60529, IEC 529
CE- marking Yes
Electrical Safety UL 61010-1, UL 61010-2-201
Hazardous location UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
Marine certificates DNV-GL, (Pending: ABS, BV, LR)
RoHS compliance DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance DIRECTIVE/2012/19/EU
