CP104 Vibration 143-104-000-101 Piezoelectric Pressure Transducer

Item NO.:
CP104
Payment:
T/T
Market Price:
$30000
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.15 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	CP104
PN No.	143-104-000-101
Catalog	NIL
Description	Piezoelectric Pressure Transducer
Origin	Switzerland
HS CODE	85389091
Dimension	26.224.25 (CM)
Weight	0.15 kg

Description:

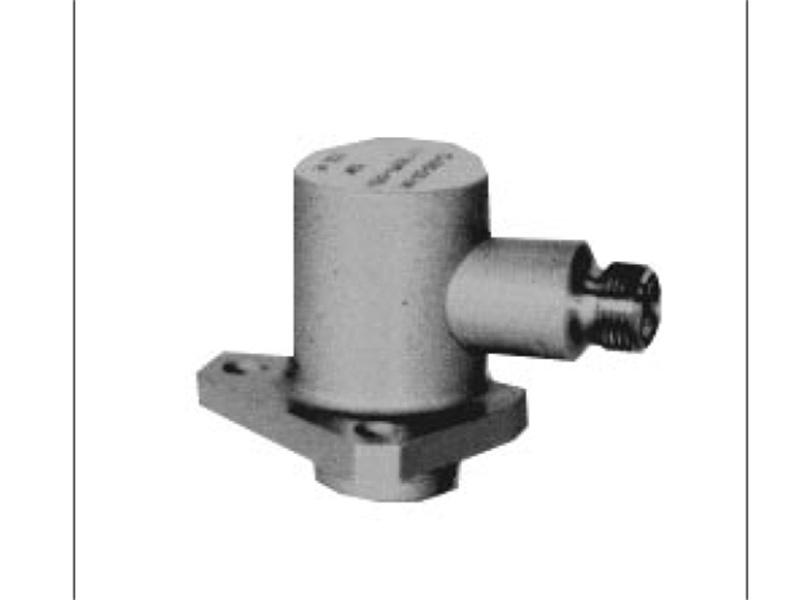

The use of VC2 type single crystal material in the CP 104 compression mode dynamic pressure transducer provides an extremely stable instrument.

The transducer is designed for long-term monitoring or development testing.

The CP 104 pressure transducer may be operated with either softline or hardline cables depending on the required temperature.

FEATURES
- Internal case insulation
- VC2 type crystal element
- Frequency response:
2 Hz to 6000 Hz
- Sensitivity
190 pC/bar
WEIGHT: 150 g

BLOCK DIAGRAM

CP104-101

Ordering Number:

Type	Designation	Ordering number (PNR)

	CP 104 Piezoelectric Pressure Transducer	143-104-000-1

Frequently Asked Questions:
1.What's Frequency response of CP104-101?
2 to 6000 Hz ±5% (lower cutoff frequency is determined by the electronics used)

2.What‘s CALIBRATION of CP104-101?
Dynamic calibration at factory at 1 bar peak and 2 Hz (23°C).No subsequent calibration necessary.
