Manufacture |
Vibration |
|
Model |
PSB960 |
| PN No. |
200-582-960-01X |
|
Catalog |
NIL |
|
Description |
Rear Panel |
| Origin |
Switzerland |
| HS CODE |
85389091 |
| Dimension |
25*18*3 (CM) |
| Weight | 0.4 kg |
Description:

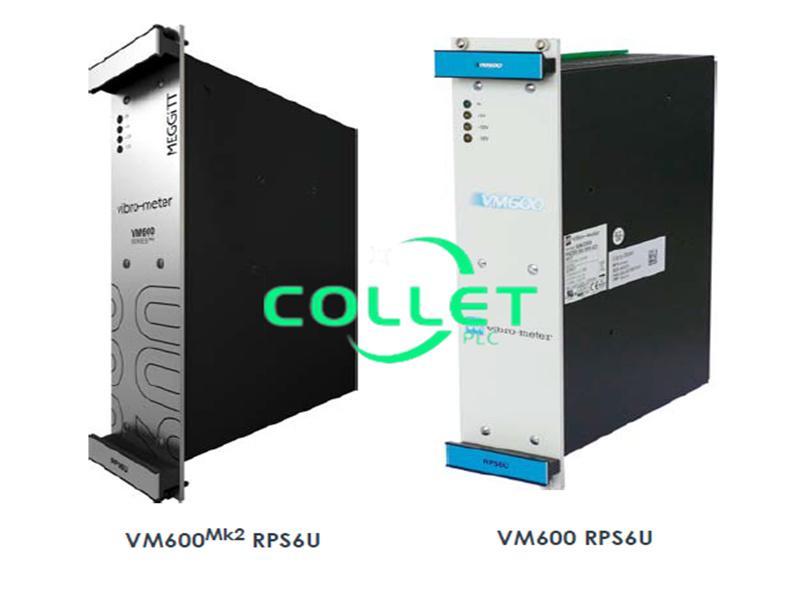

The VM600Mk2/VM600 RPS6U rack power supplies are designed for use in the VM600Mk2/VM600 series of machinery protection systems and condition and performance monitoring systems, from Meggitt’s vibro-meter® product line.
A VM600Mk2/VM600 RPS6U rack power supply is installed in the front of a VM600Mk2/VM600 ABE04x system rack (19″ system racks with a standard height of 6U) and connects via two high-current connectors to the VME bus of the rack’s backplane. The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack’s backplane.
Either one or two VM600Mk2/VM600 RPS6U rack power supplies can be installed in a VM600Mk2/ VM600 ABE04x system rack. A rack with one RPS6U power supply (330 W version) supports the power requirements for a full rack of modules (cards) in applications with operating temperatures up to 50°C (122°F).
Alternatively, a rack can have two RPS6U power supplies installed in order to either support rack power supply redundancy or in order to supply power to the modules (cards) non-redundantly over a wider range of environmental conditions.
A VM600Mk2/VM600 ABE04x system rack with two RPS6U power supplies installed can operate redundantly (that is, with rack power supply redundancy) for a full rack of modules (cards). This means that if one RPS6U fails, the other will provide 100% of the rack’s power requirement so that the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.
Note: This is known as a redundant RPS6U rack power supply configuration.
A VM600Mk2/VM600 ABE04x system rack with two RPS6U power supplies installed can also operate non-redundantly (that is, without rack power supply redundancy). Typically, this is only necessary for a full rack of modules (cards) in applications with operating temperatures above 50°C (122°F), where RPS6U output power derating is required.
Note: Even though two RPS6U rack power supplies are installed in the rack, this is not a redundant RPS6U rack power supply configuration.
The number and type of RPS6U power supplies installed in a VM600Mk2/VM600 ABE04x system rack, together with the number of modules (cards) installed and the environmental conditions, helps determine the mode of operation of the RPS6U power supplies as either redundant or non-redundant. See also Ordering information on page 16.
Different versions of the RPS6U rack power supply enable a VM600Mk2/VM600 ABE04x system rack to be powered using external AC and/or DC mains supplies. All RPS6U power supplies support a wide input voltage range.
A power supply check relay, available on the associated rear panel at the rear of a VM600Mk2/ VM600 ABE04x system rack, is used to indicate that the RPS6U power supplies are operating normally. Refer to the VM600Mk2/VM600 ABE04x system rack data sheet for further information.
In applications where the VM600Mk2/VM600 ABE04x system rack is powered by an AC mains supply, a VM600Mk2/VM600 ASPS auxiliary sensor power supply can also be included in the rack. The ASPS provides +24 VDC outputs which can be used by external sensor/measurement chain hardware such as front-end sensors, signal conditioners and galvanic separation units.
RPS6U rack power supply
AC-input version
DC-input versions
DC-input versions
Designation
RPS6U AC
RPS6U 24 DC
RPS6U 110 DC
Ordering number
200-582-500-12h (VM600Mk2)
or 200-582-500-02h (VM600)
200-582-200-12h (VM600Mk2)
or 200-582-200-02h (VM600)
200-582-600-12h (VM600Mk2)
or 200-582-600-02h (VM600)
Nominal input(line) voltage
115/230 VAC or 220 VDC
24 VDC
110 VDC
Rear panel
F993
Drawing
Designation
Ordering number (PNR)
order option codes
order option codes
VM600SYSMK2
VM600SYS
(a)
One DC input with screw-terminal connector that provides a common input to the RPS6U rack power supplies
200-582-920-NHh
F920
F200
(b)
Two DC inputs with screw-terminal connectors that provide individual inputs to the RPS6U rack power supplies
200-582-993-NHh
F930
(c)
One DC input with screw-terminal connector that provides a common input to the RPS6U rack power supplies.
Also provides a special earth terminal (identified as M.A.L.T.).
200-582-922-NHh
F922
F220
(d)
Two DC inputs with screw-terminal connectors that provide a common input to the RPS6U rack power supplies.
Note: Supports redundant external power-supply systems.
200-582-990-NHh
F990
F900
(e)
One AC input (120/230 VAC) with mains socket, on/off switch, fuse and filter that provides a common input to the RPS6U rack power supplies
200-582-910-NHh
F910
F100
(f)
One AC input (120/230 VAC) with screw-terminal connector, on/off switch, fuse and filter that provides a common input to the RPS6U rack power supplies
200-582-911-NHh
F911
F110
(g)
One AC input (120/230 VAC) with screw-terminal connector, fuse and filter that provides a common input to the RPS6U rack power supplies
200-582-912-NHh
F912
F120
(h)
Two AC inputs (120 VAC only) with mains sockets, on/off switches, fuses and filters that provide a common input to the RPS6U rack power supplies.
Note: Supports redundant external power-supply systems.
200-582-962-NHh
F962
F620
(i)
Two AC inputs (120/230 VAC) with mains sockets, on/off switches, fuses and filters that provide individual inputs to the RPS6U rack power supplies
200-582-963-NHh
F963
F630
(j)
Two AC inputs (230 VAC only) with mains sockets, on/off switches, fuses and filters that provide a common input to the RPS6U rack power supplies.
Note: Supports redundant external power-supply systems.
200-582-960-NHh
F960
F600
(k)
Two AC inputs (120/230 VAC) with screw-terminal connectors, on/off switches, fuses and filters that provide individual inputs to the RPS6U rack power supplies
200-582-915-NHh
F915
F150
(l)
Two AC inputs (120/230 VAC) with screw-terminal connectors, fuses and filters that provide individual inputs to the RPS6U rack power supplies
200-582-916-NHh
F916
F160
(m)
One AC input (120/230 VAC) with mains socket, on/off switch, fuse and filter, and one DC input with screw-terminal connector that provide individual inputs to the RPS6U rack power supplies
200-582-970-NHh
F970
F700
Datasheet Link:
RPS6U 200-582-960-011 Rack Power Supplies Rear Panel PDF Datasheet
