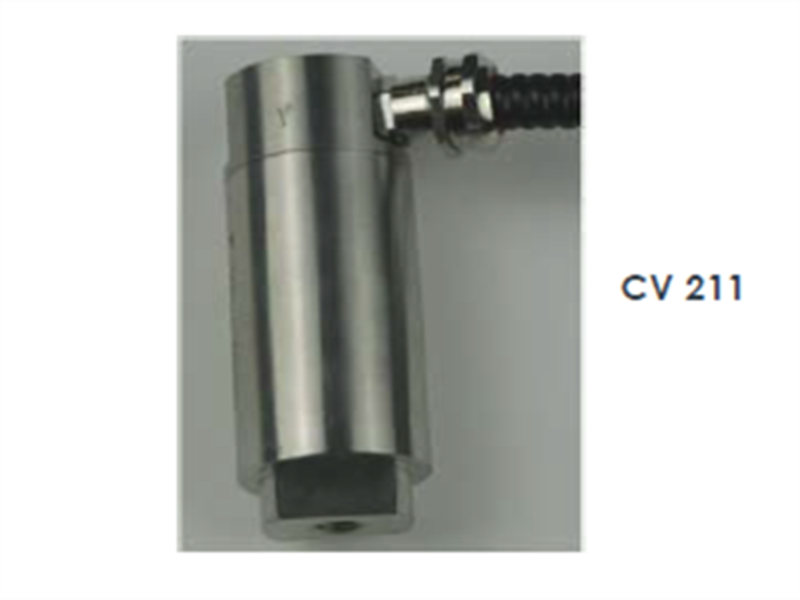

CV211-A0-B1-C3-E000-F0-G000 Vibration Monitoring Velocity Sensor

Description:

The CV 211 velocity sensor from Meggitt's vibro-meter® product line is based on the electrodynamic principle. The sensing element of the sensor is a coil moving around a permanent magnet, which produces a voltage directly proportional to the vibration velocity.

The CV 211 velocity sensor is suited to the special requirements of hydraulic turbomachinery in environments with low speed ranges, between 60 and 1000 rpm.

The usable frequency range is 10 to 1000 Hz, although attention should be paid to the nominal resonant frequency of the measurement system which is at 14 Hz.

The relatively high output signal reduces the additional effort for the signal transmission especially over longer distances.

The CV 211 is a very sensitive vibration sensor with a rugged design that is oil-proof, waterproof and vacuum resistant. A stainless steel case permits use in very harsh industrial environments.

For specific applications, contact with colletplc.com

KEY FEATURES AND BENEFITS

• From the vibro-meter® product line
• Measurement range: 2 mm
• Frequency response: 10 to 1000 Hz
• Temperature range: −65 to 120°C
• Self-generating sensor(no external power supply required)
• Any sensor mounting orientation
• Fully sealed: IP66 protection rating
• Axial or radial cable exit
APPLICATIONS

• Designed for vibration monitoring on low-speed machines
• Suitable for hydraulic and steam turbine applications
