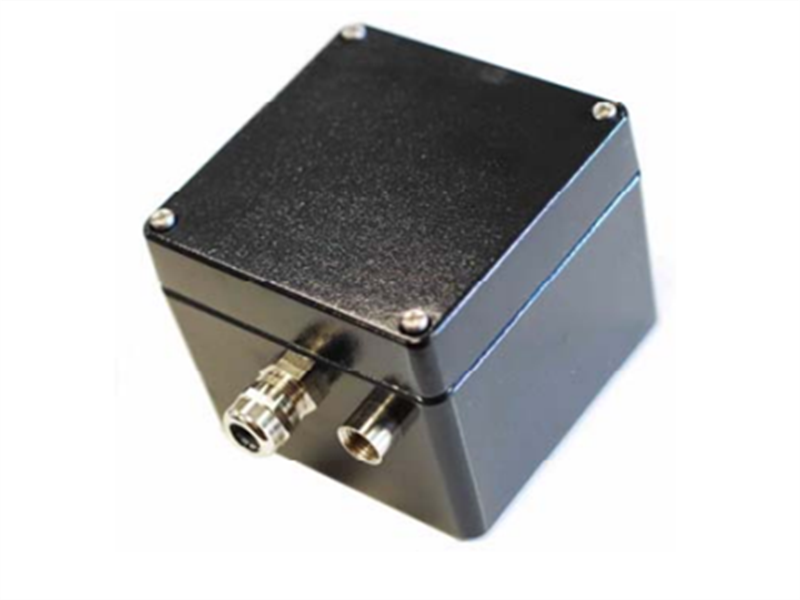

RE101 RE101-022-000 Position Transmitter

RE101 RE101-022-000 one-channel position transmitter RE101

Item NO.:
RE101-022
Payment:
T/T
Market Price:
$2150
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
4
Product weight:
1.3 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	RE101-022
PN No.	VMD-RE101-022-03-19-050
Catalog	NIL
Description	Transmitter
Origin	Switzerland
HS CODE	85389091
Dimension	405.67.5 (CM)
Weight	1.3 kg

Description:

The one-channel position transmitter RE101 measures with the assistance of contactless proximity transducers the relative position of an object. The temperature of the transducer is measured and the temperature error is compensated.

For specific applications, contact with colletplc.com

KEY FEATURES AND BENEFITS

• From the vibro-meter® product line
• For the external mounting of TQxxx proximity sensors
• Ex certified for use in hazardous areas (potentially explosive atmospheres)
• Removable housing, with a U-shaped retainer, that allows easier probe (sensor) installation and gap adjustment
• Sealed die-cast polyester housing
• Stainless steel rod available in lengths from 50 to 800 mm, with mounting position adjustable to ±10 mm
• Range of adaptor threads and lengths
• Choice of cable fittings (stuffing glands)
APPLICATIONS

• For use with TQxxx proximity measurement chains/systems
• Allows easier probe (sensor) installation and gap adjustment
• Ex applications

RELATED PRODUCTS

PA 151 800-151-000-011-B1-C172-D3-E015-F03

PA 151 800-151-000-011-B1-C190-D3-E015-F03

PA 151 800-151-000-111-B1-C240-D3-E015-F03

PA 151 800-151-000-111-B1-C070-D3-E105-F03

PA 151 800-151-000-011-B1-C290-D3-E015-F04

TQ902/TQ912, EA902 and IQS900

TQ402/TQ412, EA402 and IQS450

Frequently Asked Questions:

1.What's material of RE101 RE101-022-000?

Polyester reinforced with glass fibre
