Manufacture |
ABB |
|
Model |
DCP10 |
| PN No. |
DCP-10 |
|
Catalog |
Controller |
|
Description |

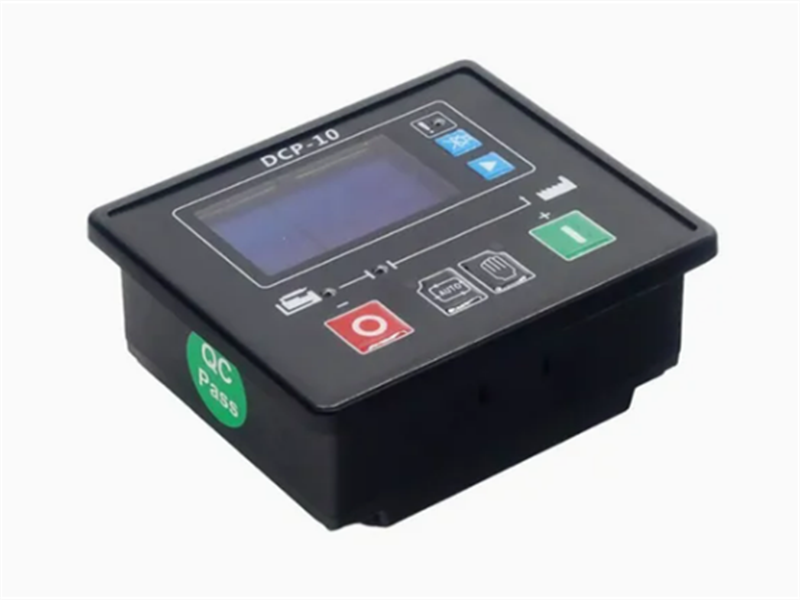

Generator Controller Auto Start Control Module |
| Origin | Sweden/Malta/India |
| HS CODE |
85389081 |
| Dimension |
22.9*5.1*2.5(CM) |
| Weight | 1.8 kg |
Description:
The ABB DCP10 is the central processing unit for ABB's Freelance 2000 PLC system.When running in "AUTO" mode, it starts theGenset after receiving remote start signal and on failure automatically stops the Genset. Thegenerator's controlling procedure and protection parameters can be modified, which fully meets theGenset's requirements of automatic start, stop control and basic protection.It efficiently handles controlprograms,ensuring reliable automation for industrial applications. This module supports various communicationprotocols and I/0 modules, offering flexible integration with your automation setup.
Parameters:
Model NO:DCP-10
Memory:8MB
Input/Output Channels: Supports multiple digital and analog I/0 modules.
Communication Protocols: Ethernet, Profibus, and Modbus.
Operating Temperature Range: -20C to 60C.
Input Power: DC8V~36V
Rated Current: 16A
- Real-time monitoring
Track voltage, frequency, current, power, engine RPM, oil pressure, coolant temperature, fuel level, battery voltage, and run hours.
- Alarms and protection
Configure warnings and trips for over/under voltage and frequency, overcurrent, phase loss/sequence, overspeed, low oil pressure, high engine temperature, low fuel, low battery, and emergency stop.
- Scheduling
Automate exercise runs and maintenance reminders to improve reliability and extend equipment life.
- Load transfer support
Monitor mains and generator sources and coordinate warm-up and cool-down for smooth transfer when used with a compatible ATS.
- Configuration tools
Customize setpoints, I/O mappings, and permissions; back up and restore site configurations to streamline deployment.
Datasheet Link:
DCP10 ABB DCP-10 Generator Controller Auto Start Control Module PDF Datasheet
