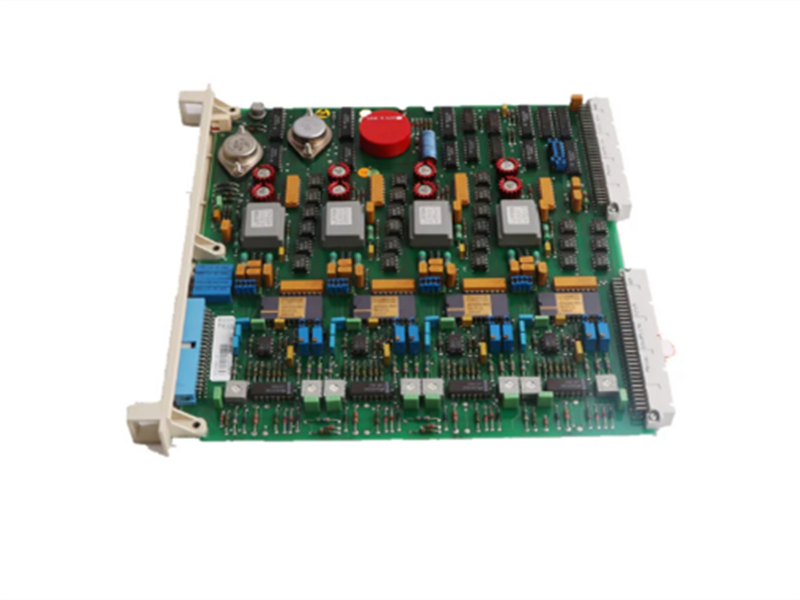

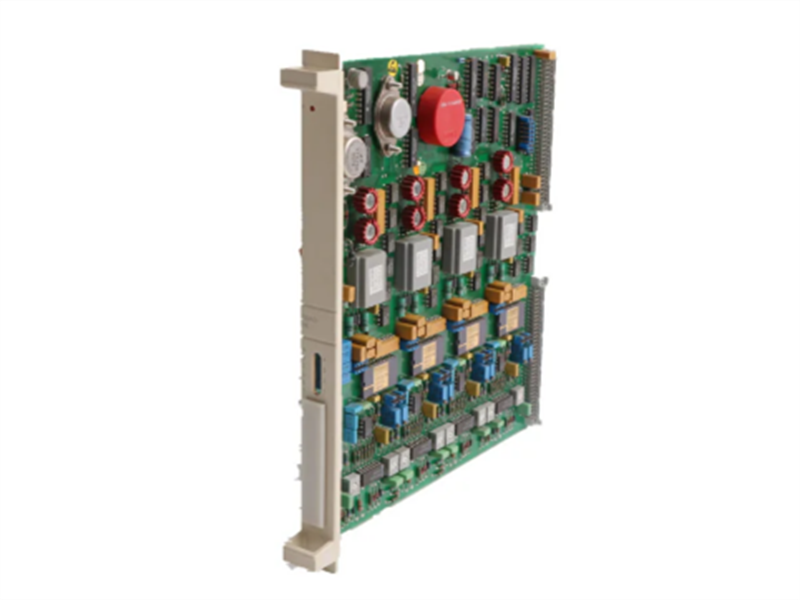

DSAI 130A ABB 3BSE018292R1 Analog Input Board 16 Cannels Module

Description:

The ABB DSAI 130A 38SEe18292R1 analog input board is an electronic device used to convert analog signals into digital signals. It is a 16-channel analog input module designed for integration into ABB automation systems. It acquires analog signals and converts them into digital signals for controller processing. Utilizing advanced analog-to-digital conversion technology, this board provides high-precision, high-reliability signal conversion.

It is primarily used to acquire analog signals from sensors, transmitters, and other devices and convert them into digital signals for PLC processing. Due to its high accuracy, high reliability, and ease of configuration, this module is widely used in various industrial automation fields.

Specifications:
Number of Channels: 16 channels
Input Type: Single-ended or differential
Input Range: -10 V to +10 V
Resolution: 16-bit
Accuracy: ±0.1%
Update Rate: 1000 Hz
Isolation: Channel-to-channel isolation, each channel isolated from ground
Operating Temperature: -40 to 85 °C (-40 to 185 °F)
Storage Temperature: -40 to 85 °C (-40 to 185 °F)
Humidity: 5% to 95% non-condensing
Protection Rating: IP65

FEATURES:

• High versatility

Supports both single-ended and differential input types.

• High reliability

Employs advanced analog-to-digital conversion technology and high-quality materials to ensure reliable performance.

• Ease of use

Provides simple installation and maintenance.

• 16-channel analog input

Offers 16 independent analog input channels, allowing simultaneous acquisition of multiple analog signals.

• High precision

Offers high sampling accuracy, enabling accurate acquisition of analog signals.

• Multiple input ranges

Supports multiple input signal ranges, such as 0-10V, 0-5V, 4-20mA, etc., providing strong adaptability.

• Isolation design

Each channel has isolation protection, improving the system's anti-interference capability.

• Flexible configuration

Input range, filtering, and other parameters can be flexibly set through software configuration.
