Manufacture |
ABB |
|
Model |
DO821 |
| PN No. |
3BSE013250R1 |
|
Catalog |
S800 |
|
Description |
Relay (NC) Output Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
12*10*4.5 (CM) |
| Weight | 0.23 kg |
Description:

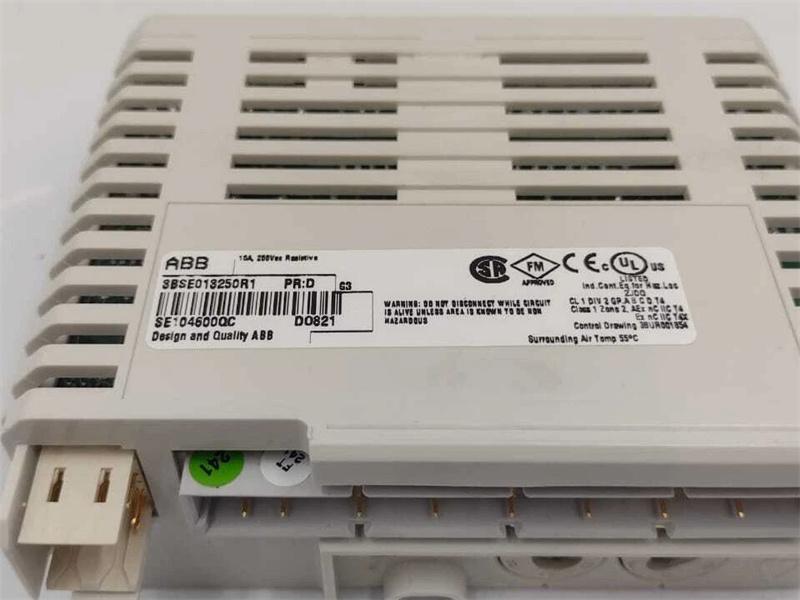

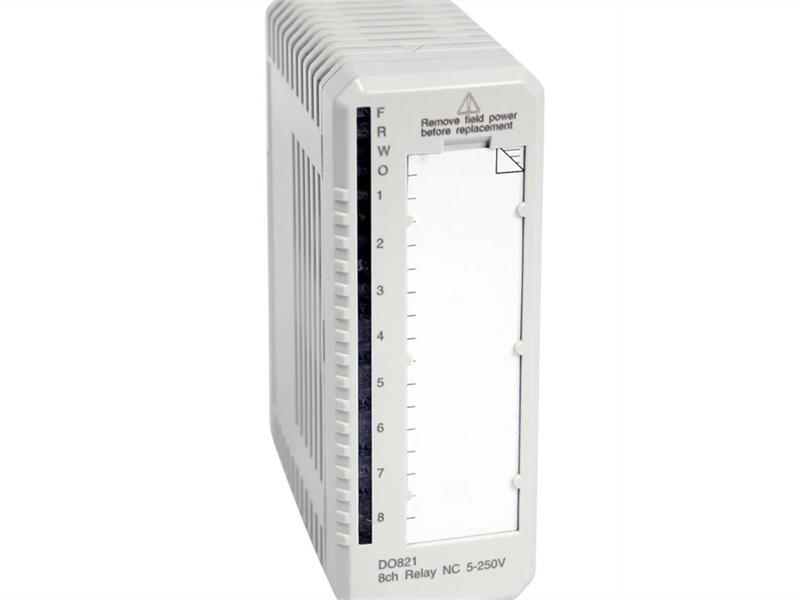

The DO821 is an 8 channel 230 V a.c./d.c. relay (NC) output module for the S800 I/O. The maximum output voltage is 250 V a.c. and the maximum continuous output current is 3 A. All outputs are individually isolated. Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components. The relay supply voltage supervision, derived from the 24 V distributed on the ModuleBus, gives an error signal if the voltage disappears, and the Warning LED turns on. The error signal can be read via the ModuleBus. This supervision can be enabled/disabled with a parameter.
Features and benefits
MTUs that match this product:
TU811V1
TU813
TU831V1
TU836V1
TU837V1
Frequently Asked Questions:
1.What are Detailed data of TB820V2?
Individually isolated, channel-to-channel and to circuit common
2.What is Temperature, Storage of TB820V2?
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
sheet Link:
DO821 ABB 3BSE013250R1 Relay (NC) Output Module PDF Datasheet
