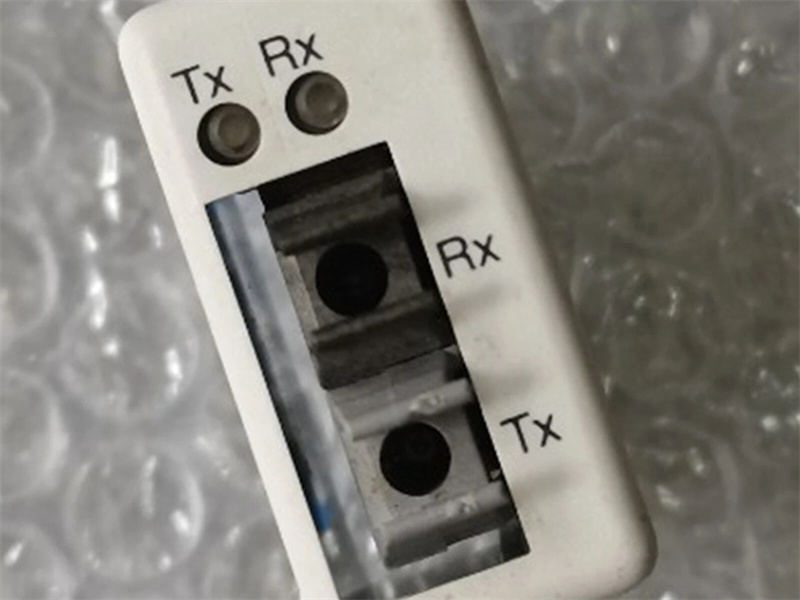

Manufacture |
ABB |
|
Model |
TB810 |
| PN No. |
3BSE008560R1 |
|
Catalog |
S800 |
|
Description |
Modulebus Optical Port |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
17*12.2*5.8 (CM) |
| Weight | 0.3 kg |
Description:
ModuleBus Optical port with 10 Mbit driver for ModuleBus Optical expansion used together with S800I/O and Drive equipment Option to the communication interface. Used together with CI810 and CI820.
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The TB820V2 ModuleBus Modem is a fiber optic interface to the ModuleBus. The ModuleBus Modem has an electric and an optical interface which are logically the same bus. A maximum of 12 I/O modules can be connected to the electrical ModuleBus and up to seven clusters can be connected to the fiber optic ModuleBus. The fiber optic interface is intended for local distribution of I/O clusters and where more than 12I/O modules are required in an I/O station.
Frequently Asked Questions:
1.What are Detailed data of TB810?
24 V consumption typ. 100 mA
2.What is Temperature, Storage of TB810?
-40 to +70 °C (-40 to +158 °F)
Datasheet Link:
TB810 ABB 3BSE008560R1 Modulebus Optical Port PDF Datasheet
