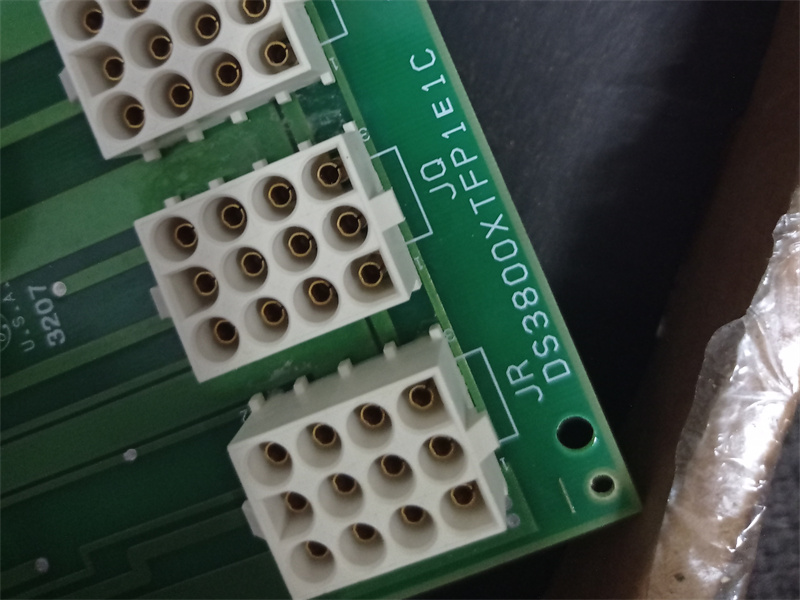

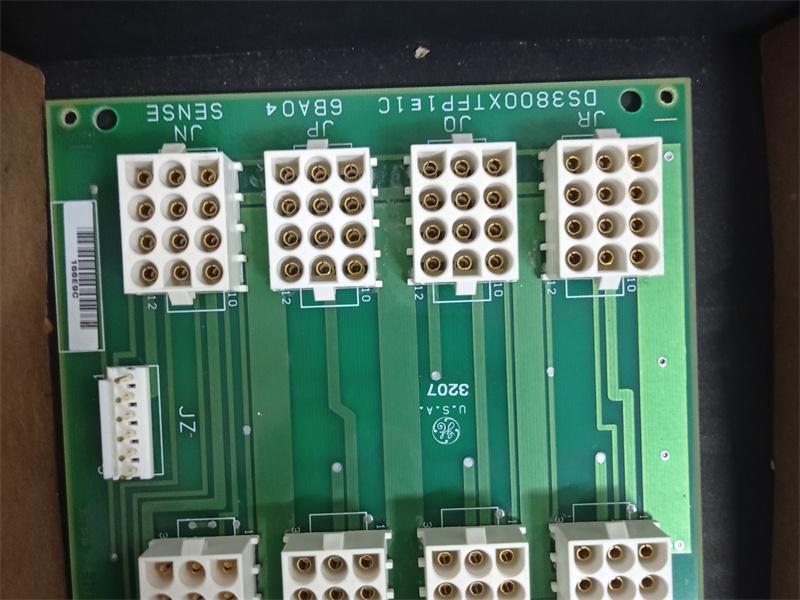

DS3800XTFP1E1C GE Mark IV Adapter & Distribution Card

Description:

The Core Analog I/O for Aero-derivative gas turbines (PCLA) and associated Core Analog (SCLS and SCLT) terminal boards provide a large portion of the analog signal I/O required to operate an engine. PCLA and SCLT provide thermocouple inputs, RTD inputs, voltage inputs, and 4-20 mA current loop inputs and outputs. PCLA can be applied in simplex controller simplex I/O, dual controller simplex I/O, dual controller TMR I/O and TMR controller TMR I/O control systems. A single SCLT terminal board fans signal inputs to one or three connected PCLA(s).

PCLA provides the electrical interface between one or two Ethernet I/O networks and the terminal board. It contains a processor board common to all Mark VIe distributed I/O. Input to the PCLA module is through dual RJ-45 Ethernet connectors and a 28 V dc power connector P1.

Field device I/O is connected through 72 Euro-style box terminals on the SCLS edge and is connected through 48 Euro-style box terminals on the SCLT edge. Connection to SCLS is through 96-pin J3 and 48-pin J4 connectors on SCLS. The connection between SCLS and SCLT is through one 68-pin cable on the J2 connector on SCLS, and the JR/JS/JT connector on SCLT.

Frequently Asked Questions:

1.What is the DS3800XTFP1E1C?
It is the MKIV Adapter & Distribution Card by General Electric (GE).

2.How To install the VME Board DS3800XTFP1E1C?
Directly plug the XTFP into the terminal board connectors J3 and J4.

Datasheet Link:

DS3800XTFP1E1C GE Mark IV Adapter & Distribution Card PDF Datasheet
