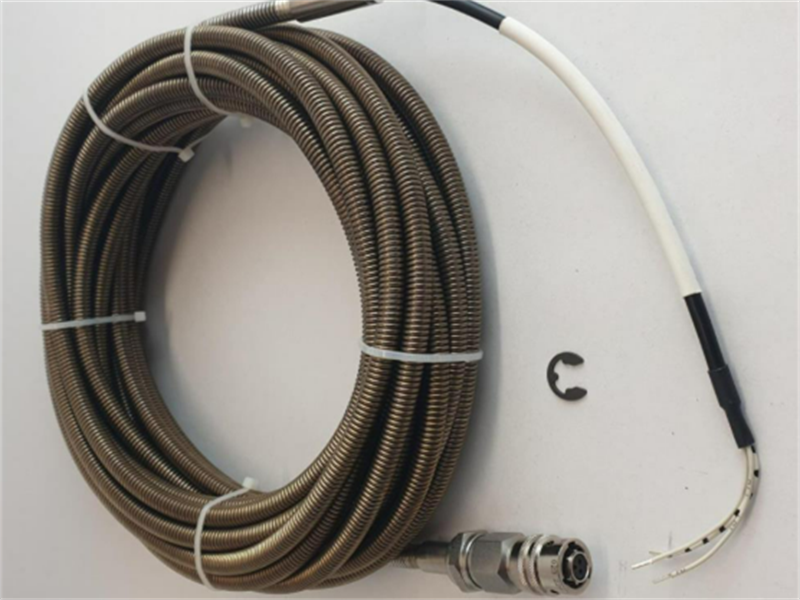

EC175 922-175-000-104 Vibration cable assembly

Description:

The Meggitt Sensing Systems 922-175-000-104 is a Meggitt / Vibro-meter EC175 cable assembly designed for vibration measurement systems (CE134/CE281). It features a 2-wire shielded K219 RADOX cable with a flexible protection hose, suitable for high-temperature and hazardous environments. It connects via a bayonet or threaded connector to flying leads.

SPECIFICATIONS:

Dynamic measurement range: 0.001 to 400 g PEAK.
Linearity : ≤1% over dynamic measurement range
Transverse sensitivity(measured with 5 g at 15 Hz) : ≤5%
Temperature range

• Sensor head : −55 to 350°C (−67 to 662°F), temperature zone A
• Cable/flexible stainless-steel hose(protection tube):−55 to 260°C (−67 to 500°F), temperature zone B
• Attached electronics(signal conditioner):−40 to 125°C (−40 to 257°F) for continuous operation and −55 to 130°C (−67 to 266°F) for short-term survival,temperature zone C

• High-quality, reliable cable assembly for CE134 and CE281 vibration measurement systems
• K219 cable with RADOX® outer sheath (Ø4.8 mm)
• Flexible leaktight protection hose (Ø8.7 mm) with junction box adaptor (Ø11 mm)

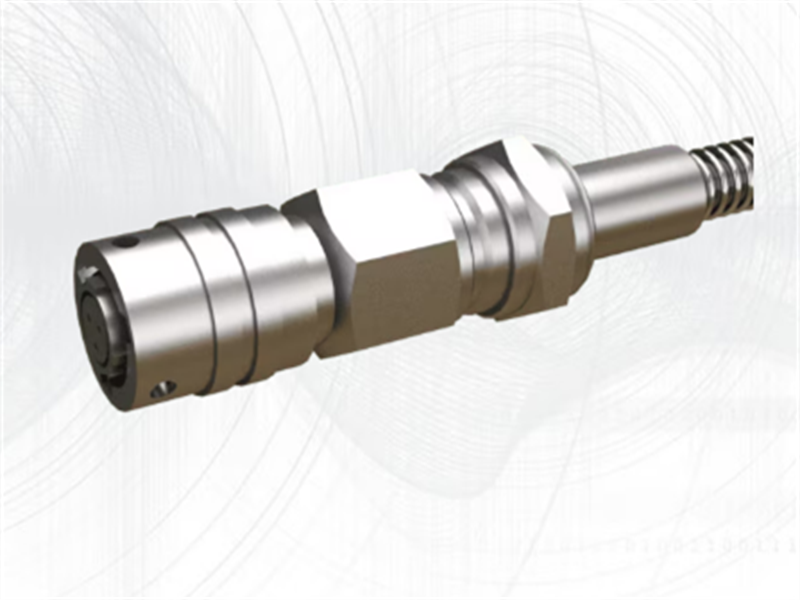

• Bayonet connector (CG134, aluminium) or threaded connector (CG134, stainless steel) to flying leads
• 2-wire with shield
