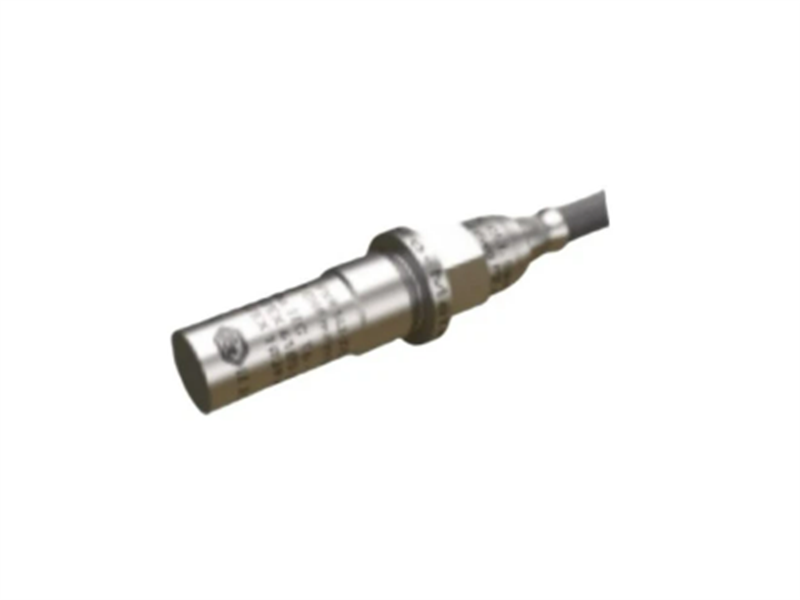

CP515 143-515-000-111 Dynamic Pressure Fluctuation Sensor

Description:

The CP515 143-515-000-111 is a high-quality, high-reliability dynamic pressure sensor whose piezoelectric sensing element provides a charge output. An external charge amplifier (IPC707 signal conditioner) is required to convert this charge signal into a current or voltage signal. The CP515 143-515-000-111 is designed and manufactured for long-term use in extreme environments, such as high temperatures and/or hazardous areas (potentially explosive gas atmospheres).

Parameters:

Product Model: CP515 143-515-000-111
Nonlinearity and Hysteresis: ≤ 0.3% FS
Rise Time (High Frequency Model): < 10 µs
Electrical Interface: Aviation plug, M12 or DIN connector
Port/Thread Type: G¼ / ½ NPT, M12×1.5, M20×1.5, etc.

Features:

• Designed for long-term measurement of pressure pulsations in extreme environments such as gas turbine combustors.
• Extremely high operating temperature: Up to 700 °C.
• Extremely high frequency response: Up to 10000 Hz.
• High sensitivity: >120 pC/bar.
• Available in various lengths with integral mineral-insulated (MI) cable, terminated with either a high-temperature connector or a LEMO connector.
• Certified for use in potentially explosive atmospheres (Ex).
